AL625 Page 14
REV: 1-24-12
STEP 7
MOUNTING THE PLATFORM ASSEMBLY TO THE TROLLEY ASSEMBLY

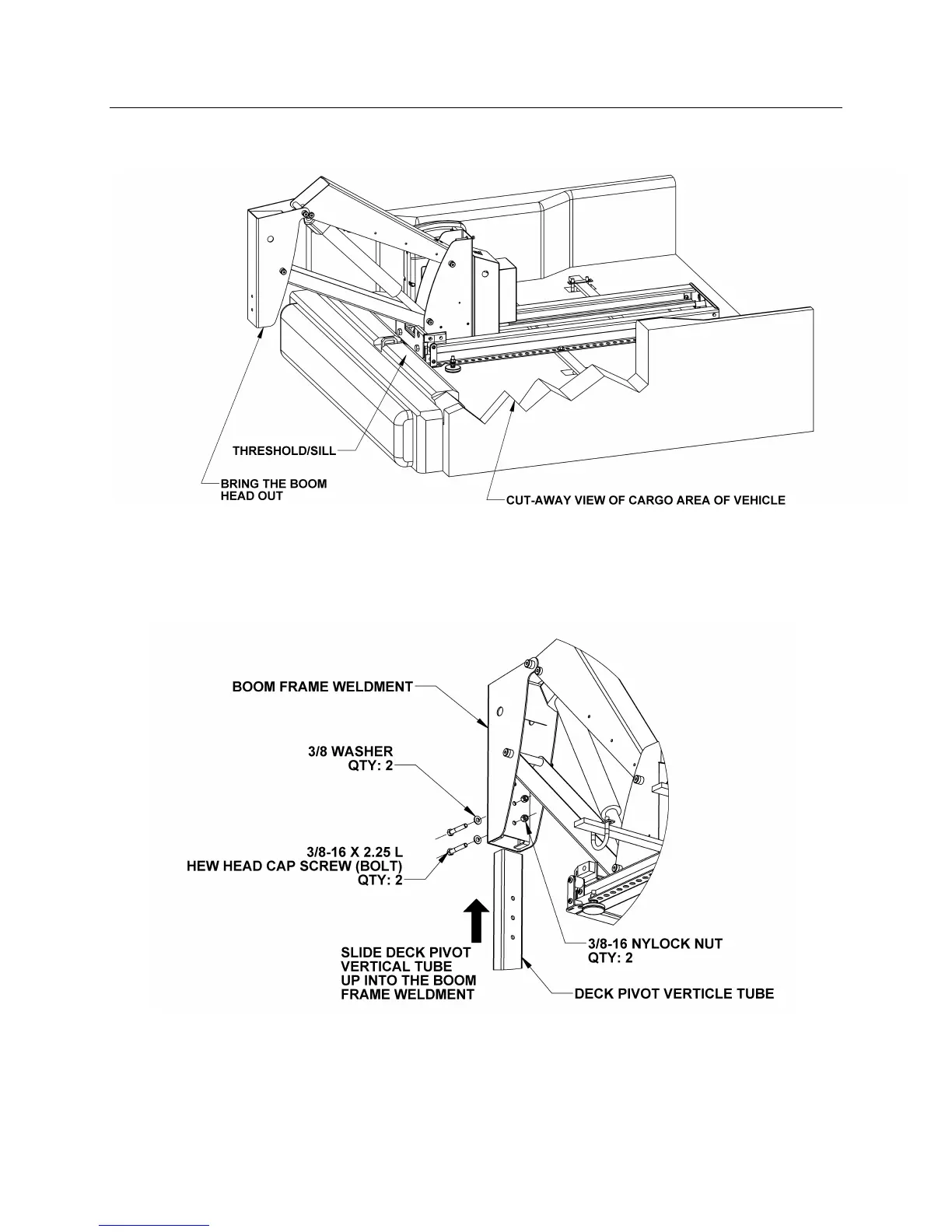

Using the pendant to control the lift, press “OUT” to move the lift out & down to the position shown.
With the help of an assistant – Lift the platform assembly sliding the deck pivot vertical tube into the slot on the
boom head on the trolley assembly.
Use the 2 lower holes on the Vertical Tube. Insert the 3/8-16 Hex Head Cap
Screws (Bolts) and washers; tighten the 3/8-16 nyloc nuts to hold the tube in place.
