AL625 Page 18
REV: 1-24-12
STEP 11
CONFIRMING HOME POSITION AND LOCKING PIN ALIGNMENT
The Tracker is in its home position when the horizontal motion is completed. The movement stops when the stop
rod (mentioned in Step 11) contacts the back end of the trolley assembly, and activates a limit switch.

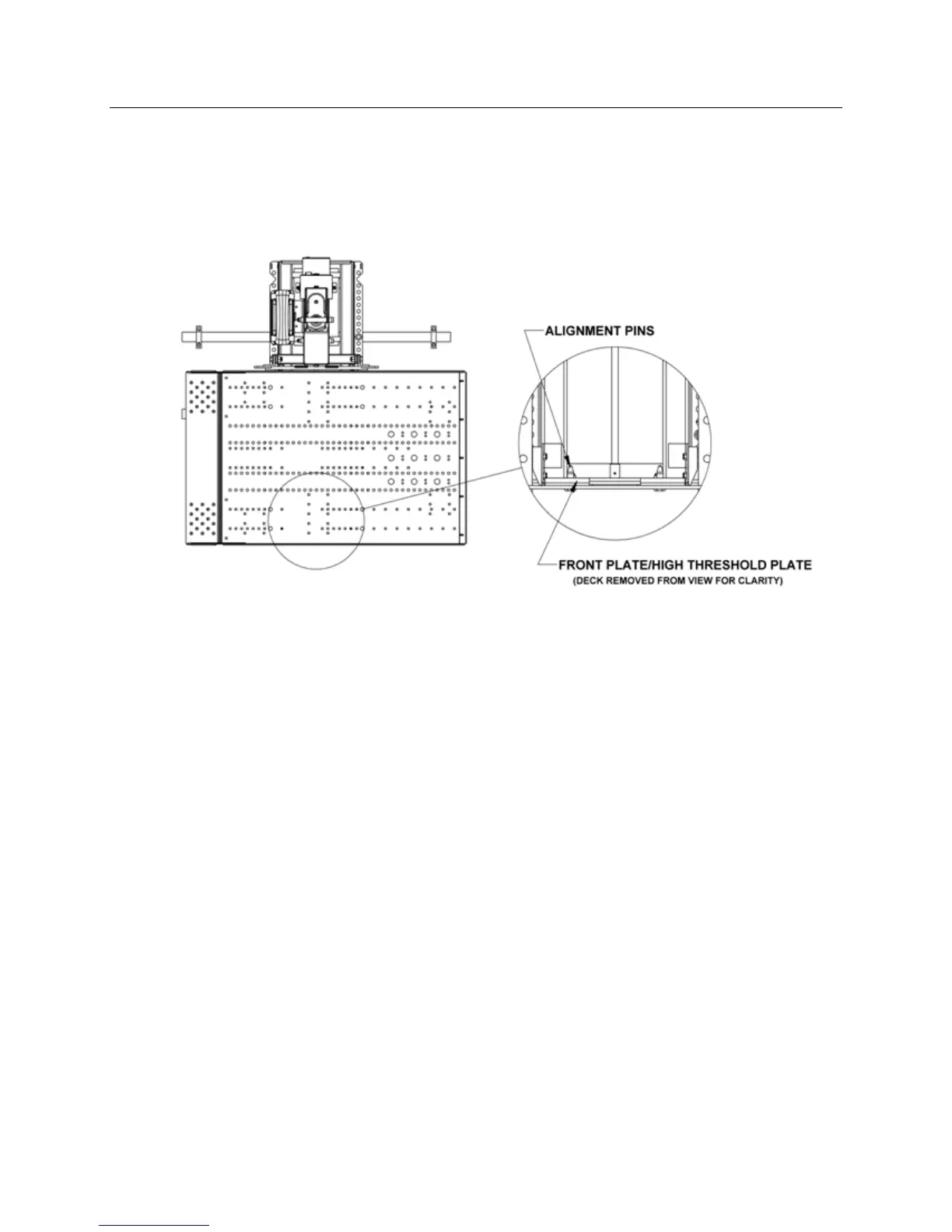

When the Tracker is in its home position, it is important that the alignment pins are captured in the holes in the front
plate/high threshold plate (see figure below)
If the pins are not captured in the holes, adjust the angle of the platform (Step 12) Make certain you adjust the
angle of the platform with the load (power chair/scooter) on.
WARNING: THE ALIGNMENT PINS SECURE THE PLATFORM, AND TOGETHER
WITH THE STRAPS, SECURE THE POWER CHAIR/SCOOTER TO THE TROLLEY
ASSEMBLY DURING TRANSPORT. AN UNSECURED POWER CHAIR/SCOOTER
CAN CAUSE SERIOUS INJURIES.
