Harmar Mobility AL625 - Step 8 Check Clearances Without Load; Step 8

AL625 Page 15
REV: 1-24-12
STEP 8
CHECK CLEARANCES WITHOUT LOAD

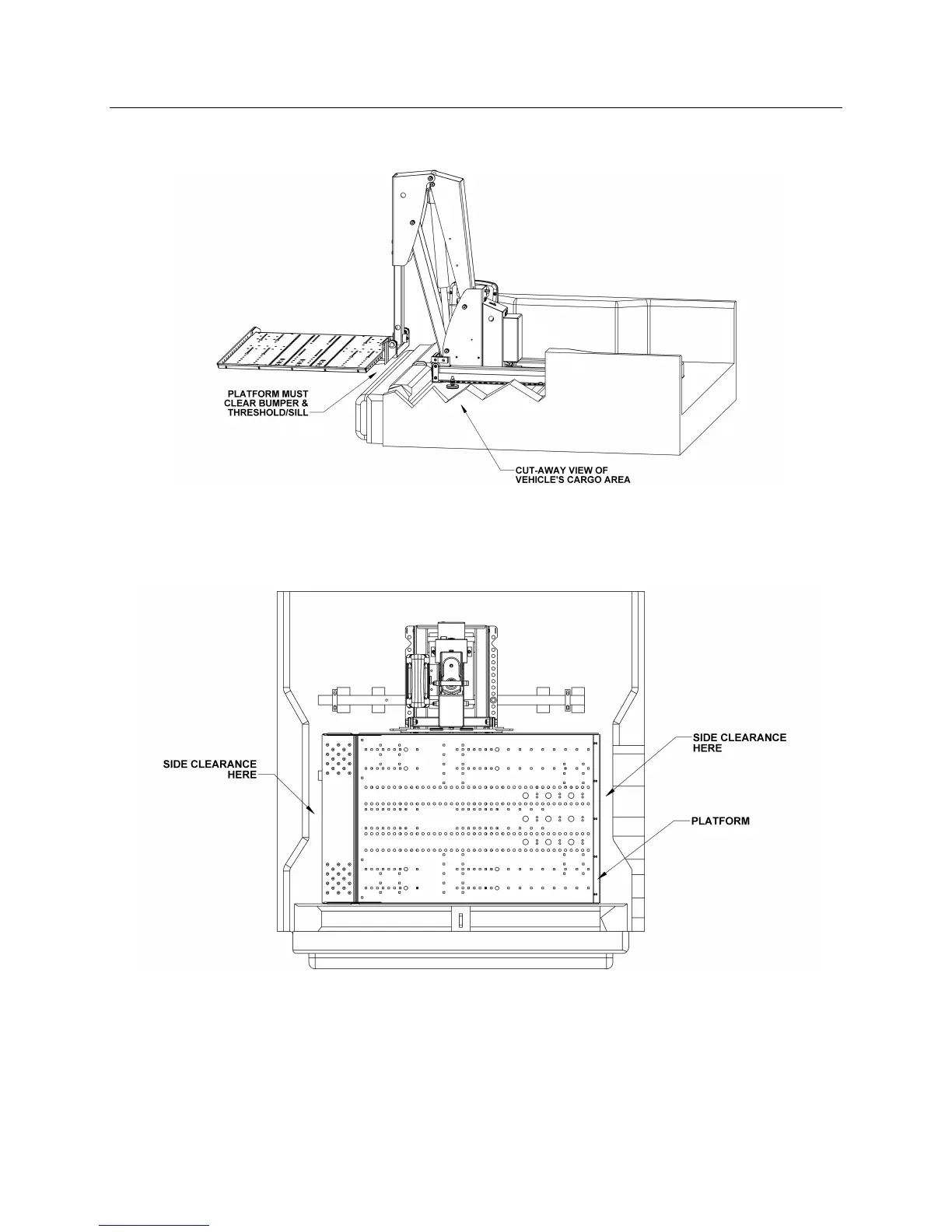

Operate the Tracker without a load and check the clearance of the platform over the bumper and threshold of the
vehicle.
Check the side-to-side clearances. To adjust the side-to-side distance, loosen the 3/8 nuts on the U-bolts and slide
the trolley assembly & mounting bars to one side or the other.
