AL625 Page 20
REV: 1-24-12

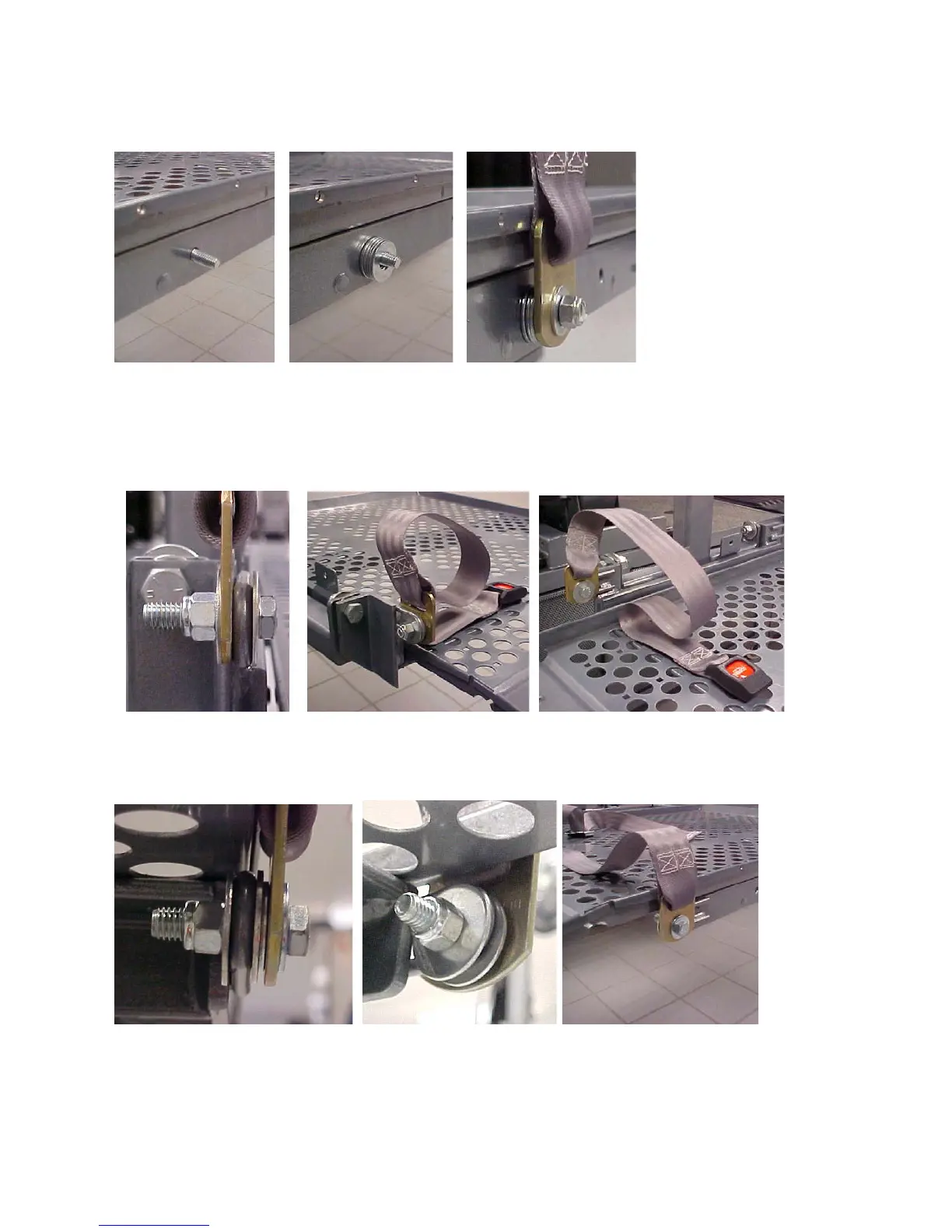

Installing the side towards the outside of the vehicle. Use the 5/16 – 18 x 1.25” flat head screw, five 5/16 SAE flat
washers (to space the strap away from the deck), another 5/16 SAE flat washer and finally a 5/16 – 18 nylon insert
lock nut to secure the metal plate of the buckle side of the strap as shown.
Installing Straps off to the side in the Loop Positions
Installing the loop, on the side near the trolley assembly. Use 3/8 – 16 x 1.5” Hex Cap Screw, 3/8 – 16 nylon insert
lock nut, and two 3/8 x 1.25 fender washers, as shown below:
Installing the side towards the outside of the vehicle. Use the 3/8 – 16 x 1.5” Hex cap screw, two 3/8 SAE flat
washers, two 3/8 x 1.25 fender washers, and a 3/8 – 16 nylon insert lock nut to secure the metal plate of the latch
plate to the loop as shown below: The fender washers must contact the loop.
