HIGHLANDER II VERTICAL PLATFORM LIFTS: Install Manual
17FEB2021 | 630-00113 REV C
10
PREPARATION
HIGHLANDER II: SECTION 3
BOX CONTENT
Inspect all of the boxes for damage or missing parts.
If you see any damage contact the freight carrier to
file a damage claim and contact Harmar.
Verify the products match those described on the
packing list attached to the exterior packaging. If
items are missing or are incorrect, contact Harmar.
REQUIRED COMPONENTS
NOT SUPPLIED
NOTE: We recommend electrical supply to be installed by
an electrician, per the NFPA 70.
• 2-Pole Fused and Lockable Disconnect.
SquareD D21N for undoor applications (NEMA
1). SquareD D21NRB for outdoor applications
(NEMA 3R)
• Wire, Conduit and Disconnect to meet NFPA
70 code
• Dedicated Electrical Lead (per local code)
UNLOADING

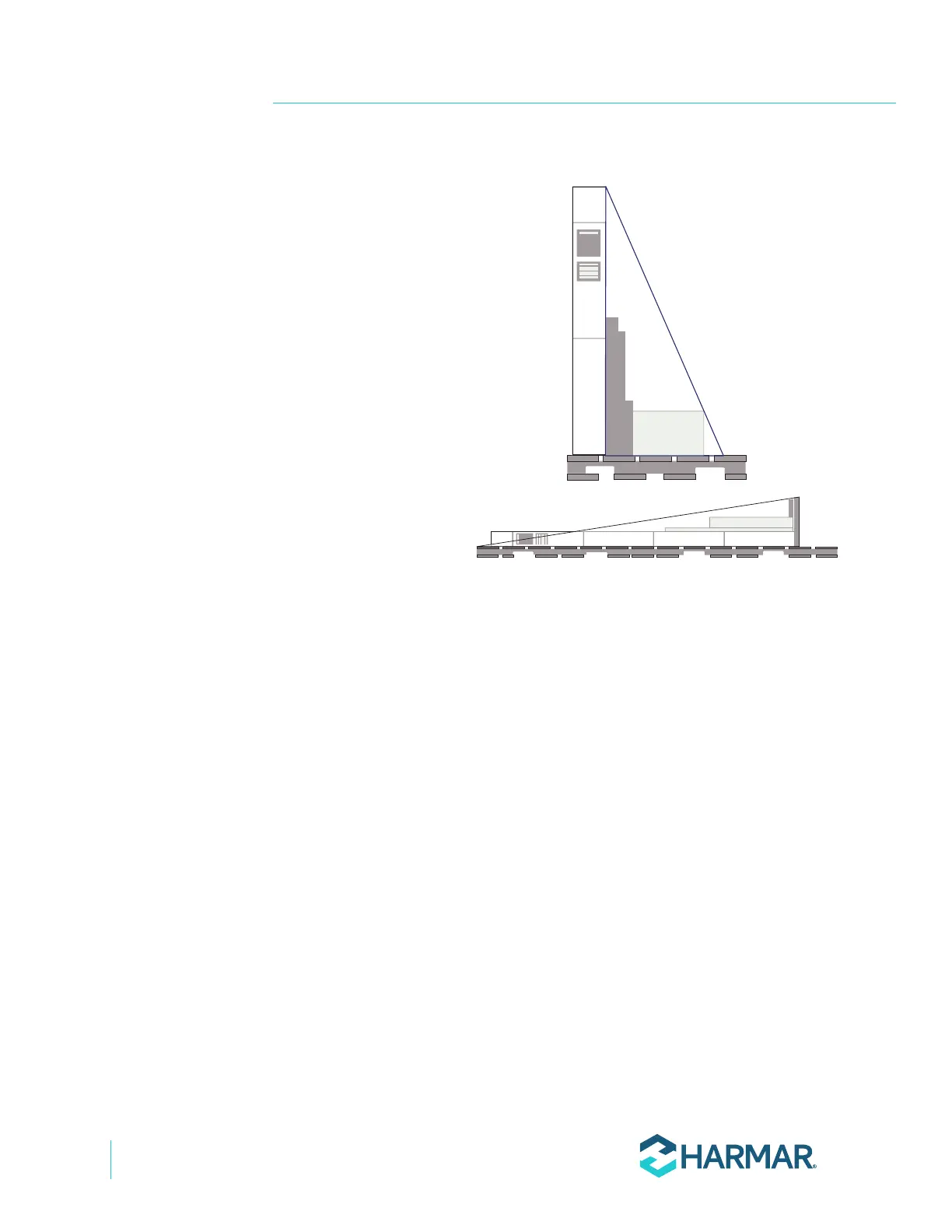

• The 4' VPL is shipped standing up shrink
wrapped to a pallet. The pallet dimensions
are 48" x 48" x 83". Units are screwed into
" wrench
socket to remove screws.
A lift gate is unable to be used on models 6' or
taller which are shipped laying back. A pallet jack or
forklift can be used to set into place.
Note: Must have a loading dock, pick up the VPL at the
shipping terminal, or ship it directly to the installation site.
This information must be documented on the evaluation
form.
VPL’s weigh between 800 - 1500 lb, depending on
the height. The following may be necessary to assist
in positioning:
• Additional Manpower
• Fork Lift
• Crane
• Pallet Jack
• Lever Bar Dolly
UNPACKING
1. Unwrap the VPL and set the following items
aside:
• Small Parts Box
• Ramp (if provided)
• Platform Panels
• Platform
• Gates
2. Remove the tower from the pallet.
3. Perform pre-delivery inspection
To Next Page
