Harmar Mobility HIGHLANDER II - KEY INTERNAL VERTICAL PLATFORM LIFT ELEMENTS

HIGHLANDER II VERTICAL PLATFORM LIFTS: Install Manual
17FEB2021 | 630-00113 REV C
8
INTRODUCTION
HIGHLANDER II: SECTION 2

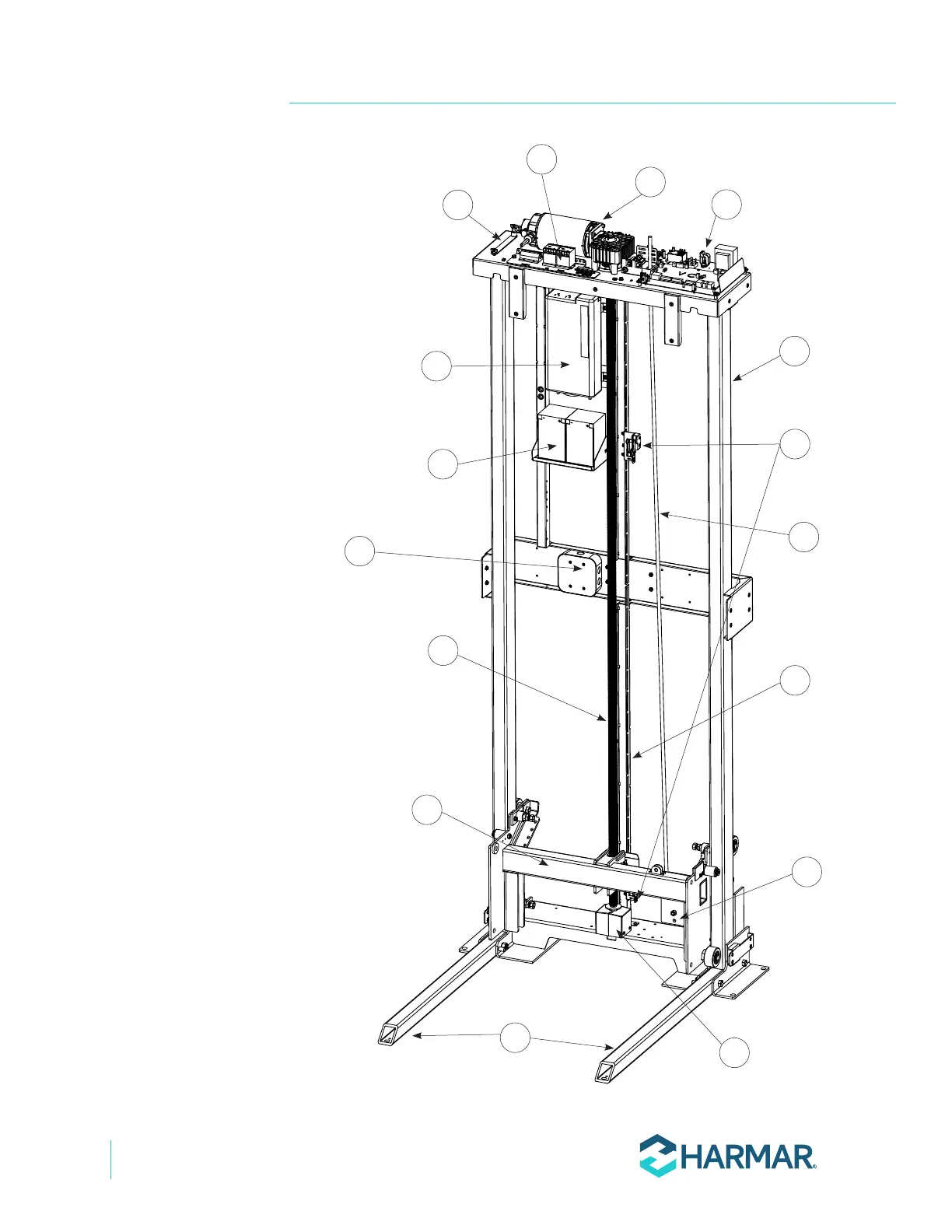

KEY INTERNAL VERTICAL
PLATFORM LIFT ELEMENTS
1. Manual Lowering Tool
2. Motor / Gearbox
3. ACME Screw
4. Batteries (if supplied)
5. Battery Charger and assembly (tray)
(if supplied) (not shown)
6. Inverter (if supplied)
7. Control Electronics Assembly
8. Upper / Lower / Lower
Final Limit Switches
9. Tower Frame
10. Tower Legs
11. Wire Channel
12. Over-Speed Safety Assembly
13. Motor Contactors
14. Carriage
15. Trailing Cable
16. Cable Tensioning Pulley
17. Junction Box
(Main Power Supply Hookup)
1
13
2
7
9
8
15
11
6
4
17
3
14
10
12
16
