Harmar Mobility HIGHLANDER II - TROUBLESHOOTING; STATUS CODES

HIGHLANDER II VERTICAL PLATFORM LIFTS: Install Manual
17FEB2021 | 630-00113 REV C
25
TROUBLESHOOTING
HIGHLANDER II: SECTION 6
SECTION 6
TROUBLESHOOTING
STATUS CODES
This lift has several advanced safety systems
that monitor various sensors, switches and the
performance of the lift. To indicate the status of the

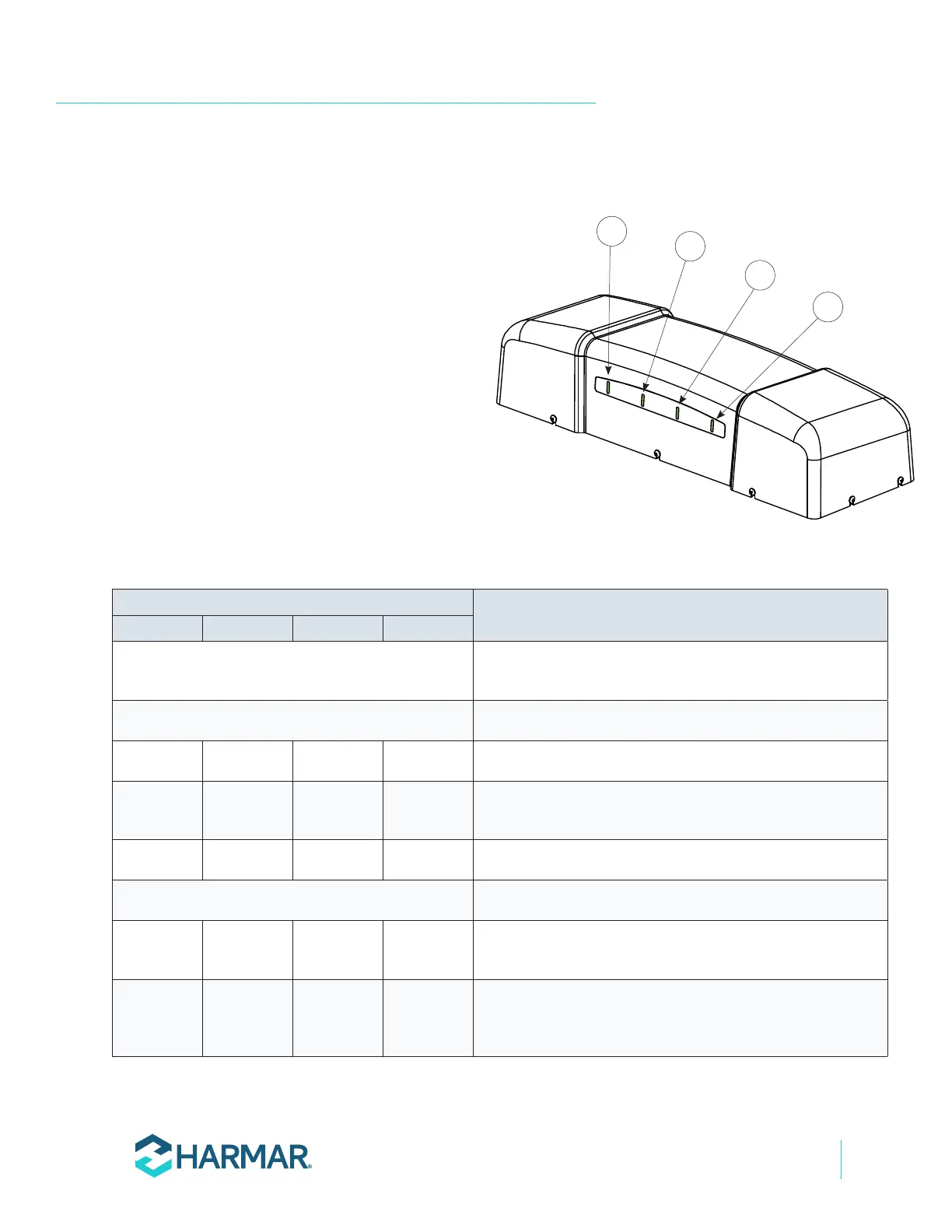

VPL there are 4-LEDs located on the Top Cap of the
tower. The table below explains the status indicated
by the 4-LEDs. LEDs are numbered from left to right,
while facing the tower from the platform side. Color
listed in brackets indicates LED is flashing.
See Figure 6-1.
NOTE: [COLOR] means flashing light.
STATUS LED
STATUS
#1 #2 #3 #4
All OFF
 Major Fault, No Power (and no
battery) or Low Power Mode. Service is Required.
Any Green or [Green]  No faults
Green Green Green Green  Lift is OK to Operate.
[Green] [Green] [Green] [Green]
 Only Authorized Technicians
should Operate.
[Green] [Green] [Green]  Lift is OK to Operate.
Any Amber  Service is Required.
Amber Amber Amber
 Lift
is OK to Operate for at least one full lift cycle.
Amber Amber Amber
 If lift transfers
to backup power it will only operate for at least one full
lift cycle. Service or replace batteries.
1
2
4
3
Figure 6-1
