HIGHLANDER II VERTICAL PLATFORM LIFTS: Install Manual
17FEB2021 | 630-00113 REV C
30
TROUBLESHOOTING
HIGHLANDER II: SECTION 6

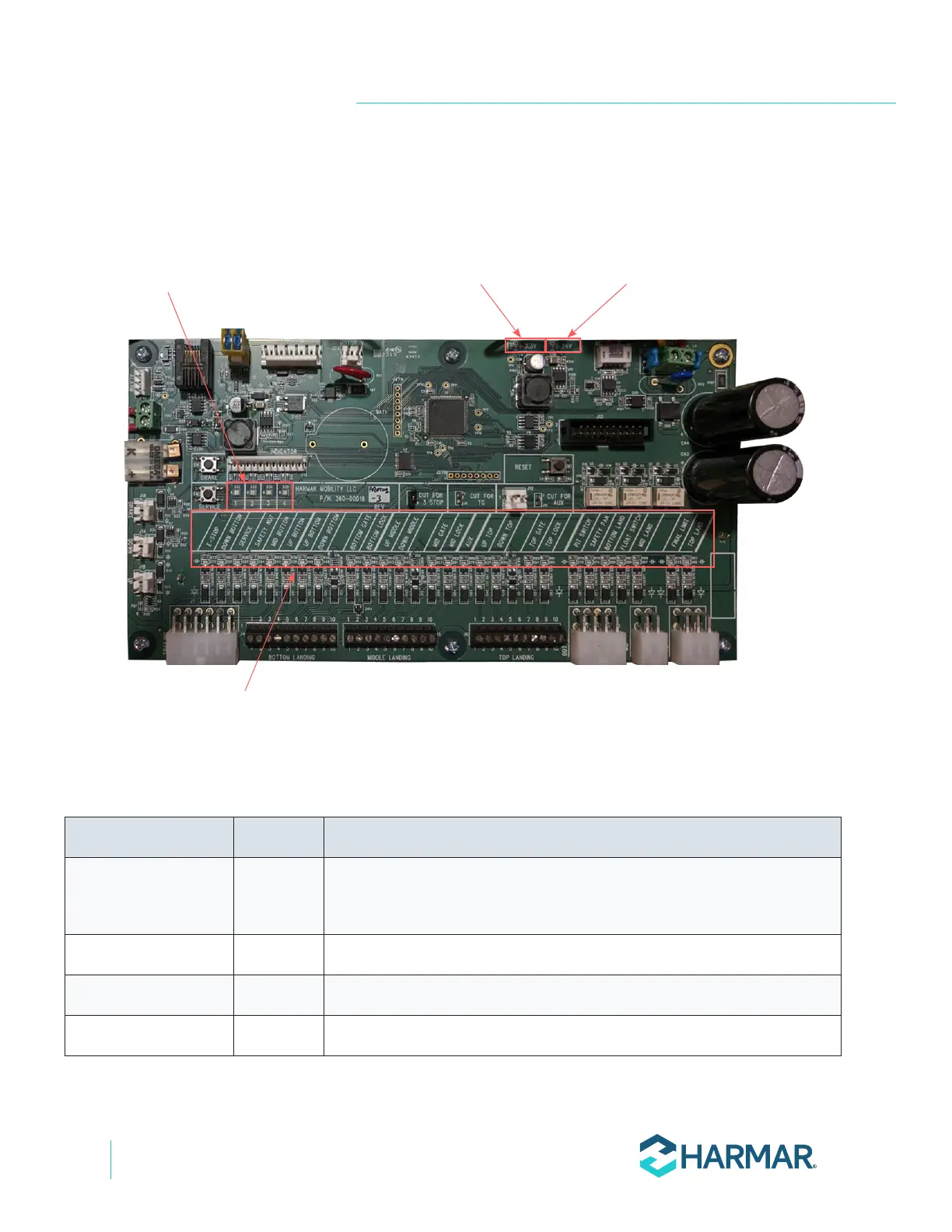

The control board has 32 LEDs to provide the status of power to the board and each circuit that is monitored. It
shows the location and description of each LED. See Figure 6-4.
Figure 6-4
4X Bi-Color
Indicator LEDs
26X Green Circuit
Status LEDs
3.3V Power LEDs 24V Power LEDs
DESCRIPTION COLORS STATUS, TROUBLESHOOTING
4X Indicators
Green,
Amber,
Red
These LEDs exactly duplicate the Indicator LEDs on Top Cap. If they do
not match there could be an issue with cable or Indicator Board. Refer
to Troubleshooting codes above.
Green LED ON indicates processor is getting power.
Green LED ON indicates all 24V circuits are getting power.
E-Stop Green LED ON indicates the E-stop is not depressed (lift can run)
