Hartzell CD15K - FIGURE 26 A: REMOVING COMBUSTION AIR ADAPTER; FIGURE 26 B: TYPICAL TEST SET-UP PRESSURE DECAY TEST

2900 Selma Highway, Montgomery AL 36108 USA
PH: +1.334.386.5400 (option 2) FAX: +1.334.386.5450 WEB: www.hartzell.aero
Page | 47
MM10001
Dated 1/1/08
Rev L dated 5/21/15

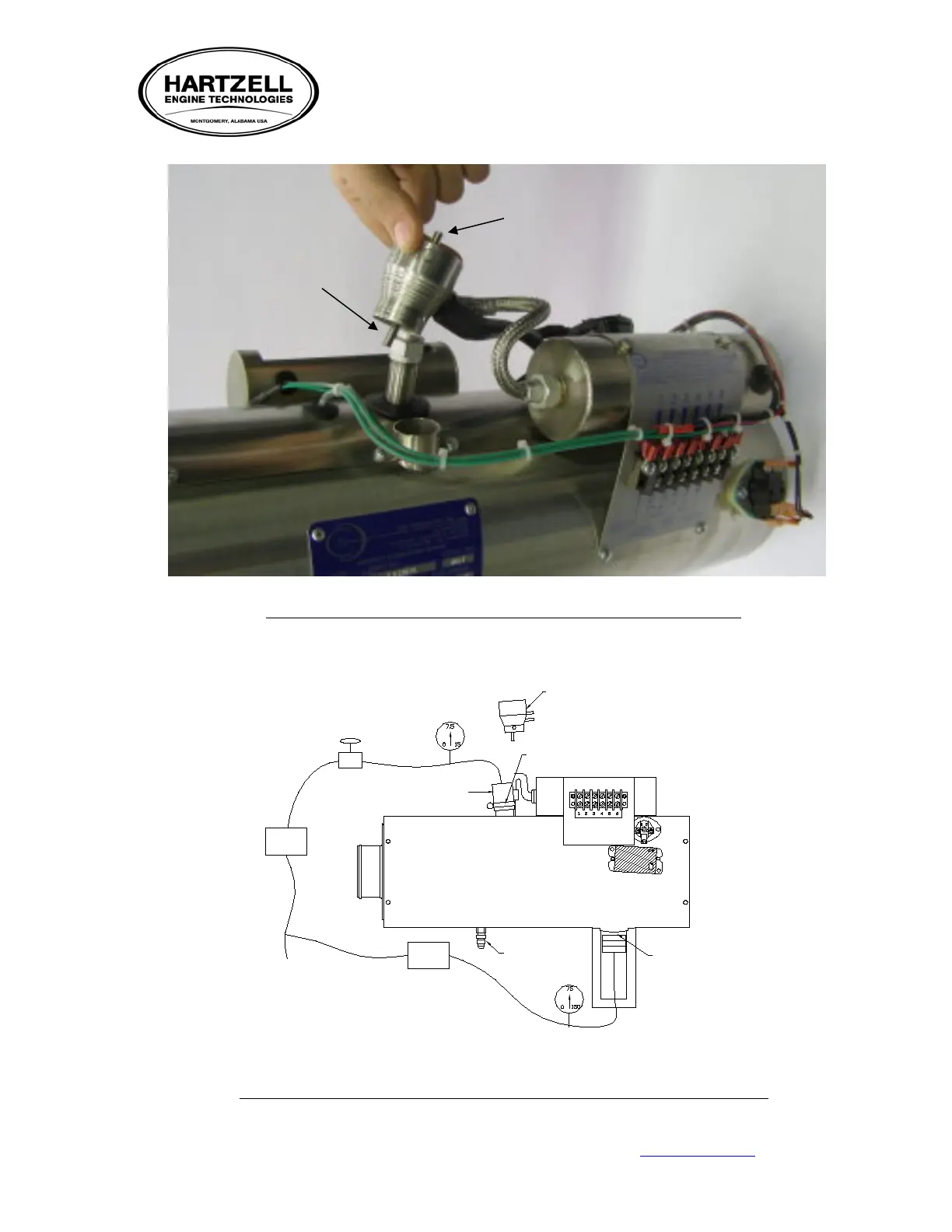

FIGURE 26A: REMOVING COMBUSTION AIR ADAPTER
CAP DRAIN
FOR TEST
SUPPLY 60-80 PSI
OF PRESSURE
SUPPLY 6 PSI
OF PRESSURE
EXHAUST SEAL EXPANSION
BULB INSTALLED AND
INFLATED
REGULATOR
REGULATOR
GAUGE
0-15 PSI
GAUGE
0-150 PSI
SHUT
OFF
AIR
SUPPLY
COMBUSTION
AIR INLET
COMBUSTION AIR
INLET ADAPTER
WARNING: REMOVE COMBUSTION AIR
ADAPTER FROM COMBUSTION
AIR INLET BEFORE RUNNING PDT.
TEST C.A. SWITCH PRIOR TO
REINSTALLING SEE SECTION V.B.
FIGURE 26B: TYPICAL TEST SET-UP PRESSURE DECAY TEST
PRESSURE PORT
VACUUM
