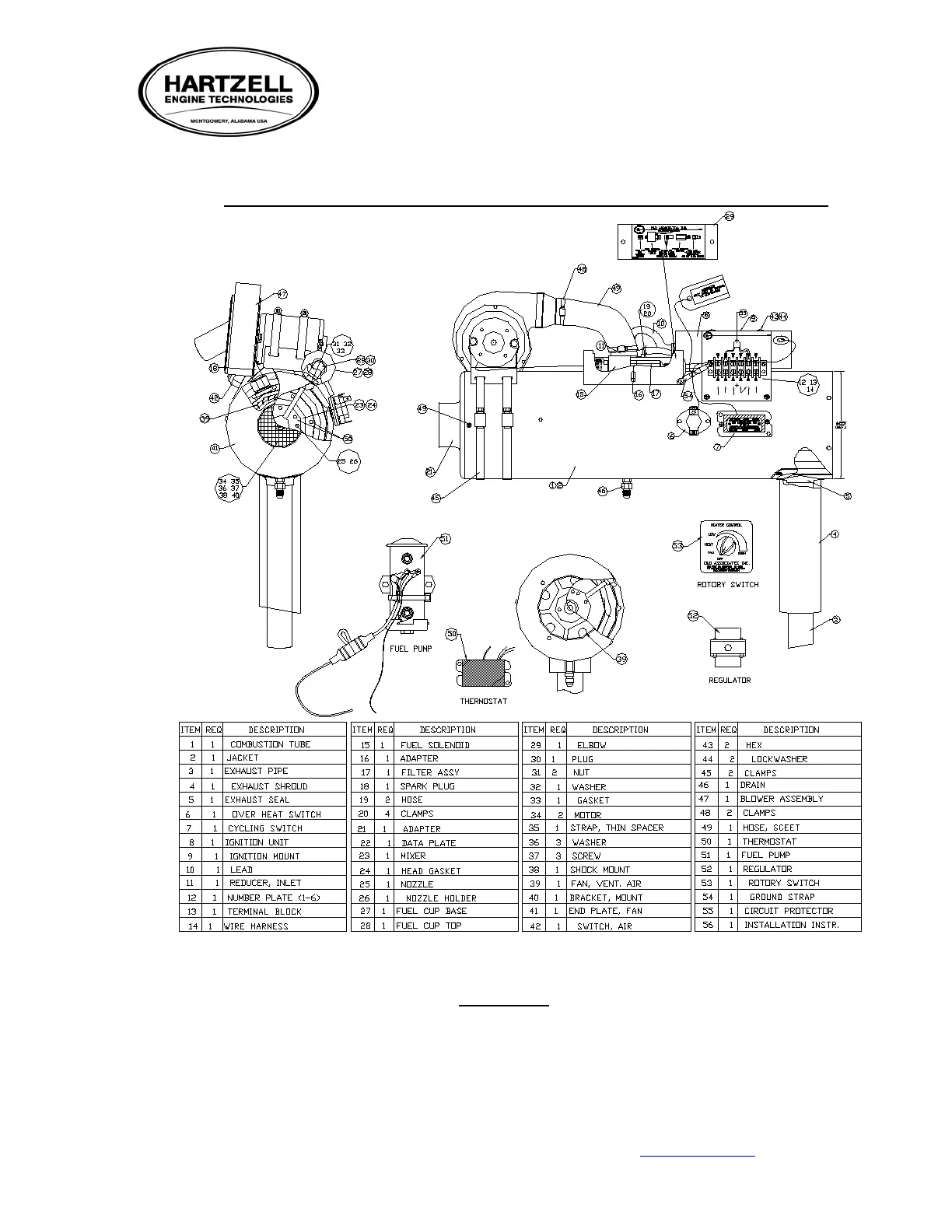

13. PARTS VIEW – TYPICAL ILLUSTRATED PARTS BREAKDOWN (IPB)

AIR BLOWER

GROUND

THERMOSTAT

&/OR SHUTOFF

HEATER HOBBS (OPT)

OVERHEAT

WARNING

(OPT)

VENT BLOWER

(OPT)

FUEL PUMP

POWER & COMB.

46 5 3 2

A C&D AIRCRAFT COMBUSTION HEATER HAS BEEN INSTALLED.

PLEASE FOLLOW THE AIRCRAFT OPERATING MANUAL FOR COMBUSTION

HEATER OPERATING SEQUENCE AN D ASSOCIATES, INC. "INSTRUCTIONS

FOR CONTINUED AIRWORTHINESS" EDITION, DATED 4-4-02 REVISION

NONE OR LATER FAA APPROVED RE .

FOR ELIGIBILITY SEE WWW.AIRCRAFTHEATER.COM

21528

C&D ASSOCIATES, INC.

FIGURE 32
