Hartzell CD15K - 12. FIGURES FOR REFERANCE; FIGURE 25: CUT-AWAY VIEW OF A TYPICAL “-1” COMBUSTION HEATER

2900 Selma Highway, Montgomery AL 36108 USA
PH: +1.334.386.5400 (option 2) FAX: +1.334.386.5450 WEB: www.hartzell.aero
Page | 46
MM10001
Dated 1/1/08
Rev L dated 5/21/15
12. FIGURES FOR REFERANCE

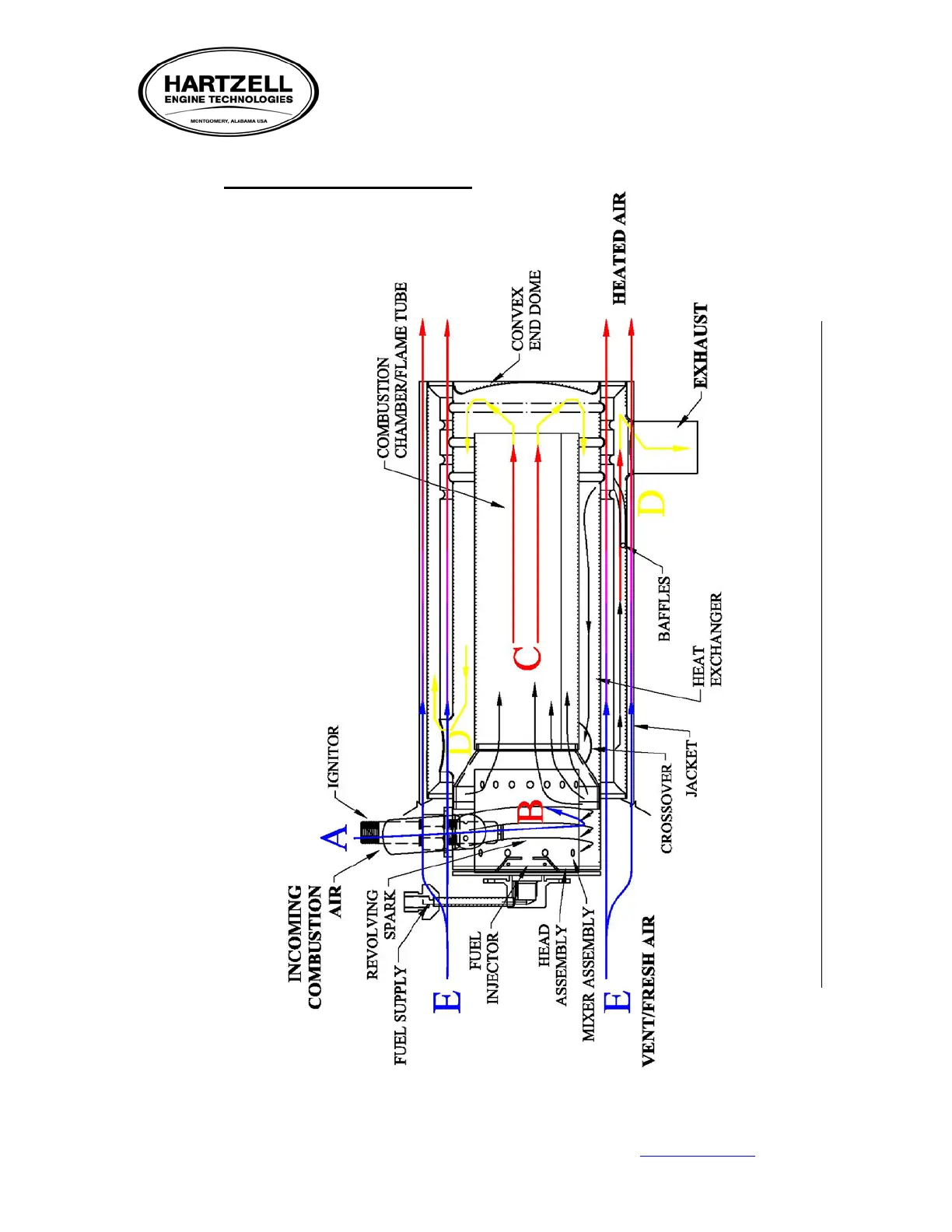

FIGURE 25: CUT-AWAY VIEW OF A TYPICAL “-1” COMBUSTION HEATER
