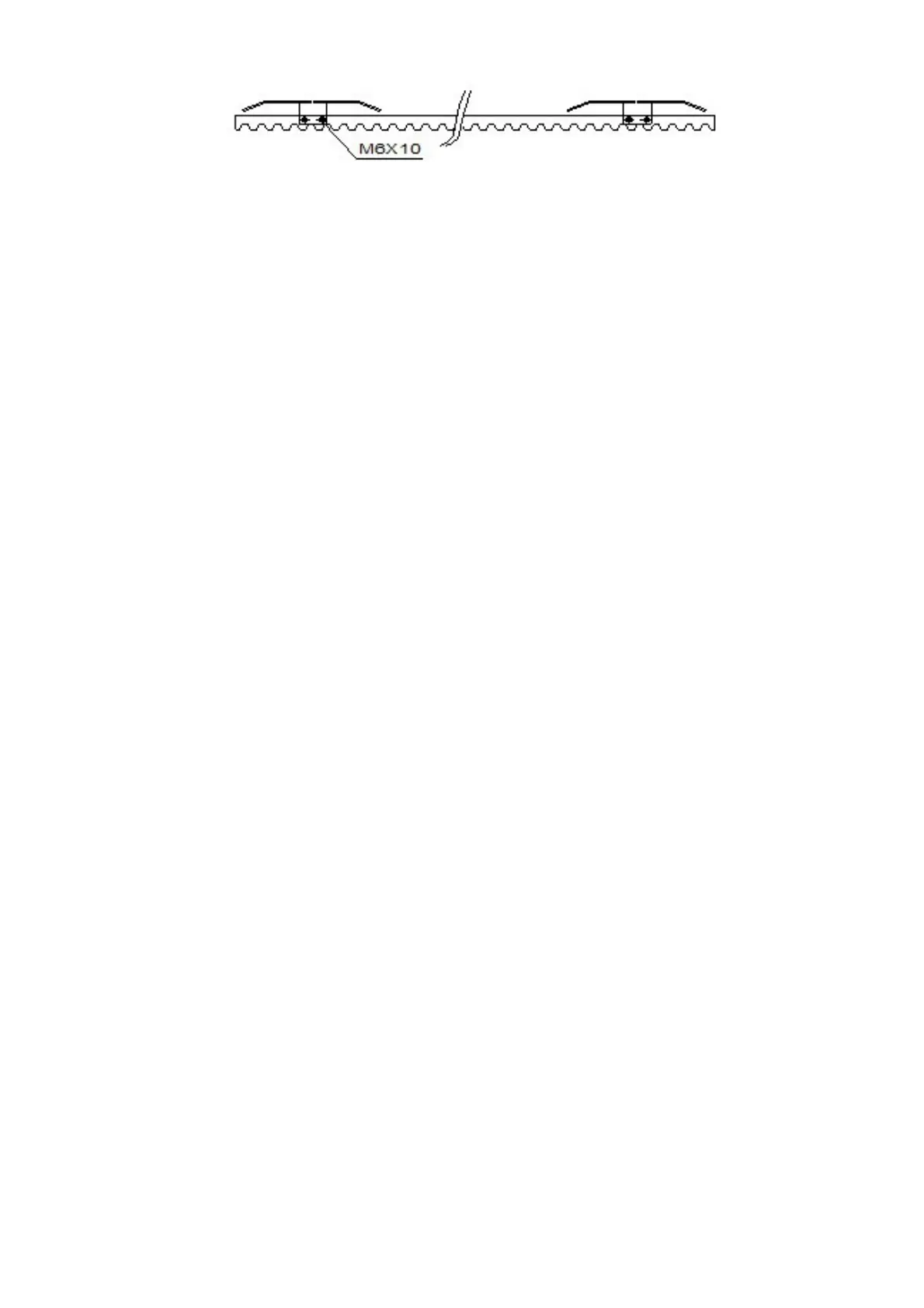

Fig. 4
The cams of the limit switch should be mounted on the toothed rack bar. They should be pre-
installed in such a way that the beginning of pressure on the limit switch is about 10 cm before the
complete opening (closing) of the gate. The exact setting is made after starting the drive.
DESCRIPTION AND PRINCIPLE
OF THE OPERATION OF THE CONTROLLER
PURPOSE
The HEL B11 controller is designed for gate drives using 230Vac motors with a power of up
to 500W. Perfect for continuous operation, it can be used on private properties and in companies.
The used system of variable coding of Microchip transmitters makes it unavailable to an
unauthorized person.
CONTROLLER ADVANTAGES
• Soft start function increasing the life of the door.
• Control by means of remote-control transmitters (up to 28 pcs.) On the frequency of 433.92
MHz with a dynamic Keeloq code.
• Control of the monostable button (bell type).
• AUTO CLOSE function.
• ONLY OPEN function (estate function).
• WICKET function.
• Adjustment of the thrust - when working with the encoder turned off.
• Overload control - when working with the encoder support turned on.
• Working time adjustment.
• A release function before reaching the limit switch
• Remote programming of engine operation (using transmitters).
• Traffic lights with flashing option.
• The function of shortening the auto-closing time after detecting a passage - PHOTO CLOSE.
• Support for NC and NO limit switches.
• Possibility to install an infrared barrier.
