Starting position
If the automatic glowing is on, the engine can be
started when the glowing light in the instrument
panel is gone out.
If automatic glowing is not used, the switch can
be turned directly to the starting position.
4.2.2.3.2. Hand throttle lever (2)
− Full throttle position (lever in front position)
− Idling position (lever in rear position)
4.2.3. Controls on right hand side
4.2.3.1. Gears

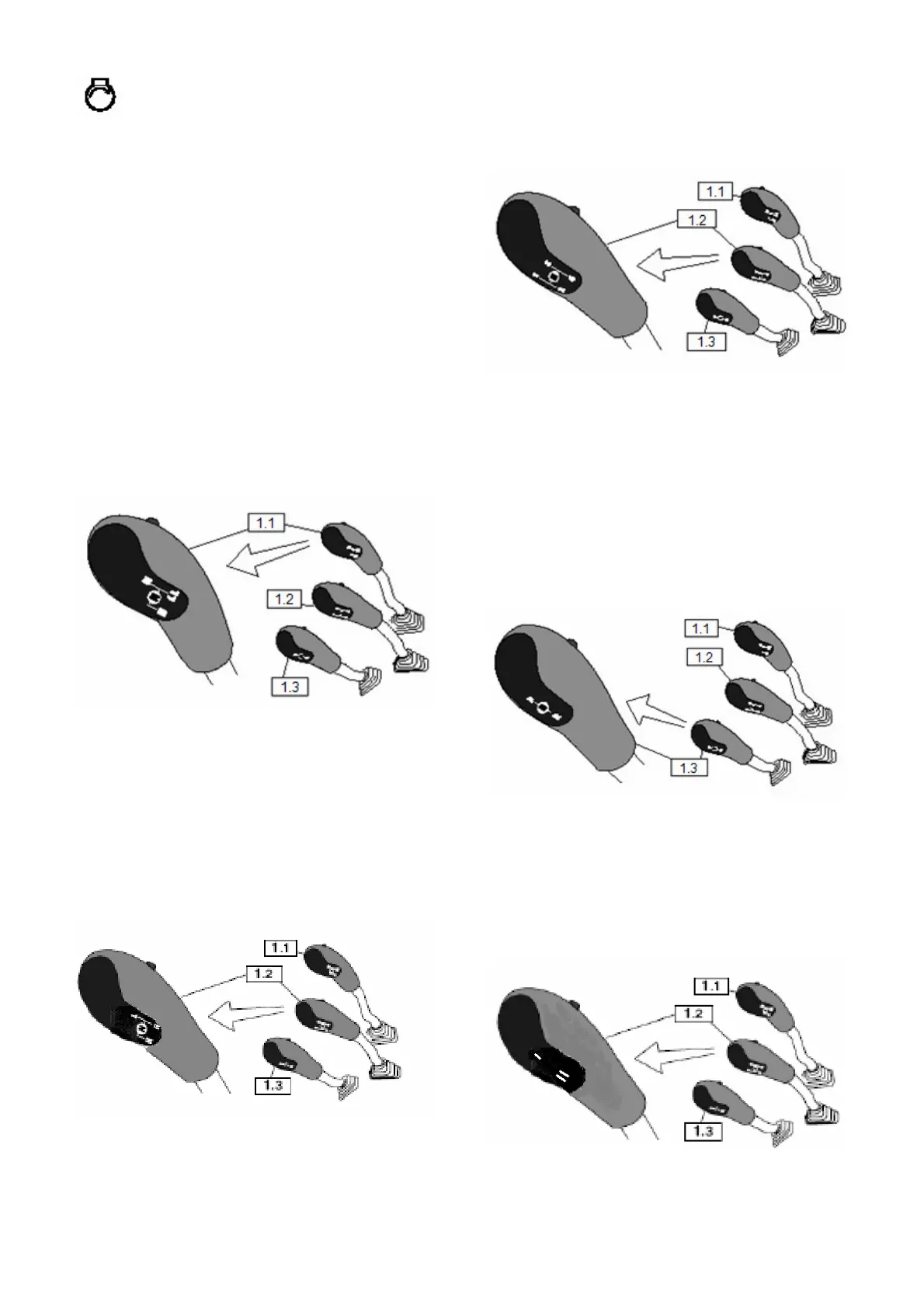

4.2.3.1.1. Range gear lever (1.1)
In 12+12 models, the range lever selects three
synchronized ranges.
Rear position on right (in the driving direction):
crawling speed range LL
Front position on right (in the driving direction): low
range M
Rear position on left (in the driving direction): high
range H
Low (M) and High (H) ranges are synchronized.
When changing ranges the clutch pedal must be
depressed.
In 16+8 models, the range lever selects two
speeds (L-H) and reverse speed(R) that are
synchronized. When gears selected neutral that is
needed, main gear lever should be used. This
provides gear that is selected minimize.
H= High speed range
L= Low speed range
R= Reverse speed
4.2.3.1.2 Speed gear lever (1.2)
This lever (1.2) selects four synchronized speed
gears, the middle position is neutral. The speed
gears can be used in all three speed ranges and
also in the forward and reverse gears and splitter
speeds.
When changing gear, the clutch pedal must be de−
pressed.
4.2.3.1.3. Forward/Reverse (12+12) & Splitter
(16+8) gear lever(1.3)
Lever in front position = forward speeds
Lever in rear position = reverse speeds
Gear change between Forwards & Reverse is
synchronized and also for the splitter speeds.
When changing driving direction, the tractor must be
stopped and clutch pedal depressed.
