31

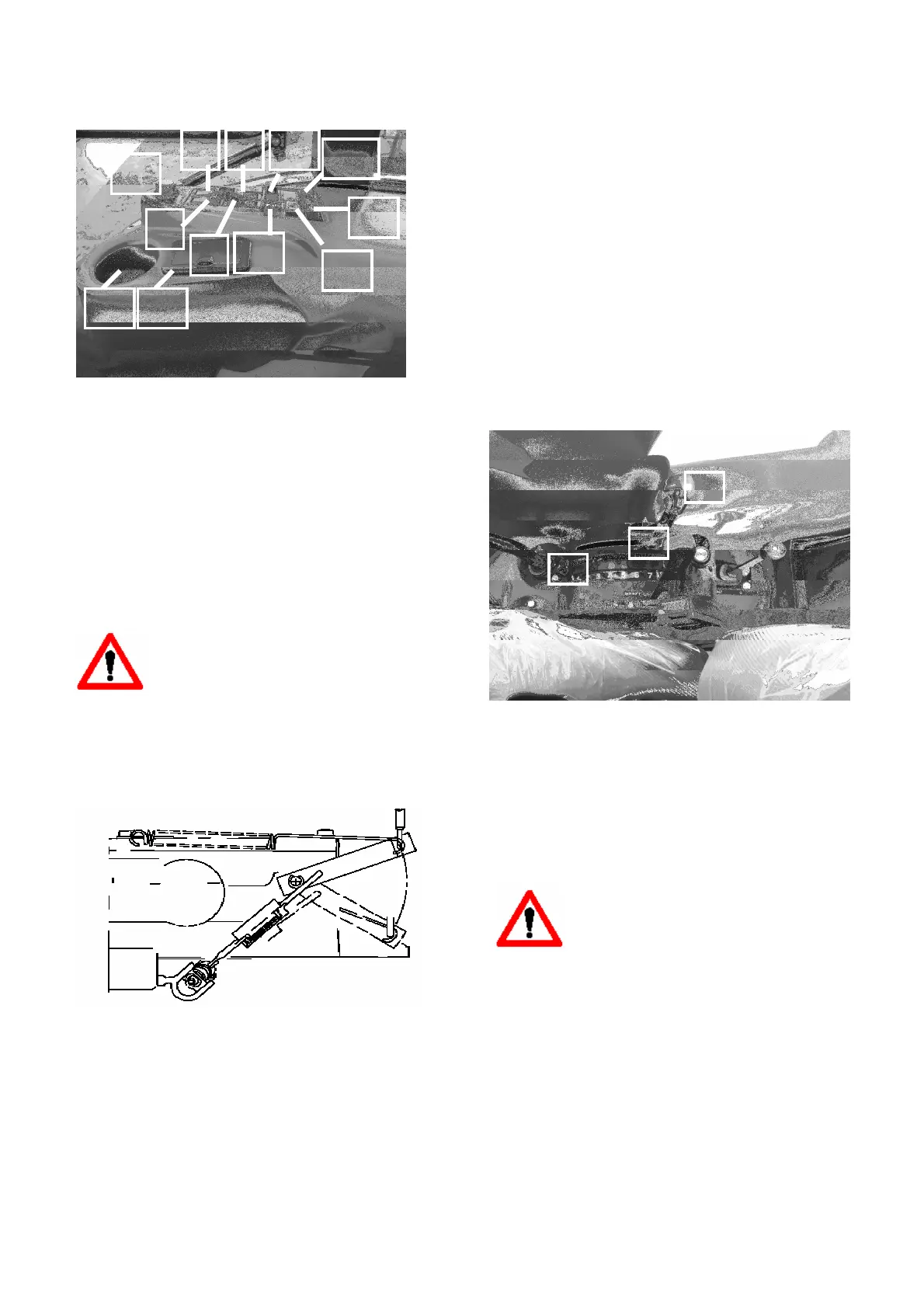

4.2.3.1.4. Differential lock switch (12+12)
(13)
The switch has two positions
Opposite side to the symbol pressed down: the lock
is disengaged.
Symbol side pressed down: the lock is engaged
(light on the instrument).
Because of the dog clutch type lock, there may be a
delay when engaging. The lock is only engaged,
when the indicator light in instrument panel is on.
DO NOT LOAD THE TRANSMISION BEFORE
THE INDICATOR LIGHT HAS ILLUMINATED.
IMPORTANT: The differential lock can
be engaged while running straight
ahead without wheel slip.
Also when disengaging the lock it may
appear delay. After the indicator light is gone, the
lock is disengaged.
Differential lock(16+8)
In 16+8 models, differential lock can be engaged by
lever.
Activated: Lever is pushed down
Dectivated: Lever is pulled up
4.2.3.1.5. Switch for 4WD (11)
The switch has two positions.
Opposite side to the symbol pressed down: the
4WD is disengaged.
Symbol side pressed down: the 4WD is engaged
(light on the instrument).
Front wheel drive can be engaged and disengaged
while driving without using the clutch pedal.
Four wheel drive will always be engaged.
− when braking with both brake pedals
− when engaging the parking brake
− when stopping the engine
4.2.3.2. Rear linkage (mechanically
controlled hydraulic lift) (2)
Front position: Lifting arms lowered.
Rear position: Lifting arms raised.
Position control lever (2)
Draft control lever (3)
4.2.3.2.1 Limiter of position control lever (1)
The movable lever stop (1), marks the
position of the lever. It facilitates return
to its previously set position after a
lifting operation or similar.
WARNING: The lever should be locked in the rear
position with the stop when the hydraulic lift is not
being used or if
8
9
10
11
12
13
14
15
16
6
7
17
