1.111.11
Check that parts are delivered correctly: Remove the
mower from the packaging and check that all loose items
have been supplied correctly. Refer to the delivery checklist
opposite and the general assembly. If any items are missing,
contact your local authorised Hayter Dealer.
Description
Grassbag
Owner's Handbook
Engine Handbook
Warranty Reg. Card
DELIVERY CHECKLIST

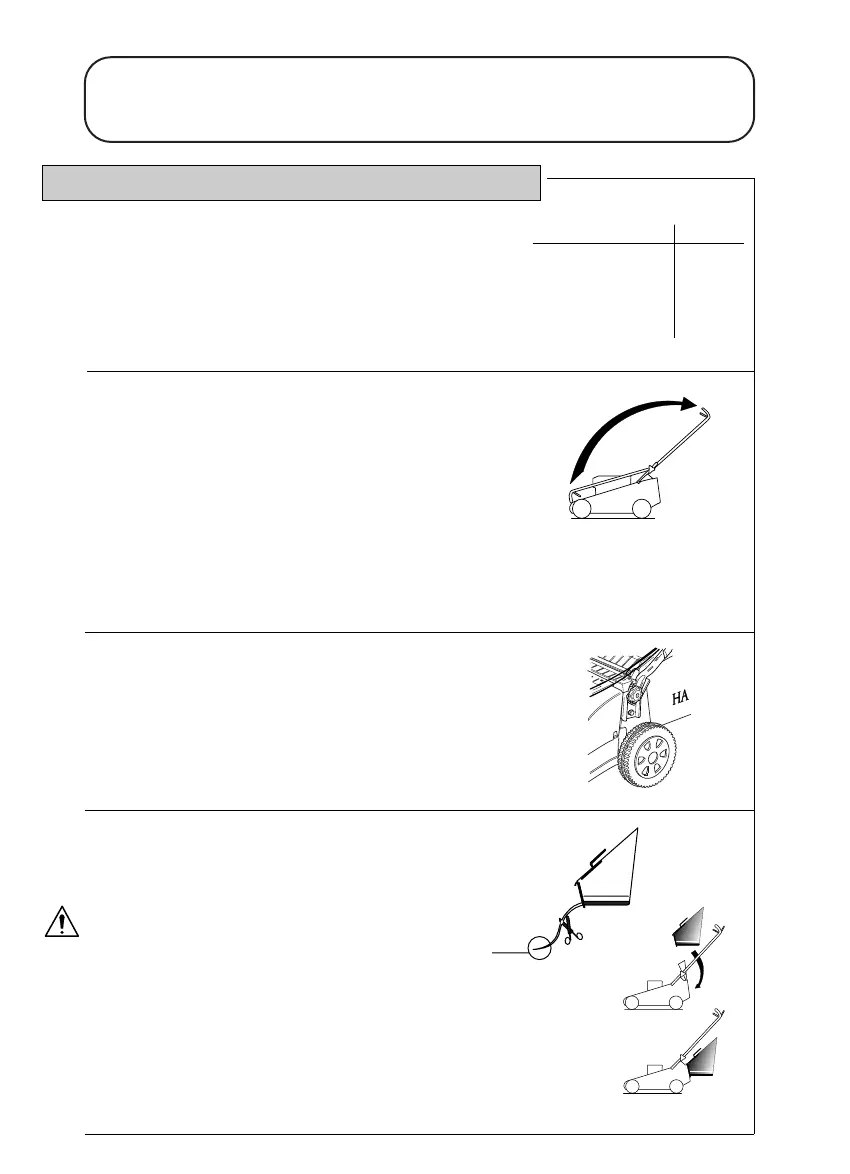

ASSEMBLING THE MOWER FOR THE FIRST TIME
ASSEMBLY INSTRUCTIONS
Quantity
1
1
1
1
Assemble the handlebar: Unscrew the knobs securing the
handlebar sufficiently to allow it to be pivoted. Move the
engine stop lever away from the engine to avoid damage and
unfold the handlebar to its operating position. Tighten the
two knobs to secure the handlebar, ensure that the knobs are
assembled to the outside of the handlebars.
Adjust height of handlebars: Using a suitable spanner or
socket. Loosen the 2 fixings at the base of the handlebars.
Unscrew the 2 lower knobs sufficiently to allow handlebars to
pivot. Set the required position and re-tighten the 2 lower
knobs, check position and re-tighten the fixing screws at the
base of the handlebar.
Assemble the grassbag: Identify the grassbag and remove
the long ribbon label by cutting it off close to the grassbag.
Discard the ribbon label.
WARNING - AVOID ENTANGLEMENT : Completely re-
move this ribbon before using the mower.
Raise the rear deflector and lower the grassbag through the
handlebar apperture to connect onto the upper mounting
points. Lower the grassbag to rest against the rear of the
mower. Finally lower the rear deflector to rest against the top
of the grassbag.
