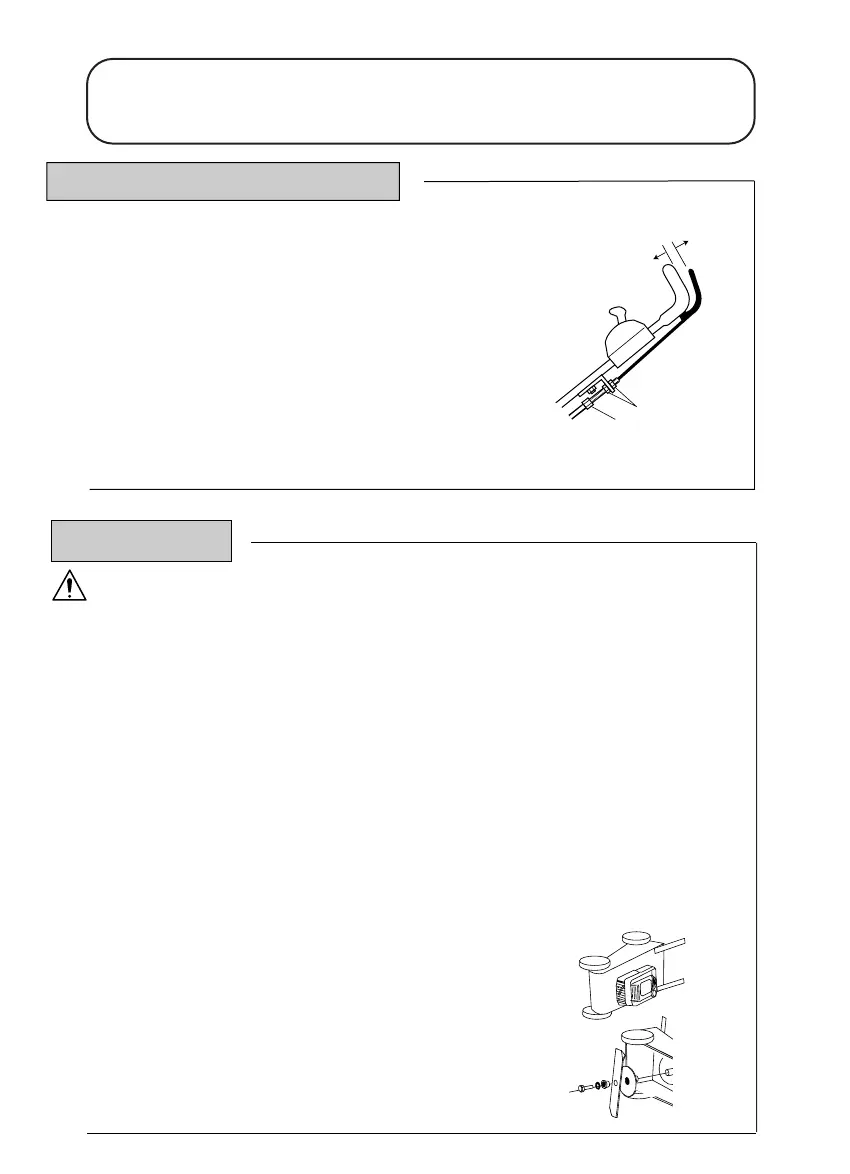

WARNING: PREVENT ACCIDENTS - Never work on the cutterbar unless the spark
plug lead has been removed. The cutterbar has sharp edges. ALWAYS wear strong gloves
to protect your hands when working on the cutterbar. DO NOT operate tools towards the
cutting edges to avoid the risk of injury should the tool slip. ALWAYS use genuine Hayter
replacement parts.
The condition of the cutterbar and its mounting arrangement should be checked regular-
ly for signs of wear or damage. Ensure that the cutterbar is not bent or cracked.
A damaged cutterbar that is out of balance will vibrate excessively and may break. DO
NOT use an unbalanced cutterbar.
Regularly check that the bolt securing the cutterbar is tightened to the specified torque of
54Nm.
Replace the cutterbar every 2 years or sooner if excessively worn or damaged.
How to remove the cutterbar:
Drain the fuel by operating the engine until the fuel tank is
empty and the engine stops. Remove the spark plug lead
and allow the engine to cool Turn the mower on its left hand
side and ensure that the air cleaner side of the engine is
uppermost.
Firmly grip the end of the cutterbar with the gloved hand and
remove the bolt and washer securing the cutterbar with a
9/16" A/F spanner.
397011MA260599A
Check the clutch cable operation every 25 operating hours
and adjust if necessary. The clutch cable is adjusted cor-
rectly when the belt drive just engages with the clutch lever
positioned 32-38mm from the handlebar.
Unscrew the lock nuts (1) and screw the adjuster (2) in or
out as necessary. Tighten the locknuts (1) when correctly
adjusted.
IMPORTANT - PREVENT DAMAGE: ALWAYS oper-
ate the mower with the clutch cable correctly adjusted.
ALWAYS replace damaged cables.
