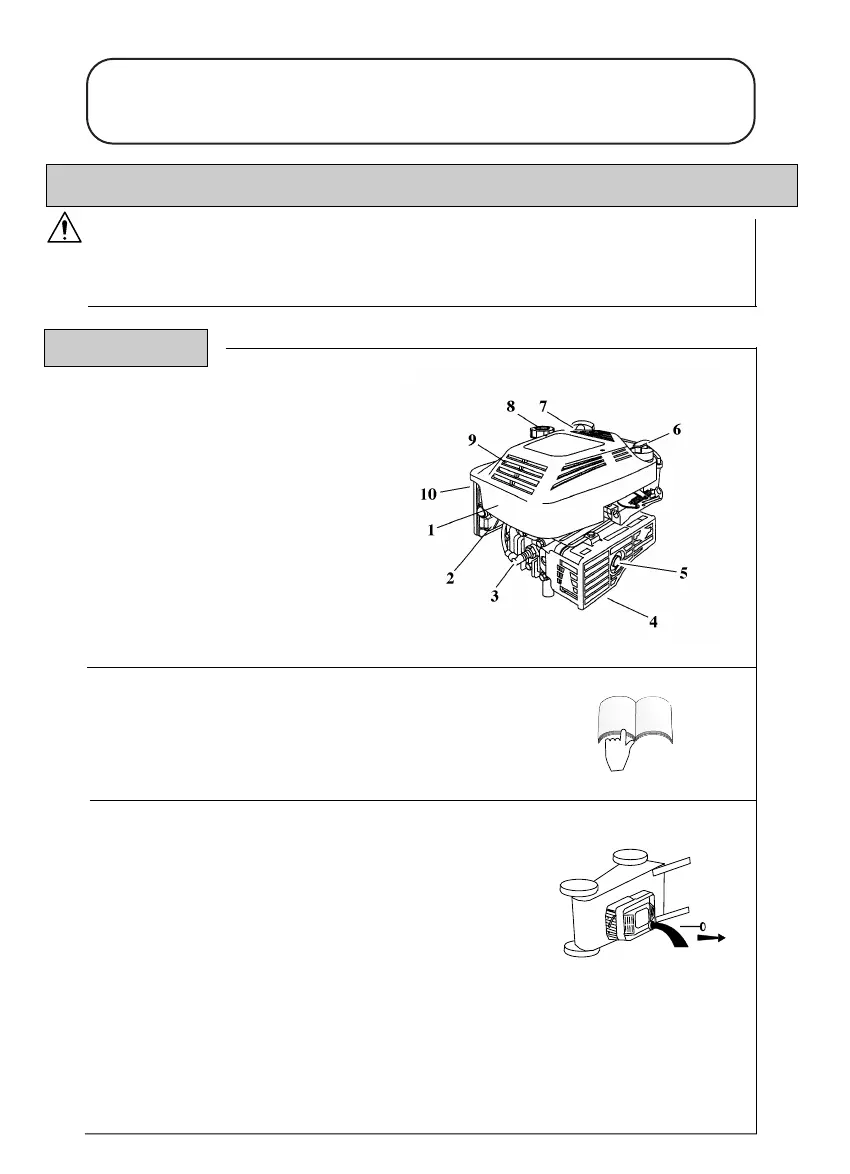

MAINTENANCE

IMPORTANT - Draining engine oil: To drain the engine oil,

first drain fuel by operating the engine until the fuel tank is

empty and the engine stops. Remove the spark plug lead and

allow the engine to cool. Position the mower on its left hand

side and ensure that the air cleaner side of the engine is kept

uppermost. Remove the oil filler-dipstick to drain the oil.

Engine handbook: For details of engine maintenance refer to

the engine operating and maintenance instructions handbook

supplied with your mower.

ENGINE

CS085

WARNING - PREVENT ACCIDENTS: Stop the engine

and disconnect the spark plug lead before attempting to

carry out maintenance procedures on the mower.

ENGINE

10.

Engine Cowl

Carburettor

Spark Plug / Lead

Muffler Guard

Muffler

Oil filler Cap/ Dipstick

Start Grip

Fuel Cap

Finger Guard

Air Cleaner

397011MA260599A
