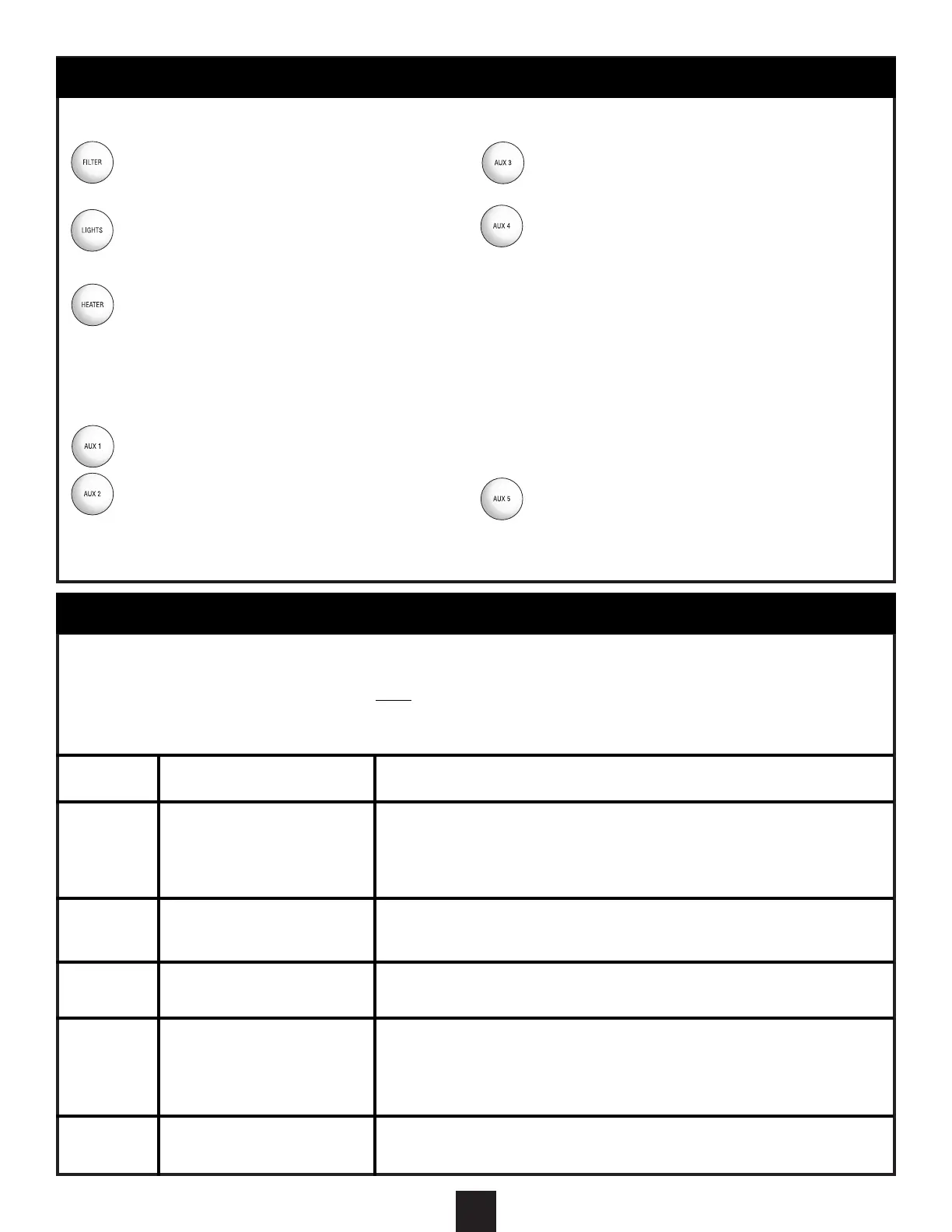

BUTTON FUNCTIONS FOR SERVICE PANEL
TROUBLESHOOTING
SERVICE PANEL OPERATION BASIC BUTTON FUNCTIONS ON MAIN CONTROL CENTER COVER
IMPORTANT: TOUCHING ANY BUTTON TWICE ON THE SERVICE PANEL WILL DISABLE THE SPA SIDE AND MASTER
CONTROL PANEL FOR 3 HOURS. MASTER PANEL DISPLAYS “BEING SERVICED.” TURNING THE POWER OFF AND
THEN ON AGAIN WILL RESET ALL PANELS.
FILTER BUTTON- Turns the filter pump on
and off in pool mode; 4-hour timeout. If there
is a 2-speed filter pump, the sequence is: off,
low, high (in pool mode).
LIGHT BUTTON- Switches the light(s)
between high, medium and low intensity in
120 V systems only. Switches lights ON/Off
on low voltage systems; 12 hour timeout.
HEATER BUTTON- 1st press enables the
heater for heating whichever position the
valves are in, whether it be pool or spa.
2nd press constantly turns heater and filter
pump on. 3rd press turns heater and filter
pump off. There is a three hour timeout on the
heater constant feature. (See notes on
previous page regarding Heater Cool Down
and Heat Seek Features).
AUXILIARY 1- (Disabled in Spa Mode)
Turns the feature on and off; 24 hour timeout.
AUXILIARY 2- Turns feature on and off;
12 hour timeout.
AUXILIARY 5- Turn Auxiliary 5 output on the
expander board on and off; 12 hour timeout.
AUXILIARY 3 - (In Spa Mode - switches
valves to Pool Mode)
Turns the feature on and off; 24 hour
timeout. Filter pump turns on with feature.
AUXILIARY 4-
Optional Pool Light:
A. Controls the optional pool lighting
circuit. The 1st press turns on the light.
B. The button is pressed again AFTER 5
SECONDS, the light turns off.
C. If the button is pressed again BEFORE
5 SECONDS, the Aux 4 option will
operate.
D. The next press stops the Aux 4 option
and the next turns the light off. 12 hour
timeout.
On/Off Light Option:
The 1st press turns the light on. The 2nd
press turns the light off; 12 hour timeout.
THE FOLLOWING MESSAGES MAY APPEAR ON THE LCD SCREEN OF THE MASTER CONTROL PANEL:
WARNING: THE SYSTEM IS NOT
MEANT TO BE SERVICED BY THE CONSUMER.
RISK OF ELECTRIC SHOCK EXISTS INSIDE THE MASTER CONTROL PANEL. CONTACT YOUR
LOCAL SERVICE PERSON FOR APPROPRIATE ACTION.
LCD
MESSAGE
PROBLEM
WATER TEMPERATURE
HIGH LIMIT
WATER TEMPERATURE
SENSOR FAILURE
AIR TEMPERATURE
SENSOR FAILURE
FREEZE PROTECTION
ACTIVATED
RECOMMENDED ACTION
This is displayed when the water in the pool/spa system reaches 112°F.
SYSTEM WILL RESET ITSELF ONCE THE WATER TEMPERATURE
REACHES 112°F. IF PROBLEM PERSISTS, CONTACT YOUR SERVICE
PERSON FOR APPROPRIATE ACTION.
CONTACT SERVICE PERSON FOR REVIEW AND POSSIBLE SENSOR
REPLACEMENT IF SENSOR IS FOUND TO BE DEFECTIVE.
CONTACT SERVICE PERSON FOR REVIEW AND POSSIBLE SENSOR
REPLACEMENT IF SENSOR IS FOUND TO BE DEFECTIVE.
NO ACTION REQUIRED. Safety feature built into system to avoid
damage to equipment. Activated when air temperature reaches 35°F.
Pump will run for 1/2 hour intervals while temperature is at or below
35°F. This feature is only active when valves are in the pool mode.
NO ACTION REQUIRED.
OH message will appear if the water in the
pipes does not cool below 110°F within 5 minutes.
OH
SN1
SN2
ICE
WATER TEMPERATURE
GREATER THAN 100°
HOT
