CONNECTING LOW VOLTAGE COMPONENTS TO THE MAIN CONTROL CENTER
CONNECTING AIR AND WATER
TEMPERATURE SENSORS
(ALSO OPTIONAL SENSORS)
1. Route the sensor cables through the
opening provided on the bottom right
of the Main Control Center through
the low voltage compartment and over
the top of the low voltage
compartment partition.
2. Insert the connectors at the end of
the cables into the marked
receptacles along the top of the
printed circuit board.
3. Store any excess cable in the low
voltage raceway.
NOTE
: AIR TEMPERATURE
SENSOR MUST BE INSTALLED IN
A PLACE THAT WILL NOT BE
AFFECTED BY DIRECT SUN
EXPOSURE.
THE SENSOR IS DESIGNED TO
SENSE AND DISPLAY AMBIENT
AIR TEMPERATURE. ROUTE THE
CABLE ACCORDINGLY.
CONNECTING MOTORIZED DIVERTER VALVES (ALSO OPTIONAL POOL FILL VALVE)
1. Route the cables along the pipes that support the Motorized Diverter Valves as directly as possible to the
nearest wall. Use tie-wraps to secure the cable to the plumbing. Continue to route the cable to the Main
Control Center by neatly securing the cable to the wall and through the opening provided on the bottom
right of the Main Control Center.
2. Continue the cable through the low voltage compartment and over the top of the low voltage
compartment partition.
3. Insert the connectors at the ends of the cables into the marked receptacles along the top of the printed
circuit board.
4. Store any excess cable in the low voltage compartment. Remember to check the synchronization of the
valves as outlined in the basic plumbing schematic when the system is powered up. See pages 10-19 for
valve installation locations.
CONNECTING MASTER CONTROL PANEL AND SPA-SIDE CONTROL PANEL
1. Route the cables through the opening provided on the bottom left of the Main Control Center, through the
low voltage compartment and over the top of the low voltage compartment partition.
2. Insert the connectors on the ends of the cable into the marked receptacles along the top of the printed
circuit board. There should be little or no excess cable from the Master Panel or the Spa-Side Panel to
store in the low voltage compartment.
3. Excess cable from the Master Control Panel should be stored in the attic or between walls.

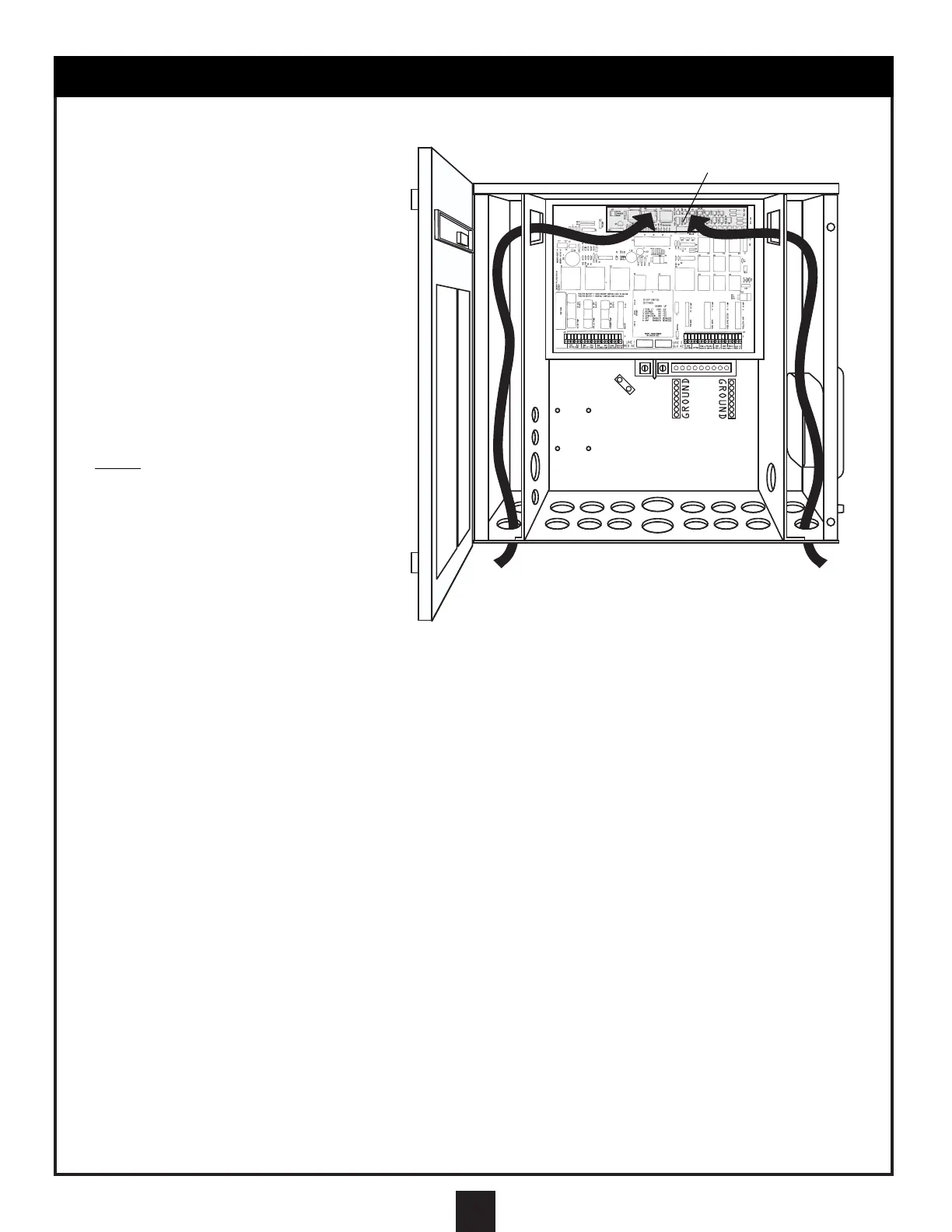

LOW VOLTAGE
CONNECTOR
RECEPTACLE
AIR AND WATER
TEMPERATURE
SENSORS,
MOTORIZED
DIVERTER VALVES
MASTER CONTROL PANEL,
SPA SIDE CONTROL PANEL
