Operating Instructions
Radio Transmitter eco
Page 10 / 24 AOEM1G30 [PMTS/DOKUS]
HBC-radiomatic GmbH • 74564 Crailsheim • Germany
2007-06-18 Information and specifications subject to change without notice.
Radio Control System
2.1.2 AC Battery Charger for BA2250_0
The charger consists of the battery charger QA101600 with 4 interchangeable standard
adapters and the battery compartment QC005A00.
Ø Use this charger for HBC batteries type BA2250_0 only.
Ø Use this charger with the included battery compartment only.
Ø The charger may not be used in hazardous areas.
Ø The charger has to be used indoors only.
Ø Use the charger at room temperature and protect it against heat, dust and humidity.
Ø Do not cover the charger while it is in use.
Ø Disconnect the charger from the power supply when it is not in use.
Ø In case of any fault of the charger disconnect it immediately and put it out of
operation.
Ø Do not make any technical changes to the charger.
Ø Defects must be repaired by qualified personnel only.

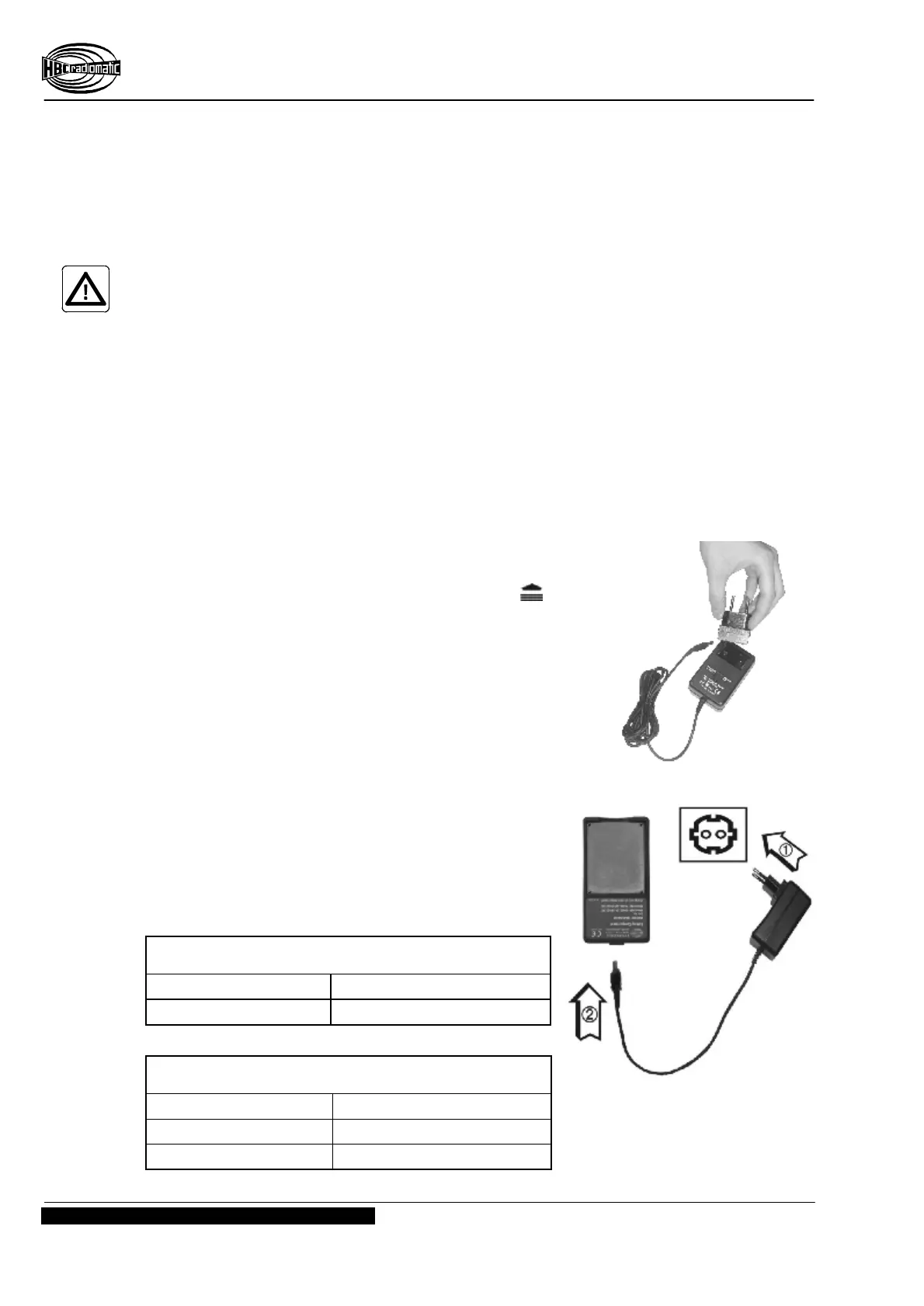

Changing the plug
1. Release the plug by pushing the switch in the
direction of the arrow.
2. Select a different plug and insert it into the adapter
compartment. Make sure the plug clicks into place.
Charging the battery
1. Connect the battery charger to the mains.
2. Connect the battery charger to the battery
compartment.
3. Insert the battery with the inscription facing up
into the battery compartment.
The red LED on the charger indicates the actual
operating state (see table below).
Operating Display
LED red flashes Battery is charging
LED red off Battery is charged
Technical Data
Charging time approx. 1,5 h
Supply voltage 100 – 240 V AC
Operating temperature
0°C – 40°C (32°F – 104°F)
