Radio Control System
2.1.3 DC Battery Charger for BA2250_0
The charger consists of the battery charger QD112300 and the battery compartment
QC005A00.
Ø Use this charger for HBC batteries type BA2250_0 only.
Ø Use this charger with the included battery compartment only.
Ø The charger may not be used in hazardous areas.
Ø The charger has to be used in vehicles only.
Ø Use the charger at room temperature and protect it against heat, dust and humidity.
Ø Do not cover the charger while it is in use.
Ø Disconnect the charger from the power supply when it is not in use.
Ø In case of any fault of the charger disconnect it immediately and put it out of
operation.
Ø Do not make technical changes to the charger.
Ø Defects must be repaired by qualified personnel only.

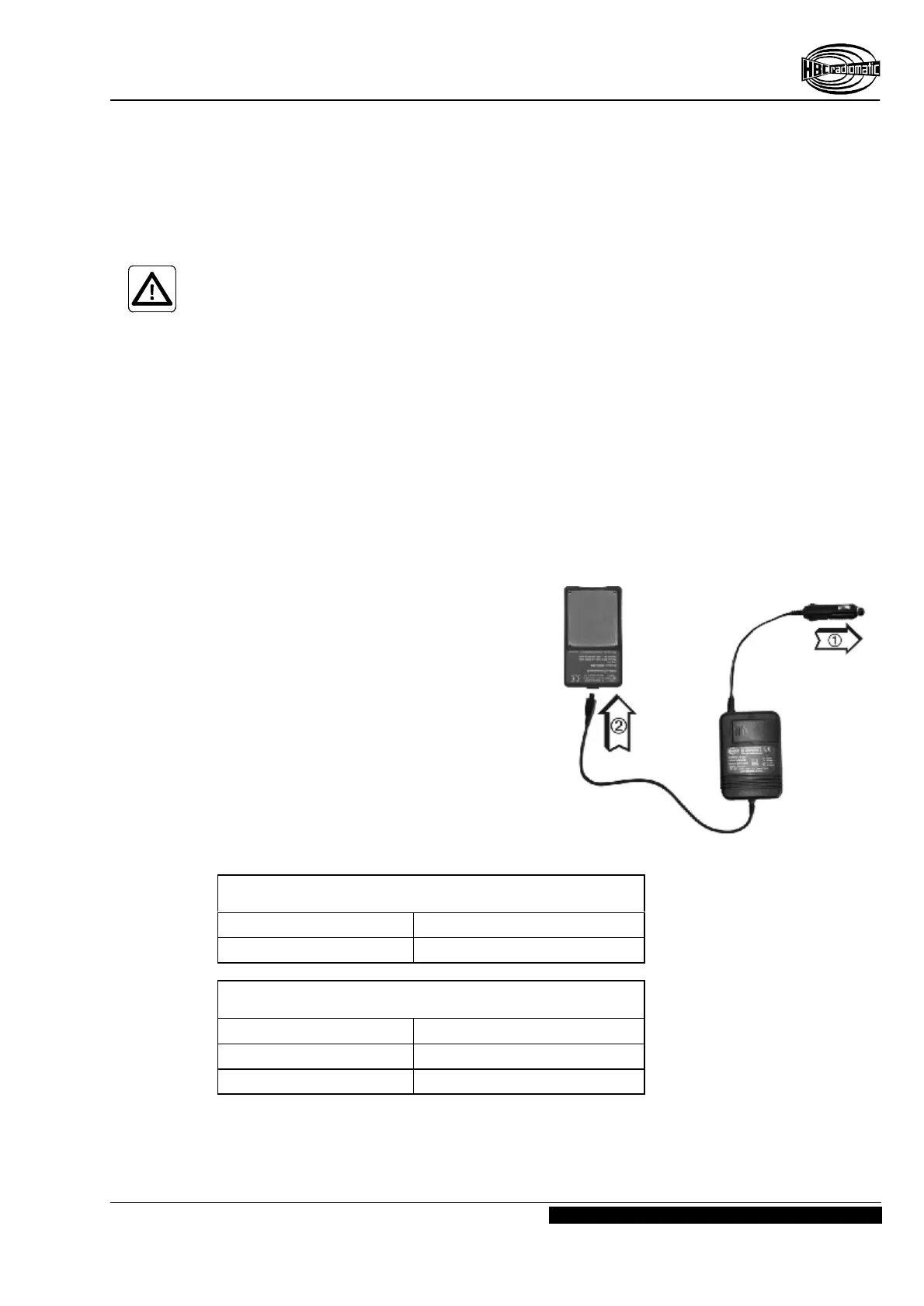

Charging the battery
1. Connect the battery charger to a car
socket.
2. Connect the battery charger to the
battery compartment.
3. Insert the battery with the inscription
facing down into the battery
compartment.
The red LED on the charger indicates the
actual operating state (see table below).
Operating Display
LED red flashes Battery is charging
LED red off Battery is charged
Technical Data
Charging time ca. 1,5 h
Supply voltage 10 – 30 V DC
Operating temperature
0°C – 40°C (32°F – 104°F)
