Operation
12 A01681_03_X00_04 HBM: public K148
Notice
By use with the USB Port this a Class A product. In a domestic environment
this product may cause radio interference in which case the user may be re
quired to take adequate measures.
5.1.2 Pin assignment
Single-channel measuring mode (single channel)
This connection scheme applies to measuring amplifiers that work with a six-
wire circuit (sense lines for the excitation voltage). This ensures that measure
ment accuracy is not affected by the lengths of the measuring cables being
used.
1
8
9
15
Assignement
Cable
shield
PIN
Bridge excitation voltage (-)
Bridge excitation voltage (+)
Measurement signal (+)
Sense line (-)
Sense line (+)
Measuring signal (-)
8
5
6
15
13
12
1
2
3
4
15-pin SUB-D
connector

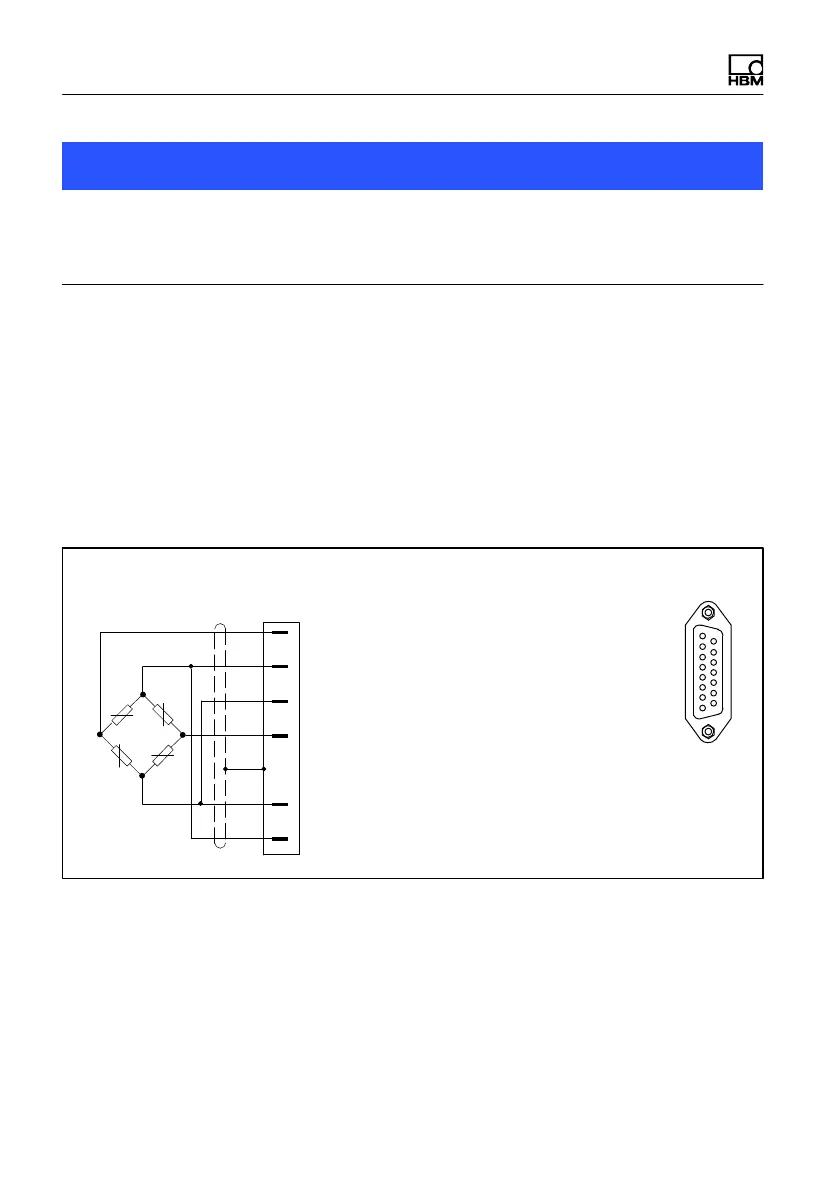

Fig. 5.1 :K148 connector pin assignment (single channel)
