4 Connections
WARNING
Before starting the device, read the safety instructions.
4.1 Pin assignment
For the pin assignment of the MP30DP module please refer to the Operating
Manual ”PME industrial measurement electronics with MP30 module field bus
link”. On the front panel of the MP30DP is an additional 9-pin D-sub
connection socket for the Profibus connection.
Profibus
connection
socket
1
5
6
9
GND
RS485-RTS
RS485-B
RS485-A
Vcc (5 V)

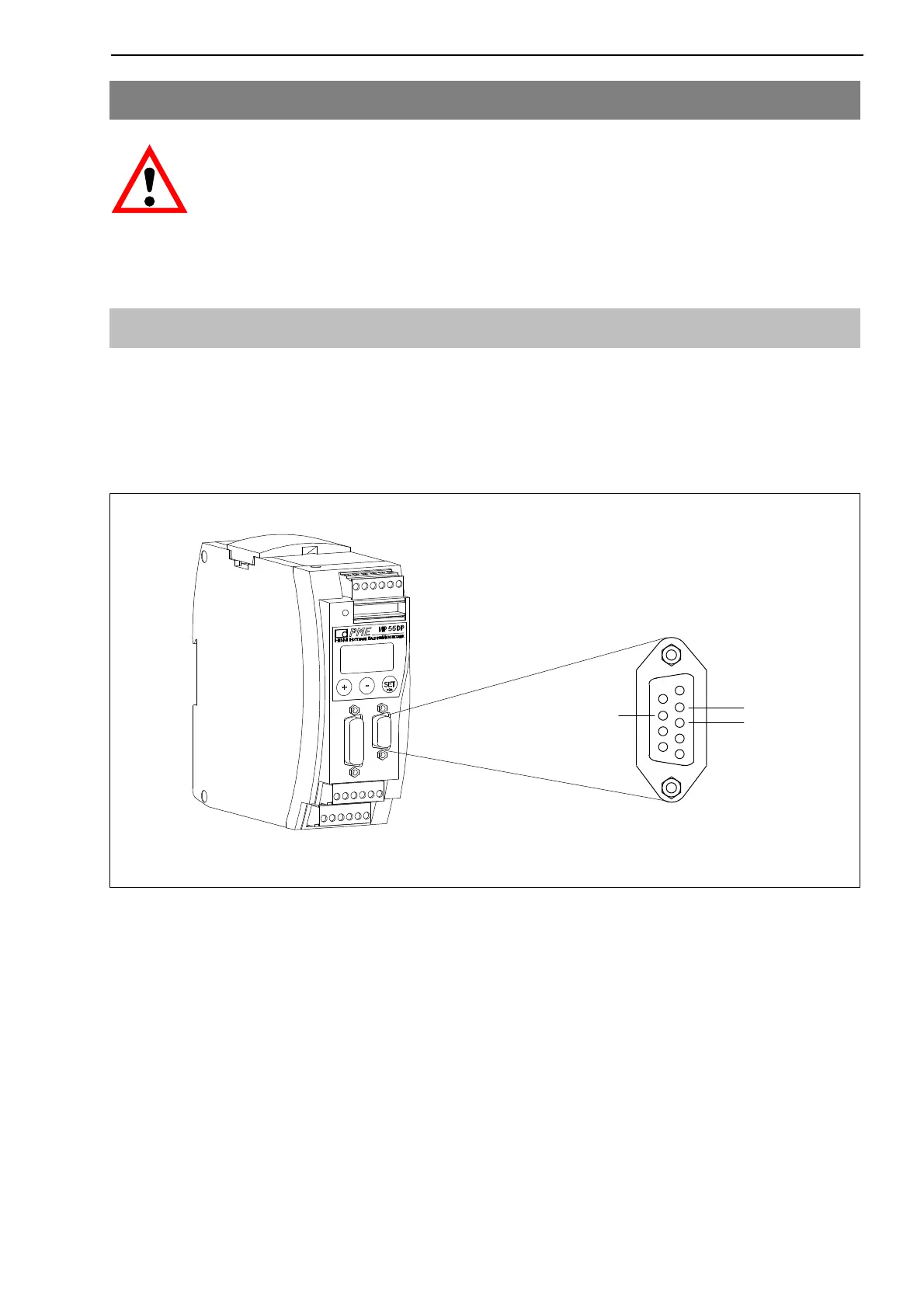

Fig. 4.2: Profibus connection in accordance with standard
