4 Connections
Warning
Please note the safety instructions before commissioning the device.
4.1 Pin assignment
For the pin assignment of the MP60DP module please refer to the Operating
Manual “PME industrial measurement electronics with MP60/MP07 module
field bus link”. On the front panel of the MP60DP is an additional 9−pin D-sub
connection socket for the Profibus connection.
Profibus
connection
socket
1
5
6
9
GND
RS485-RTS
RS485-B
RS485-A
Vcc (5V)
6
0

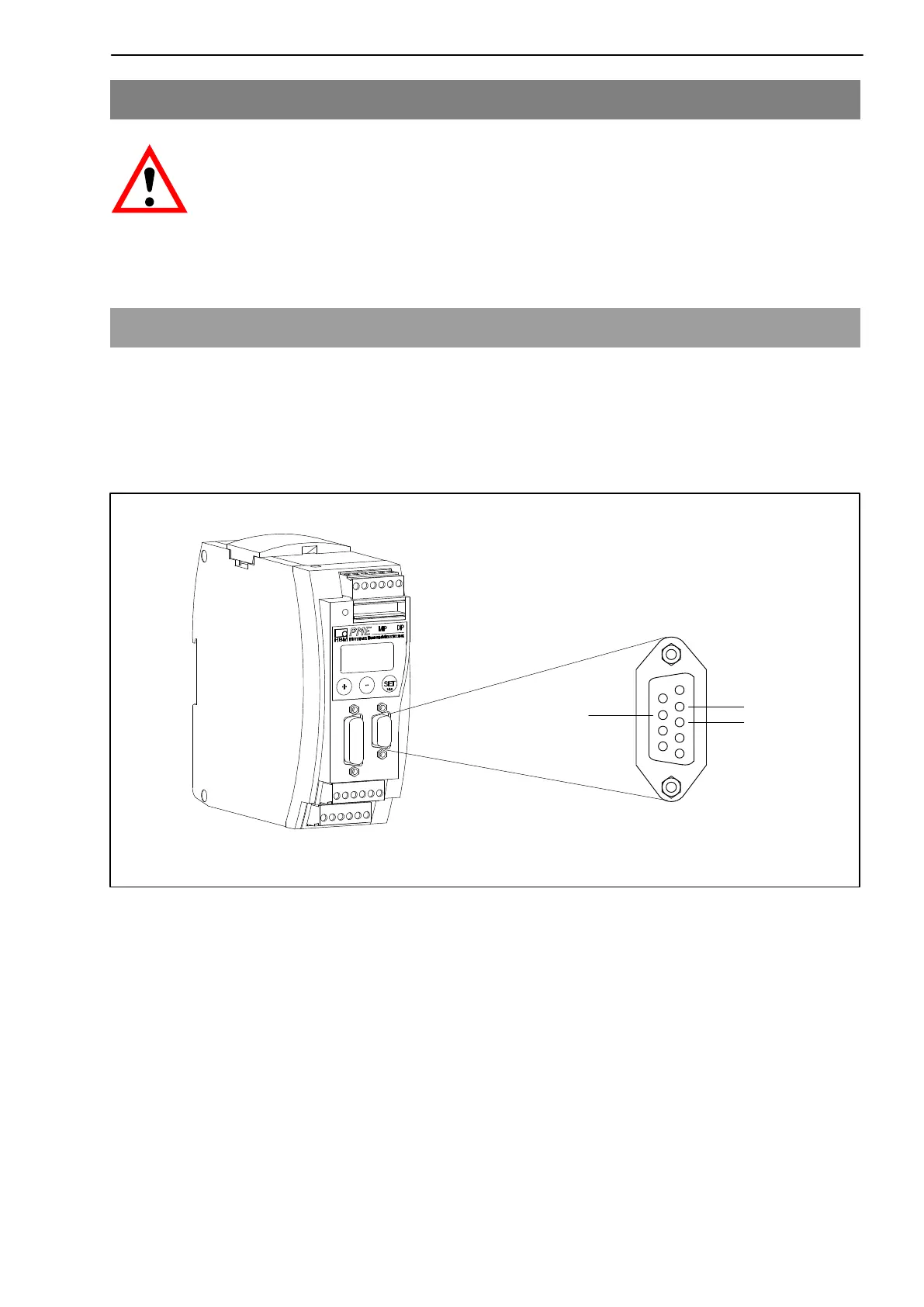

Fig. 4.1: Profibus connection in accordance with standard
