HBM MP60DP - 3 Installation

8
PME−MP60DP
HBM A0623-6.1 en/de/fr
3 Installation
• Connect the MP60DP module to a 24 V supply voltage.
• Connect the Profibus cable to the MP60DP module. Ensure that a
terminating resistance is connected to the first and last Profibus unit (the
housing of the Profibus connector usually contains a sliding switch for this
purpose).
Example:
PLC
First device in
the bus line
Last device in
the bus line
sliding switch of Profibus
connector to ”Resistance ON”
sliding switch of Profibus connector to
”Resistance ON” .
Profibus
connector
Profibus
connector

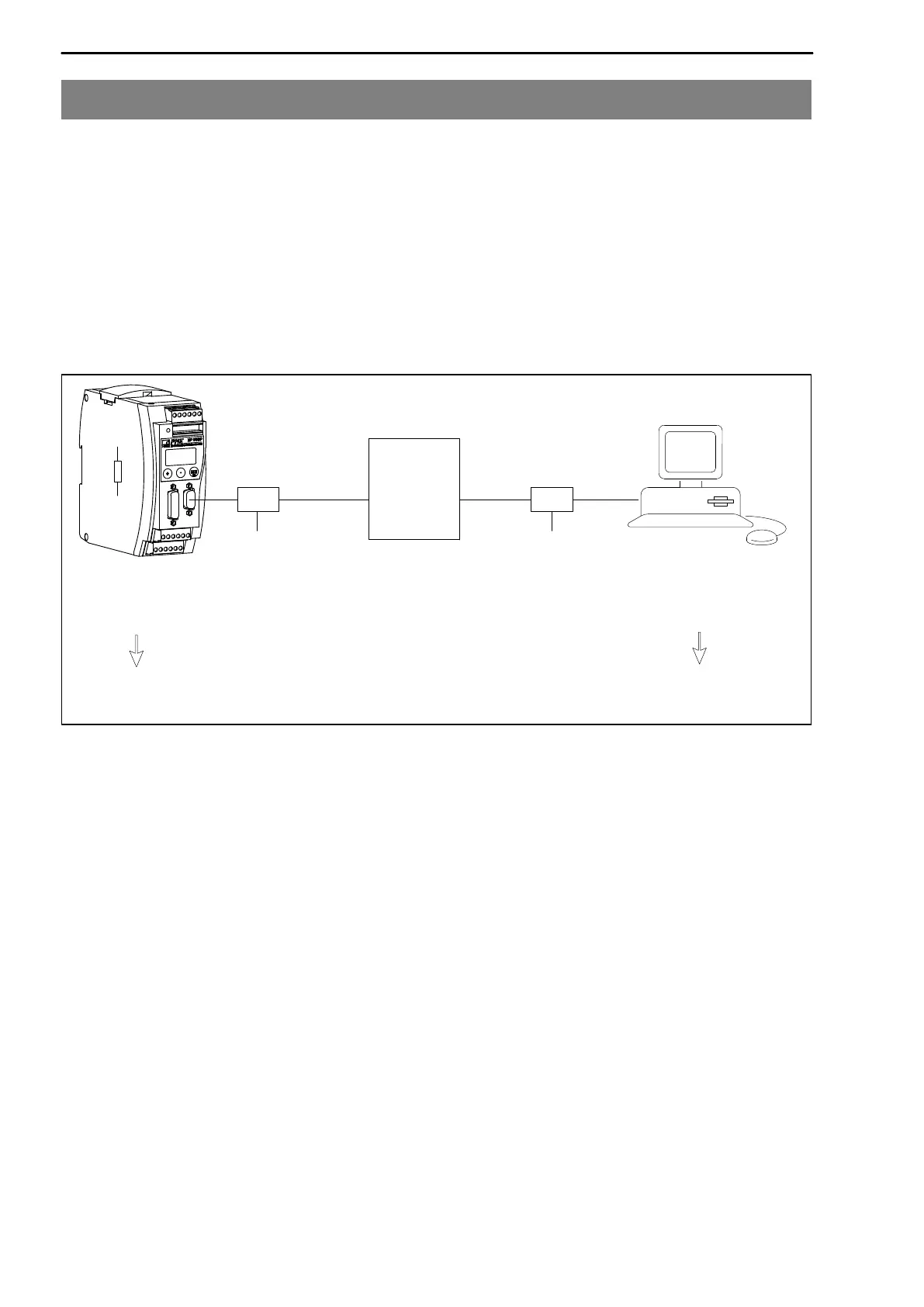

Fig. 3.1: Profibus operation
