HBM T40B - T40 B 5 Knm, Option 7, Code S

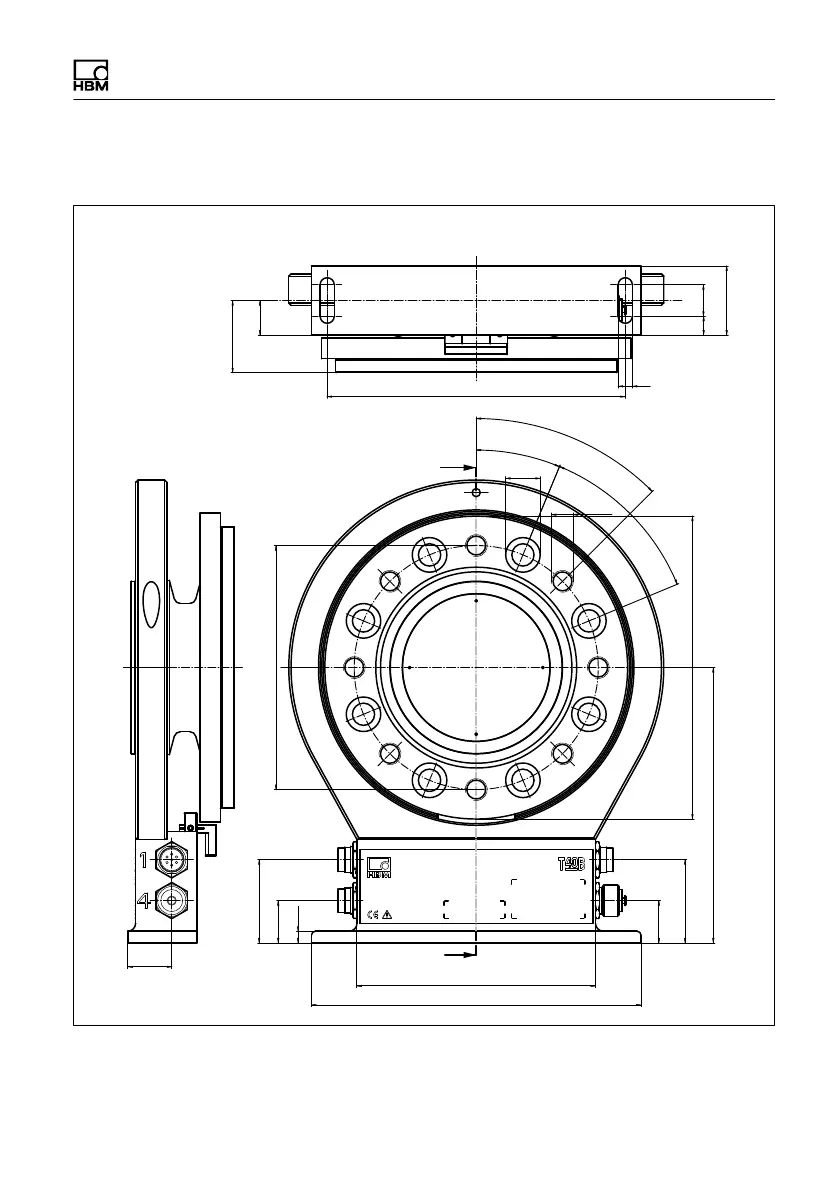

Dimensions | Abmessungen
T40B A3452-10.0 121
15.2.9 T40B 5kNm, Option 7, Code S
28
∅155,5
210
152
27
53
27
53
175,5
∅193
∅22
M14
22,5°
45°
8 x 45° = 360°
45°
7,5
A
A
(22)
(46)
190
9
12
20
44
Montagemaß
Mounting
dimensions
Dimensions in mm (1 mm = 0.03937 inches) | Abmessungen in mm
