HBM T40B - Rotor and Stator Installation

Mechanical installation
24 A3452-10.0 T40B
5.4.1 Installation without dismantling the antenna
ring, Option 7, Code U with antenna shielding
cover
Mounting supplied
by customer

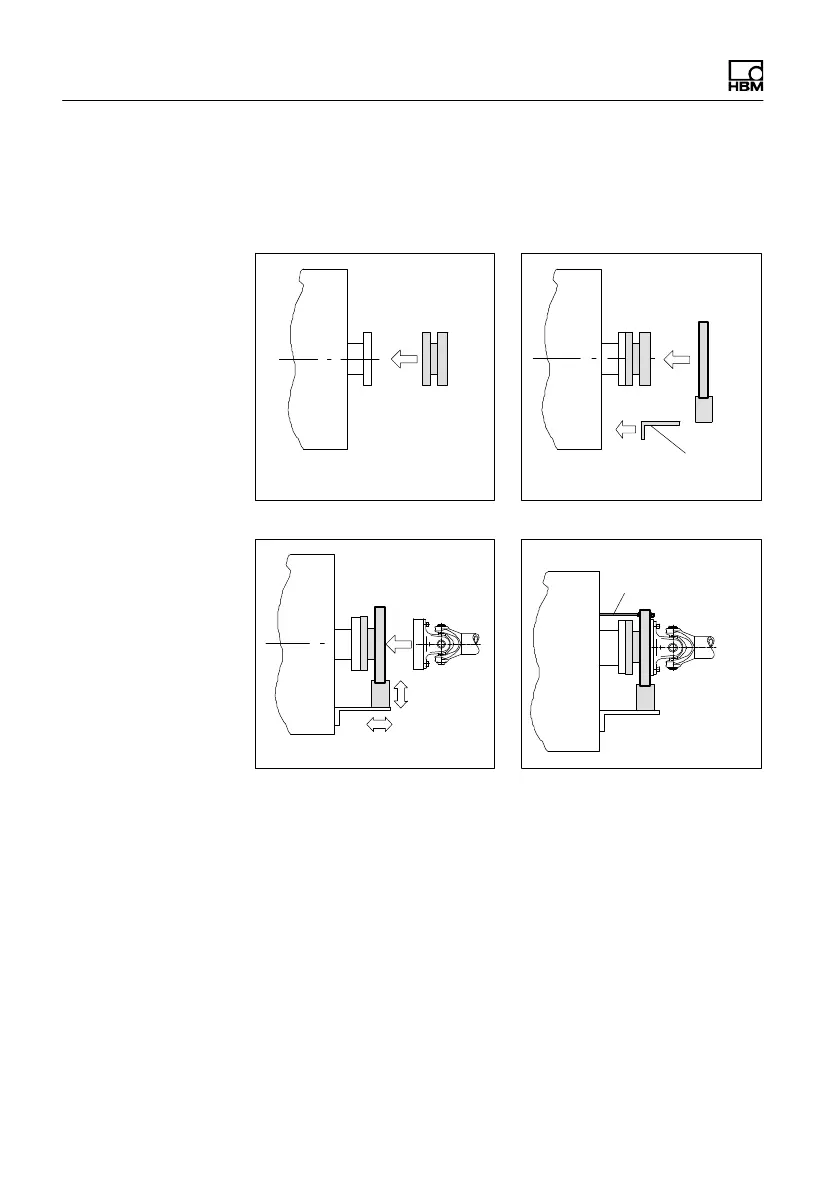

1. Install rotor 2. Install stator
3. Finish shaft train installation 4. Fit support
Support supplied
by customer
