HBM T40B - T40 B 50 Nm, 100 Nm, Option 7, Code U

Dimensions | Abmessungen
T40B A3452-10.0 83
15.1.2 T40B 50 Nm, 100 Nm, Option 7, Code U

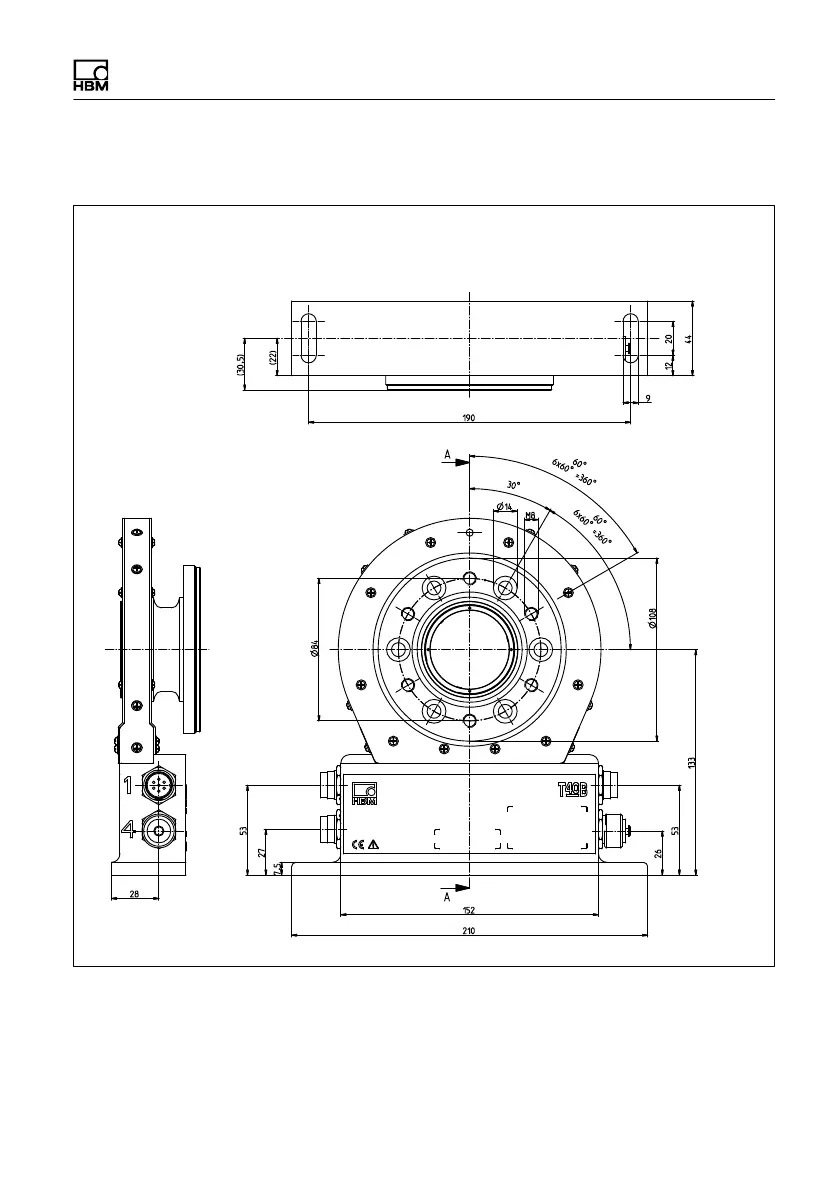

Dimensions in mm (1 mm = 0.03937 inches) | Abmessungen in mm
Screw head height (Shielding plates) = 2.5 mm |
Schraubenkopfhöhe (Abschirmungsplatten) = 2,5 mm
Montagemaß
Mounting
dimensions
