Mechanical installation
T40B A3452-10.0 25
5.4.2 Installation with subsequent stator mounting,
Option 7, Code S
Fan‐type
lock
washers
Washers

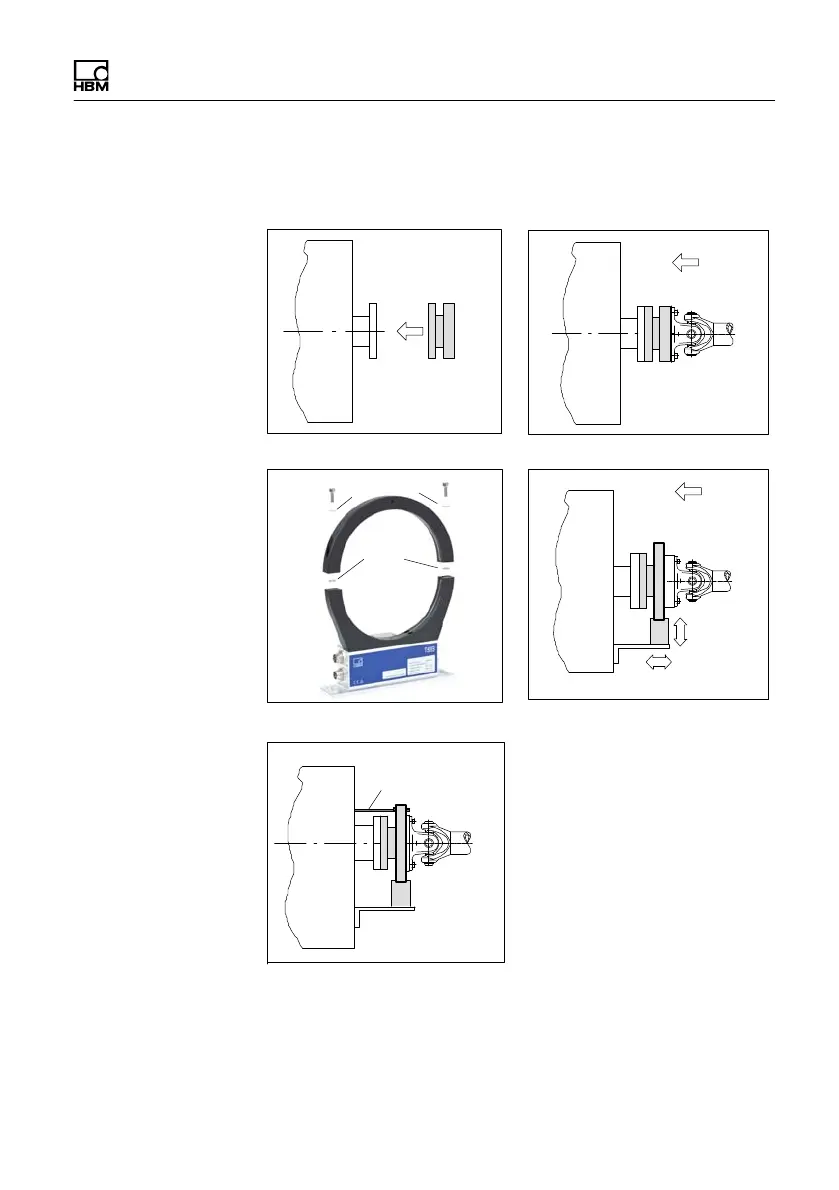

1. Install rotor 2. Install shaft train
3. Dismantle antenna segment 4. Install antenna segment
Support supplied
by customer
5. Fit support
