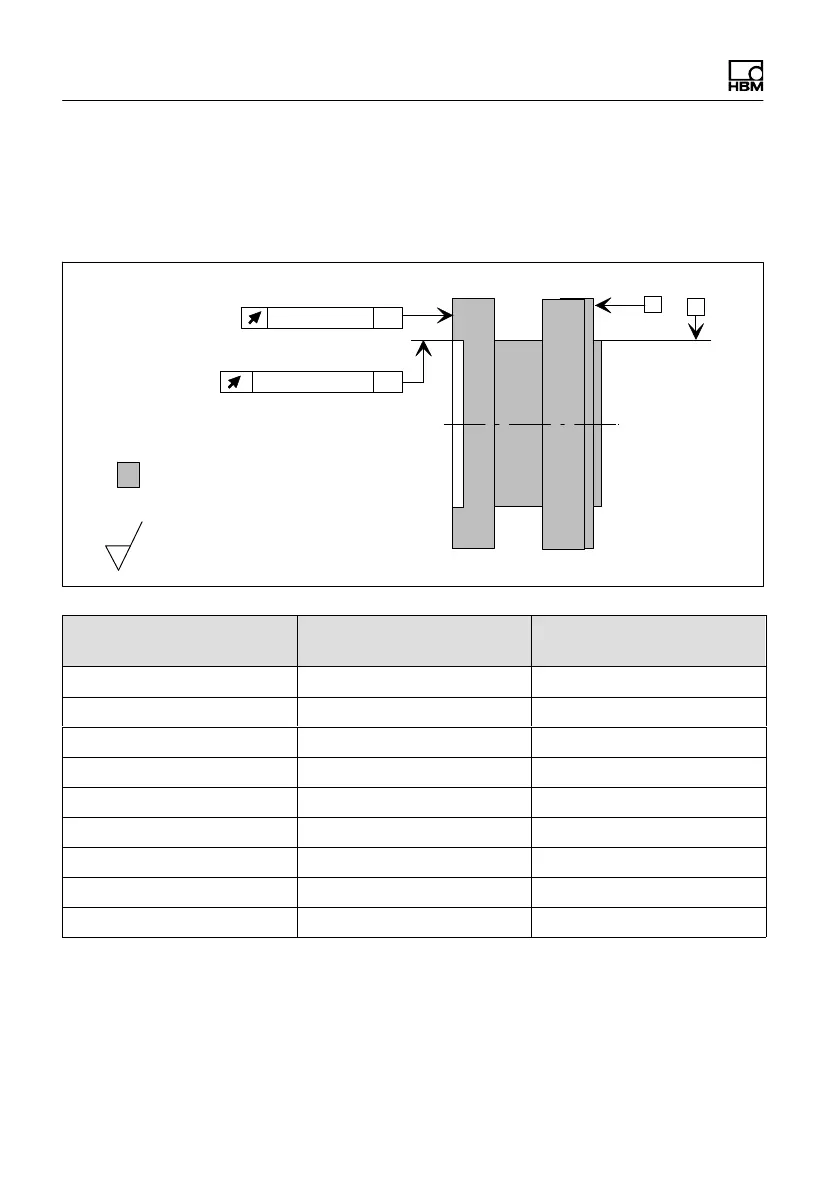

Axial and radial run‐out tolerances
Internal centering
A
Axial run‐out AB
B
Hardness 46 to 54 HRC
Surface quality of the axial and radial
run‐out tolerances (A, B and AB)
0.8
Radial run‐out
AB
Measuring range (NVm) Axial run‐out tolerance
(mm)
Radial run‐out tolerance
(mm)
50 0.01 0.01
100 0.01 0.01
200 0.01 0.01
500 0.01 0.01
1 k 0.01 0.01
2 k 0.02 0.02
3 k 0.02 0.02
5 k 0.02 0.02
10 k 0.02 0.02
To ensure that the torque flange retains its properties
once it is installed, we recommend that the customer also
chooses the specified form and position tolerances, sur
face quality and hardness for the connections provided.
