HBM T40B - T40 B 5 Knm, Option 7, Code U

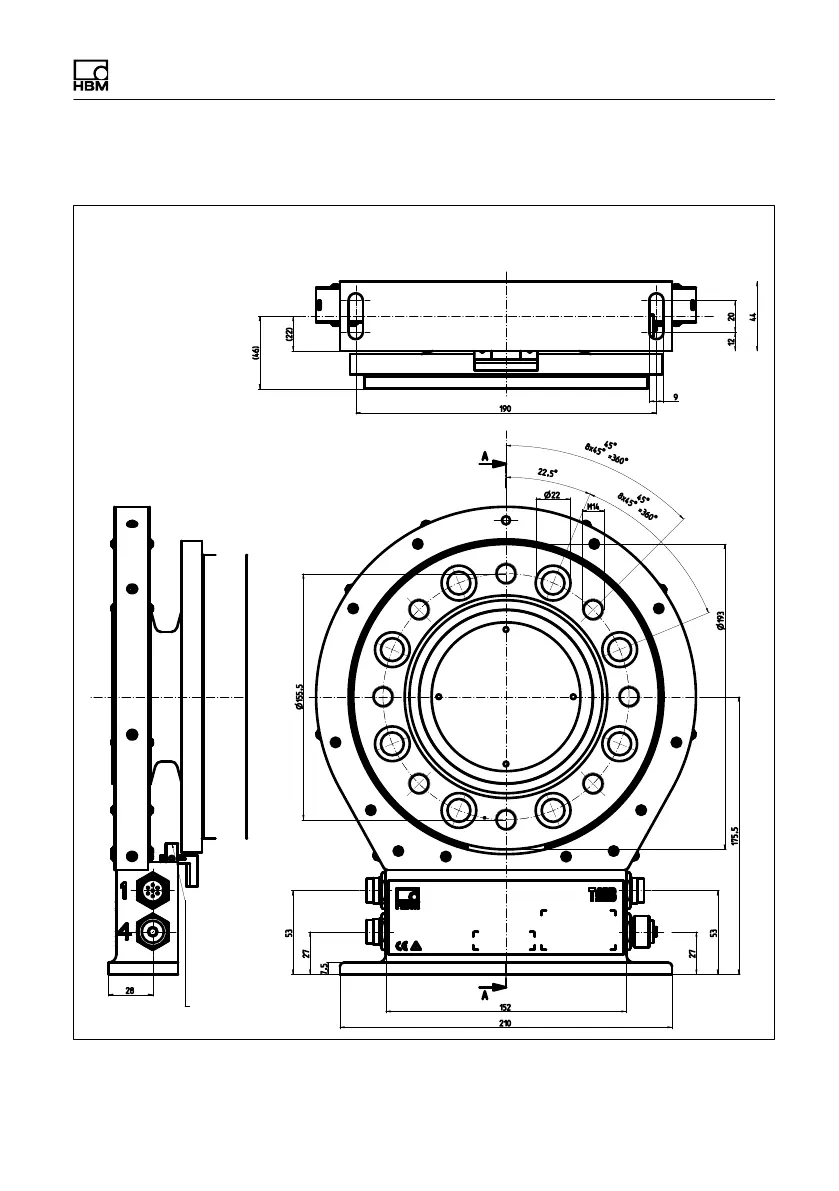

Dimensions | Abmessungen
T40B A3452-10.0 123
15.2.10T40B 5 kNm, Option 7, Code U
Dimensions in mm (1 mm = 0.03937 inches) | Abmessungen in mm
Screw head height (Shielding plates) = 2.5 mm |
Schraubenkopfhöhe (Abschirmungsplatten) = 2,5 mm
Montagemaß
Mounting
dimensions
Only
Option 6,
Code A
Nur
Option 6,
Code A
