Mechanical installation
T40B A3452-10.0 31
Dismounted shielding plates
Axial shielding
plates
Radial shielding
plate

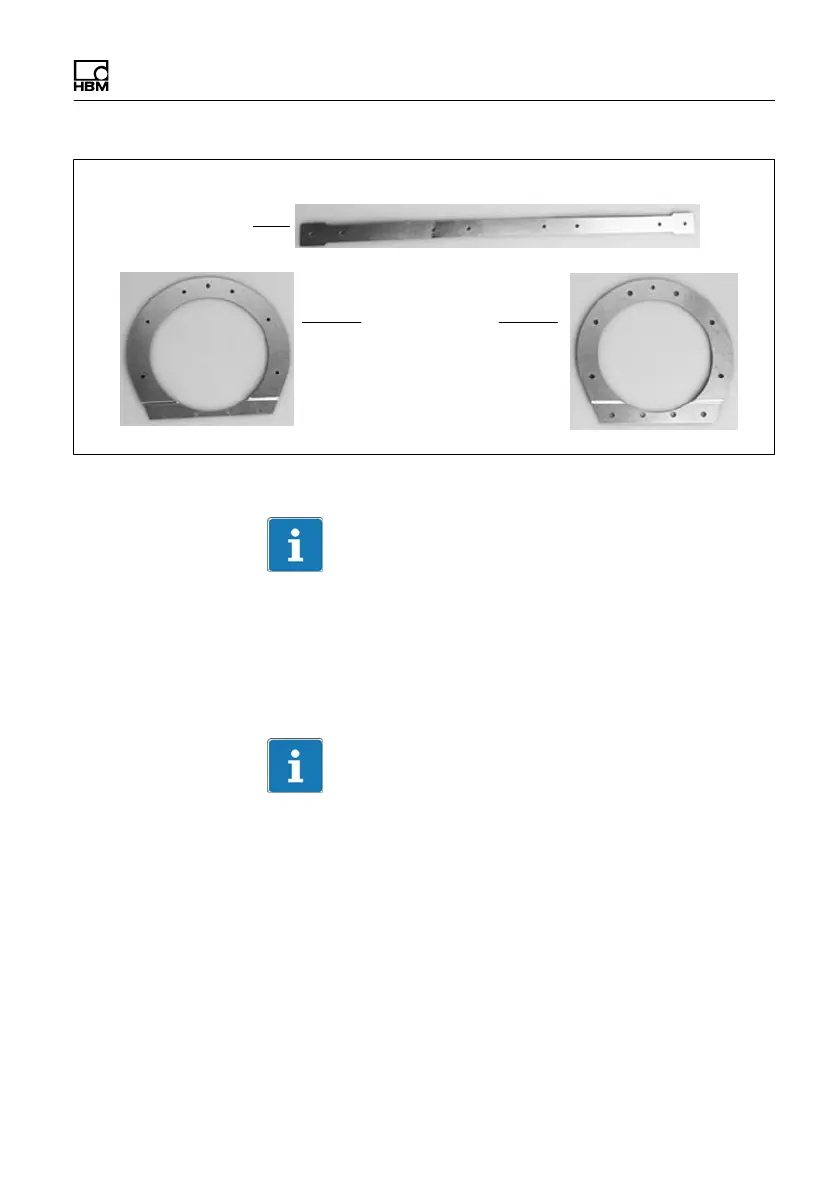

Fig. 5.4 Individual shielding plates, Option 7, Code U
Important
The use of the shielding plates are important to ensure
compliance with FCC regulations. If the shielding plates
has to be removed for any purpose (e.g. installation or
maintenance), they must be replaced in the original posi
tion before the product is used.
Important
If the shielding plates has to be removed for installation
or maintenance, tighten the screws to fix the shielding
plates with a tightening torque of 0.6 Nm
