Mechanical installation
T40B A3452-10.0 35

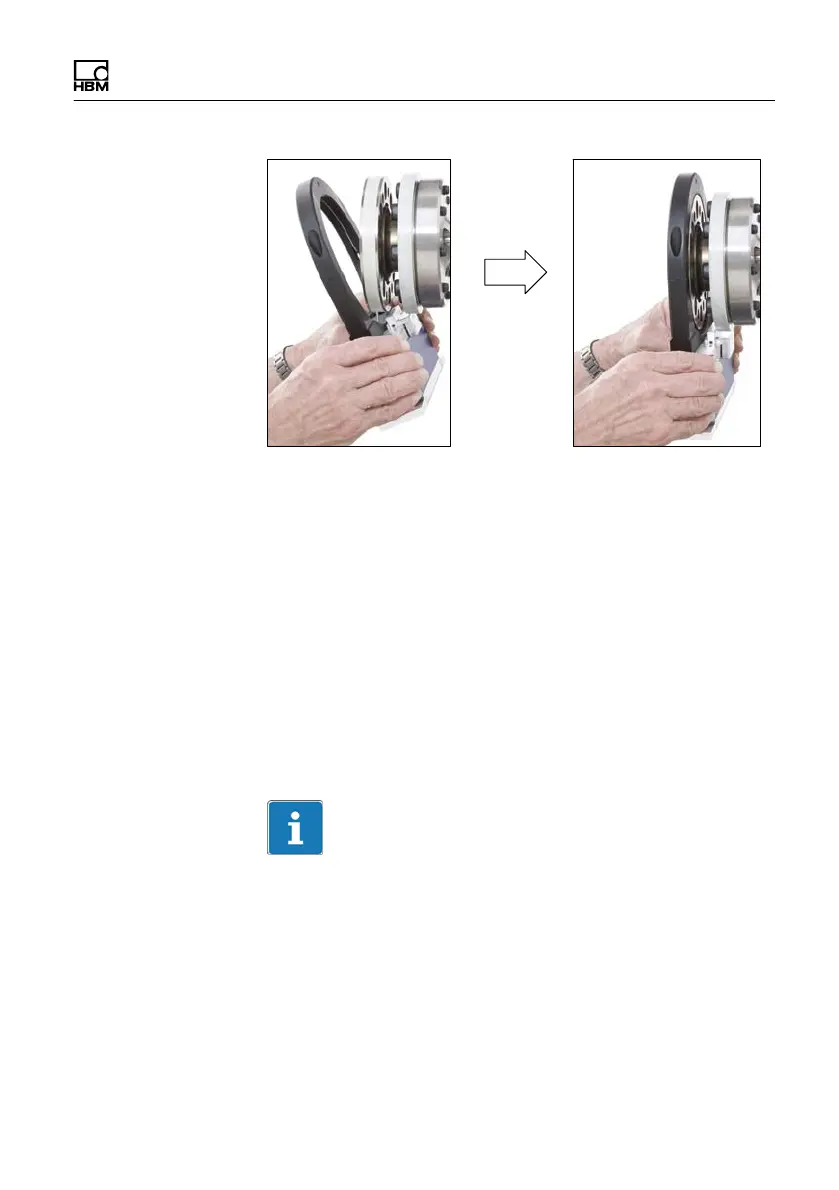

Fig. 5.7 Alignment of the rotor with the stator (with a
reference signal sensor), Option 7, Code S and U
6. Now fully tighten the bolted stator housing connection.
Prevention of axial stator oscillation
Depending on the operating conditions, the stator may be
induced to oscillate. This effect is dependent on:
S the rotational speed,
S the antenna diameter (depends in turn on the measur
ing range),
S the design of the machine base.
Important
To prevent this axial oscillation, the antenna ring requires
additional support by the customer. There is a socket
(with an M5 internal thread) on the upper antenna seg
ment, which can be used for a suitable clamping device
(see Fig. 5.8). If this is the case, the cable plug also
needs some support, as shown in the construction exam
ple in Fig. 5.9.
