21
©HBS Bolzenschweiss-Systeme GmbH & Co. KG
All rights reserved – Reprinting, in whole or in part, only with the approval of the manufacturer
9 Welding Process
9 Welding Process
Stud welding with tip ignition is divided into contact stud welding and gap stud wel-
ding. This stud welding unit must be used exclusively for stud welding with contact
and gap.
9.1 Contact Stud Welding

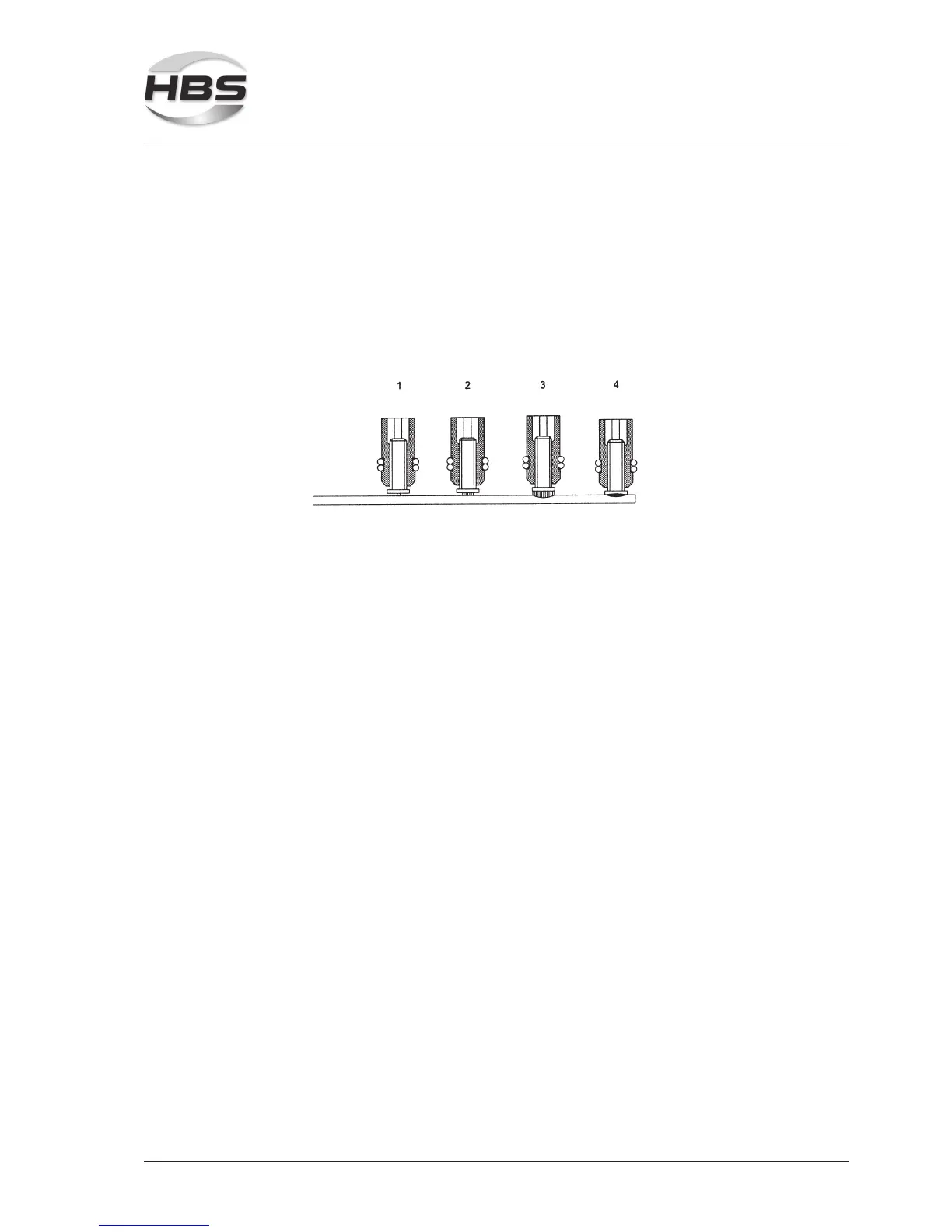

The stud welding gun is placed onto the workpiece (see gure, position 1). The
welding element which projects above the welding gun support legs, is pushed
back tensioning a pressure spring.
After positioning the stud welding gun against the workpiece, the operator pres-
ses the welding gun trigger and starts the welding process; thus the current
circuit is closed.
The capacitors of the stud welding unit are discharged. Because of the high
discharge current, the ignition tip evaporates explosion-like. The air gap between
welding element and workpiece is ionized (see gure, position 2), an arc is pro-
duced.
The light arc melts the face of the welding element together with an area of the
workpiece of about the same dimension (see gure, position 3).
Caused by the pressure spring, the welding element moves to the workpiece with
a speed of 0,5 to 1 m/s. The adjusted spring force controls the plunging speed of
the welding element.
Higher plunging speed leads to shortened arc time and consequently to lower
welding energy with identical voltage setting.
The light arc is cut as soon as the welding element touches the workpiece.
Now the capacitors are short-circuited and the rest of the energy drains off (see
gure, position 4).
The pressure spring continues to push the welding element into the weld pool.
