4K Vertex² – User Manual

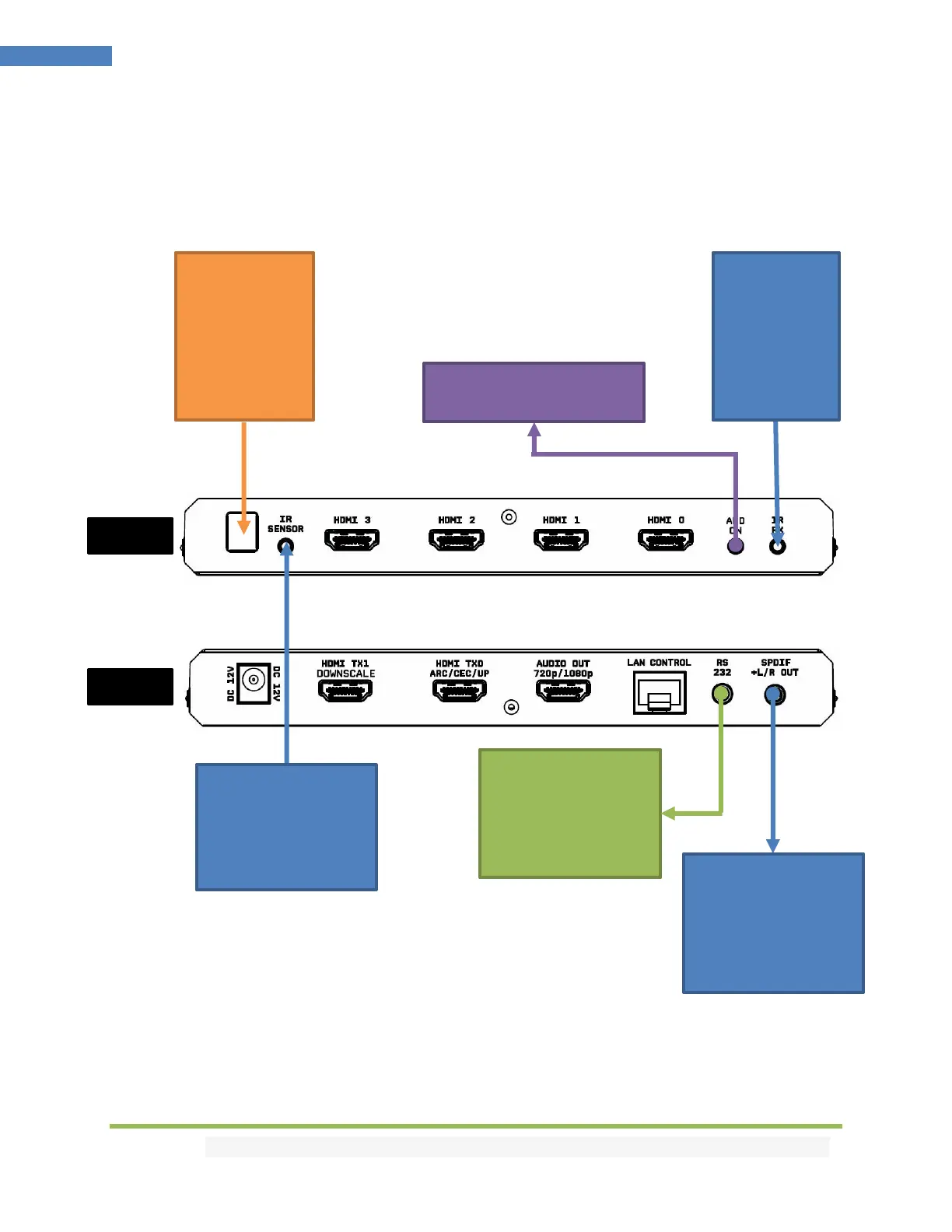

Help on Jack connections
ADD ON IN/OUT
Not yet used.
SPDIF or L/R Analog
OUT
Extract HDMI sound coming
from any source devices at
Vertex² inputs. SPDIF can also
output ARC from TX0
RS232 IN/OUT
Control Vertex² from
Mac/Win/Linux computer or
command any RS232 capable
display or equipment based
on incoming signal types.
INPUT IR
WINDOW
For local Vertex²
Central control. A
system controller will
connect an IR TX LED
on top here.
INPUT JACK
For a direct
connection from
system controller.
It does not use
LED/Light. For local
Vertex² Central
control.
BACK
FRONT
INPUT IR JACK
For an IR RX cable with LED
receiver. In case, for example,
if IR window is not in line of
sight. For Vertex² Central
control.
