4 Planning and installation – Installing the heating system
41
1 Top rear cover
2 Top centre cover
3 Top rear cladding
4 Top left side cladding
5 Bottom left side cladding
6 Bottom rear cladding
7 Base plate
8Ash pan
9 Front cladding
10 Bottom right side cladding
11 Automatic ignition/cleaning system cover (optional)
12 Top right side cladding
13 Top front cover
B
ASE PLATE
1. Slide the base plate (3) under the boiler until the holes (3) in the
base plate overlap into the recesses (1) in the base.

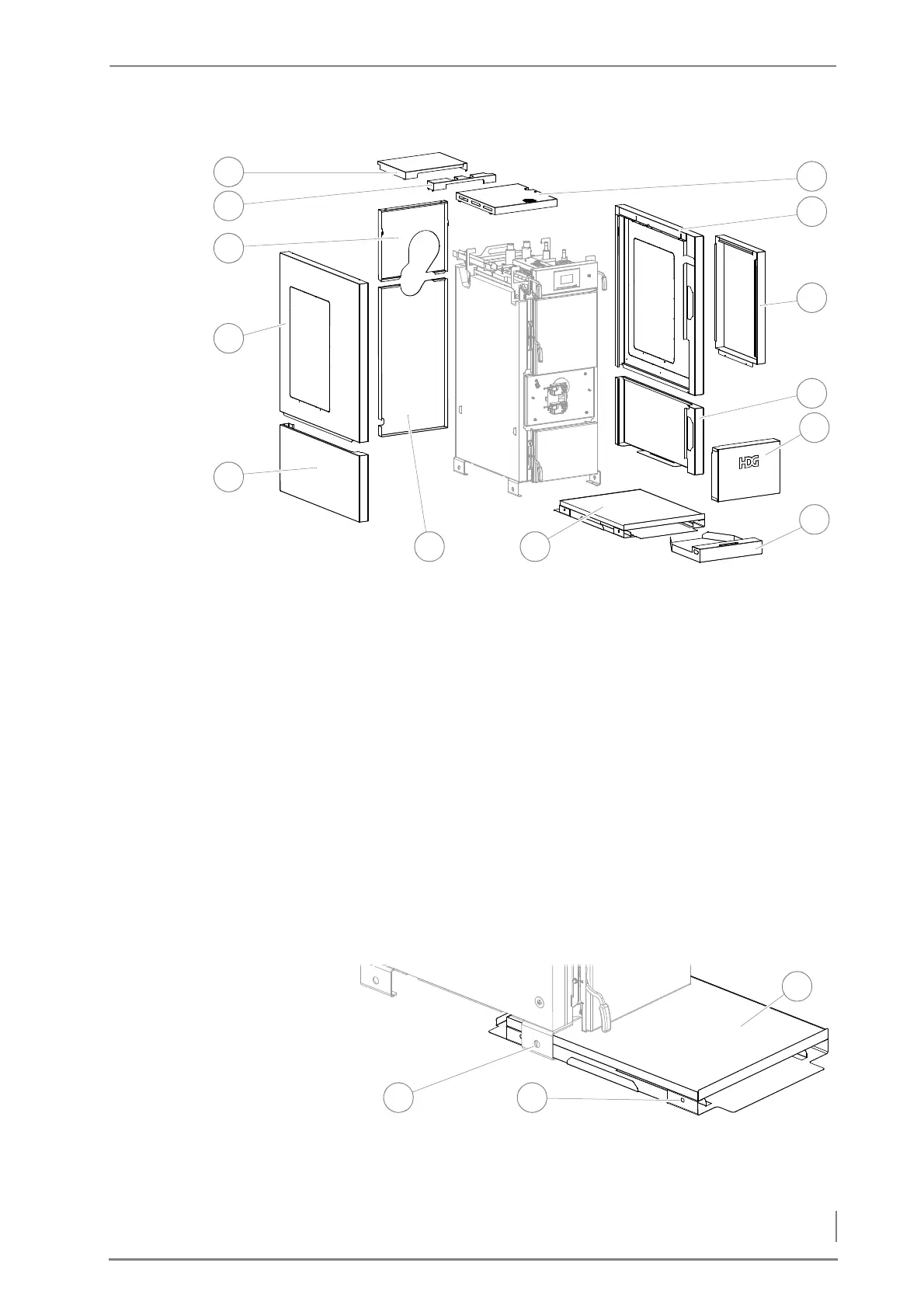

Figure 4/16 - Overview of cladding parts
3
4
1
2
5
6 7
8
9
10
12
13
11
Figure 4/17 - Sliding in the base plate
2
3
1
