4 Planning and installation – Installing the heating system
42
SIDE CLADDING
2. Hang the lower side cladding (4) with the recess in the base plate
(3) and in the two bottom cladding brackets (1 + 2).
3. If necessary, clear out the small perforated recess (3) from the right
side cladding (1) using a side cutter or hacksaw and deburr the
opening.

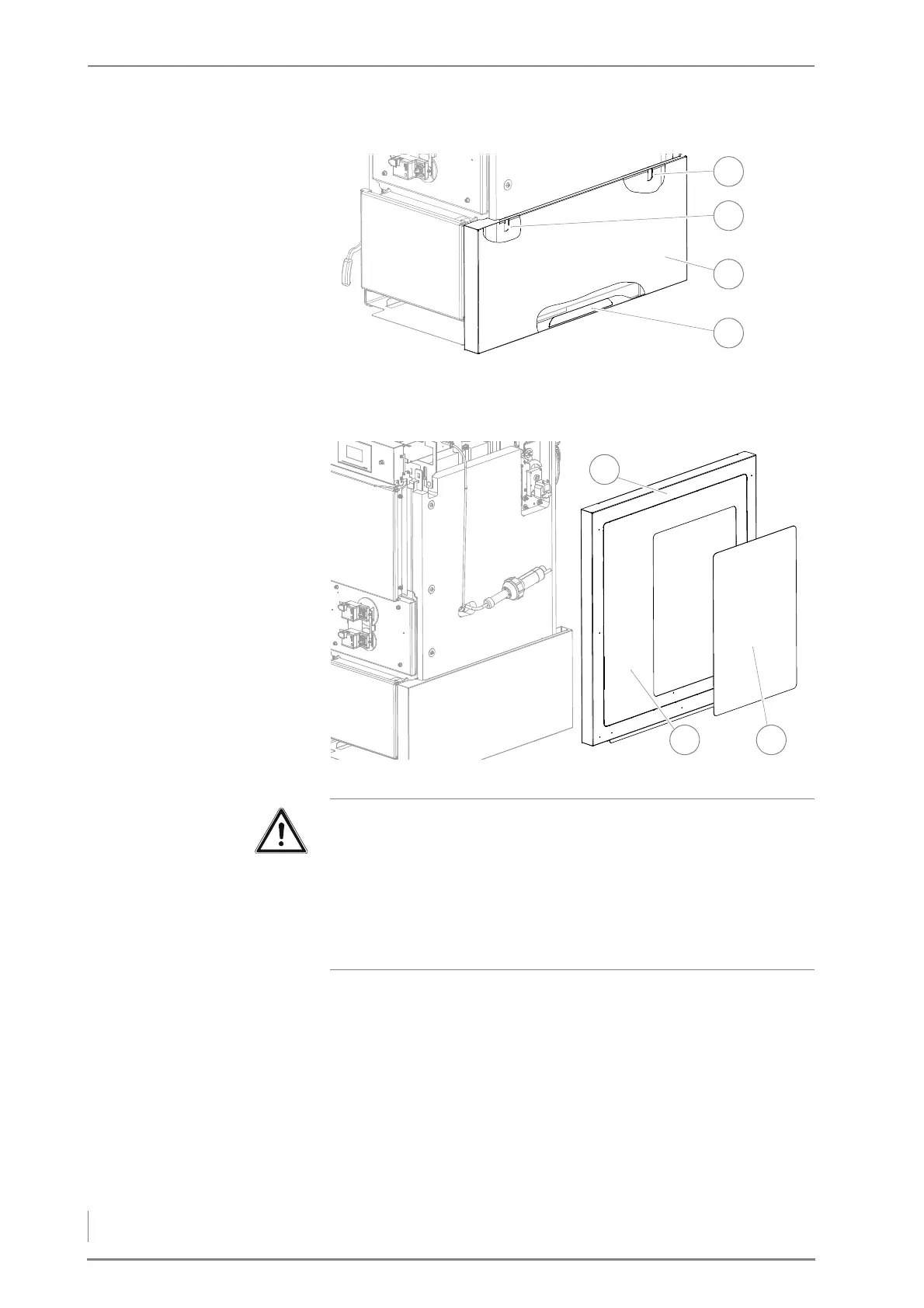

Figure 4/18 - Fitting the lower side cladding
3
2
4
1
Figure 4/19 - Fitting the upper side cladding
1
32
Important!
The small perforated recess (3) only needs to be cleared out if the
boiler is equipped with the HDG automatic ignition system and/or
HDG automatic cleaning system.
The large perforated recess (2) only needs to be cleared out if the
boiler is configured as HDG F Hybrid for combined use with a HDG
K Hybrid pellet unit.
