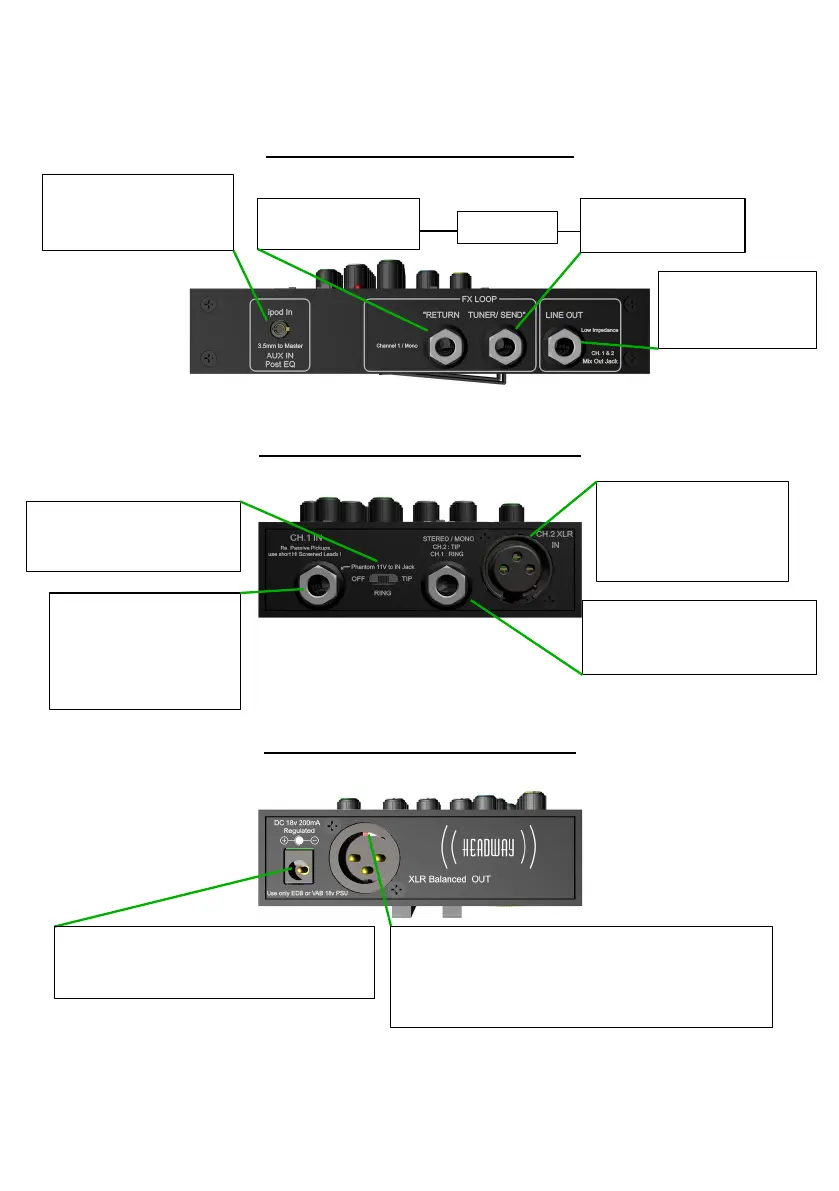

D. I. / XLR LINE OUT
Balanced Line Output XLR (CH1/CH2 or MIX)
Does not accept Phantom Power From Mixer
but EDB-2 H.E not damaged
AUX IN / iPOD INPUT
3.5mm Mini Jack
Post EQ to Master Vol.
RETURN
Mono: Ch.1 to Tip
SEND
Mono: Ch.1 to Tip
LINE OUT
Low Impedance
Mono Mix Jack Out
CH.1 JACK IN
Switchable Phantom to
Tip/Ring Powers
Electret Mics & suitable
Active Pickups
PHANTOM POWER 11V
TO CH.1 JACK IN
SWITCH OFF/ RING/ TIP
CH.2 MIC/XLR IN
Balanced with Phantom
Power Option
(See XLR SWITCH)
CH.2 Stereo/Mono JACK IN
Routes Stereo to Both
Channels if no Jack in CH.1
EXT. POWER IN
18v DC Adapter Input Connector
Use ONLY Headway EDB – PSU
FX LOOP
