Heal Force EB03 - Control and Display Panel

Operation manual

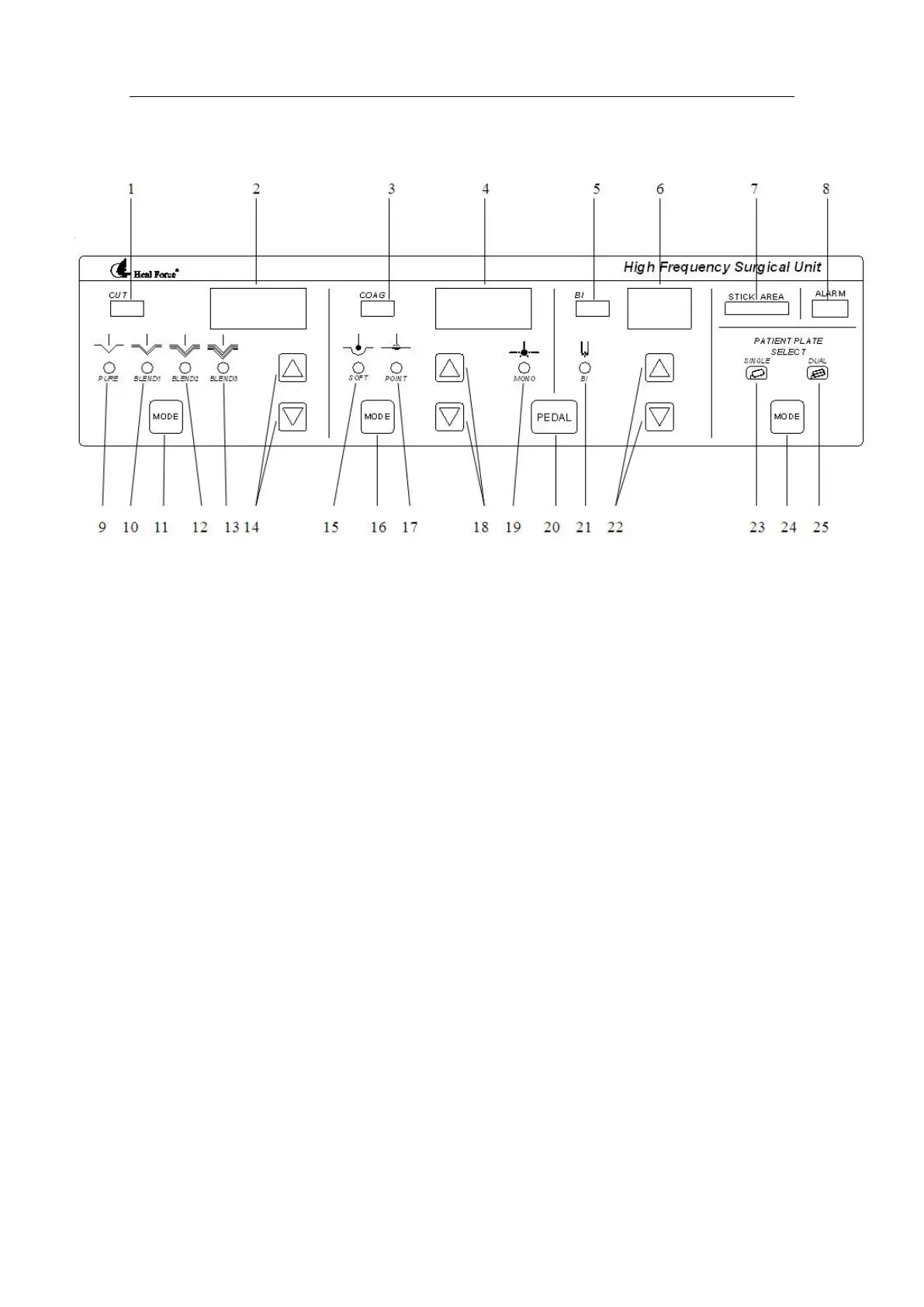

Control and Display Panel
Operation State
1
LED - Cut
2 Display - Cut Power
3 LED - Monopolar Coag
4 Display - Monopolar Coag Power
5 LED - Bipolar Coag
6 Display - Bipolar Coag Power
7 LED - Patient Plate Stick Area
8 LED - Alarm
9 LED - Pure Cut
10 LED - Blend1
11 Switch - Cut Mode Selection
12 LED - Blend2
13 LED - Blend3
1
4 Switch - Increase/Decrease Power Value
15 LED - Soft Coag
16 Switch - Monopolar Coag Mode Selection
17 LED - Spot Coag
18 Switch - Increase/Decrease Monopolar Coag Power Value
19 LED - Pedal Switch Monopolar
20 Switch - Pedal Switch Monopolar/Bipolar Selection
21 LED - Pedal Switch Bipolar
22 Switch - Increase/Decrease Bipolar Coag Power Value
23 LED - Single Patient Plate
24 Switch - Patient Plate Single/Dual Mode Selection
25 LED - Dual Patient Plate
Heal Force EB03
