Operation manual
Accessories

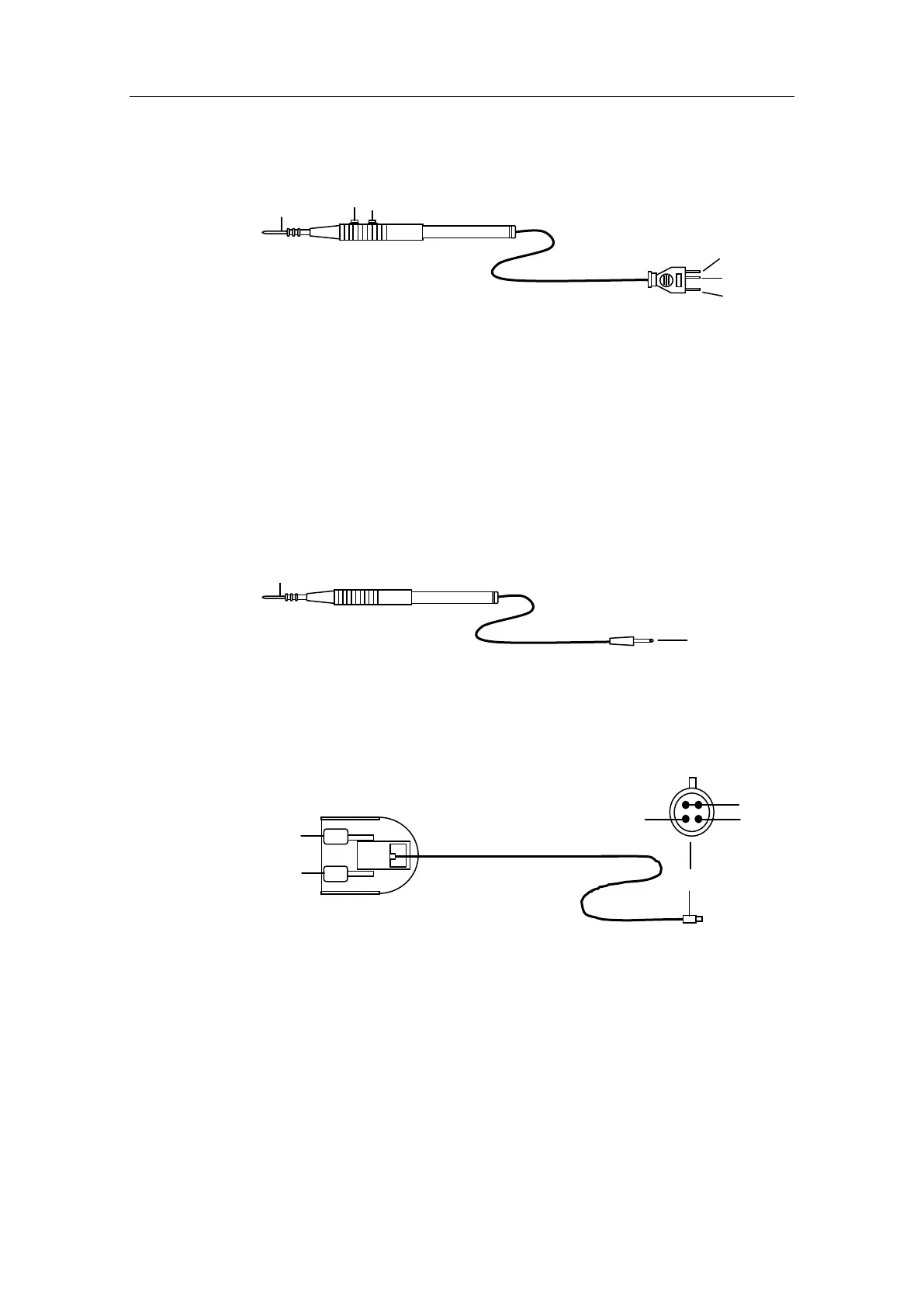

Hand Control Pencil
① Button “Cut” ② Button “Coag” ③ Electrode
a cut end b Coag end c common end
● The electrode ③ is communicated with the common end c
● Press cut button ①, the cut end a is communicated with the common
end c
● Press coag button ②,the coag end b is communicated with the
common end c
Foot Control Pencil
① Electrode ② Plug
● The electrode ① is communicated with plug ②
Pedal Switch
① cut pedal ② coag pedal ③ plug
a cut end b coag end c common end
● Step on cut pedal ①,the cut end a of the plug ③ is communicated
with common end c
● Step on coag pedal ②, the coag end b of the plug ③ is communicated
with common end c
①
②
③
a
c
b
①
②
①
②
③
c
a
b
