INSTALLATION
Foreasyinstallation,selectanexistinglightwithawall
switchforreplacement.
Forbestperformance,mountthextureabout8ft.(2.4m)
abovetheground. NOTE: Ifxtureismountedhigherthan
8ft.(2.4m),aimingthesensordownwillreducecoverage
distance.

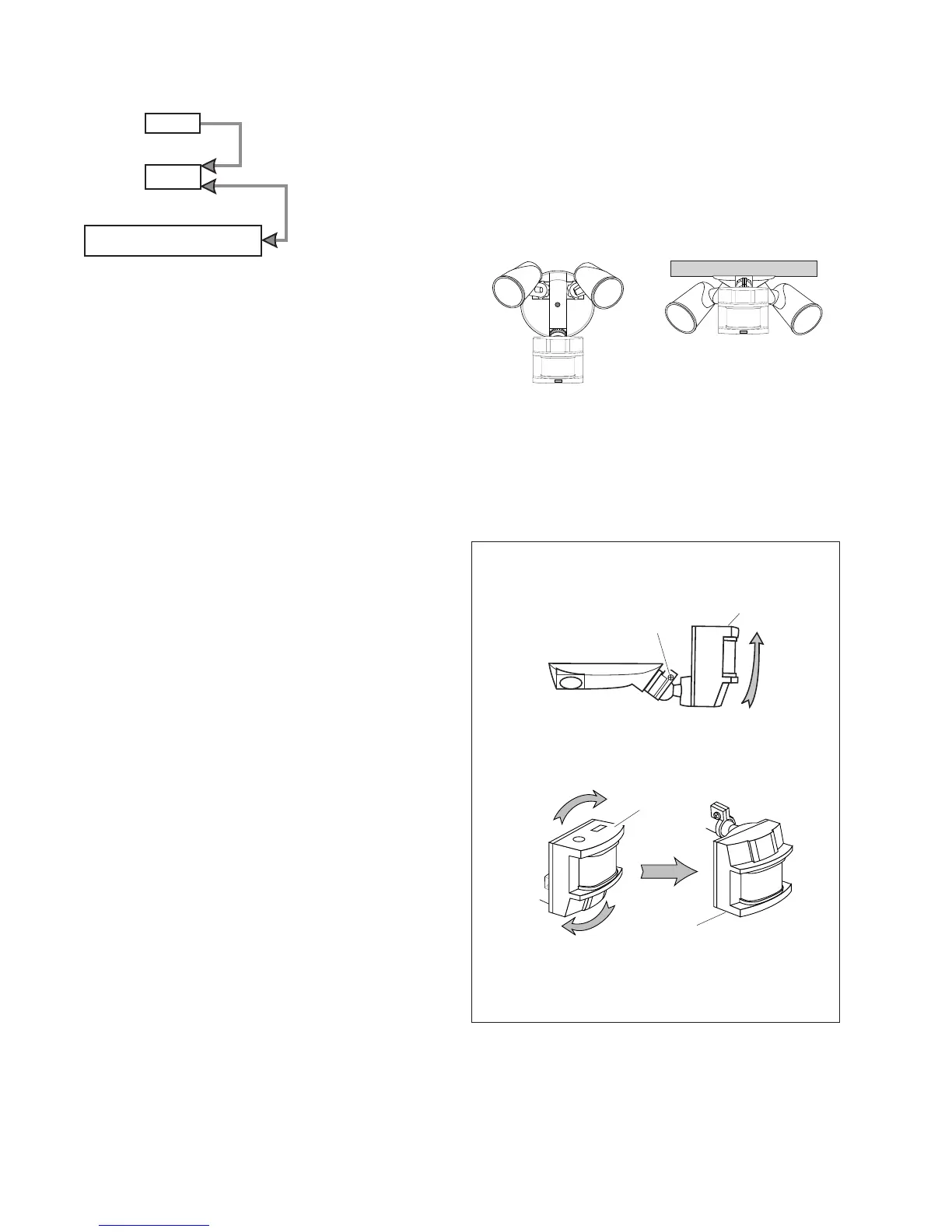

Foreavemountonly:
❒Swingthesensorheadtowardstheclampscrew
joint.
If thesensorpops out oftheball joint, loosenthe
clampscrewandpushthesensorbackintotheball
joint.Tightentheclampscrewwhendone.
❒Thenrotatethesensorheadclockwise180°sothe
controlsfacedown.
Controls
Wall Mount Eave Mount
For under eave installation, the sensor head must
be rotatedasshowninthenexttwostepsforproper
operationandtoavoidtheriskofelectricalshock.
Controls
Controls
ClampScrew
Move ON-TIME Switch to
1, 5, or 10 minutes
Mode Switching Summary
Flip light switch off
for one second then
back on*
MANUAL MODE
AUTO
TEST
* Ifyougetconfusedwhileswitchingmodes,turnthe
poweroffforoneminute,thenbackon.Afterthecali-
brationtimethecontrolwillbeintheAUTOmode.
