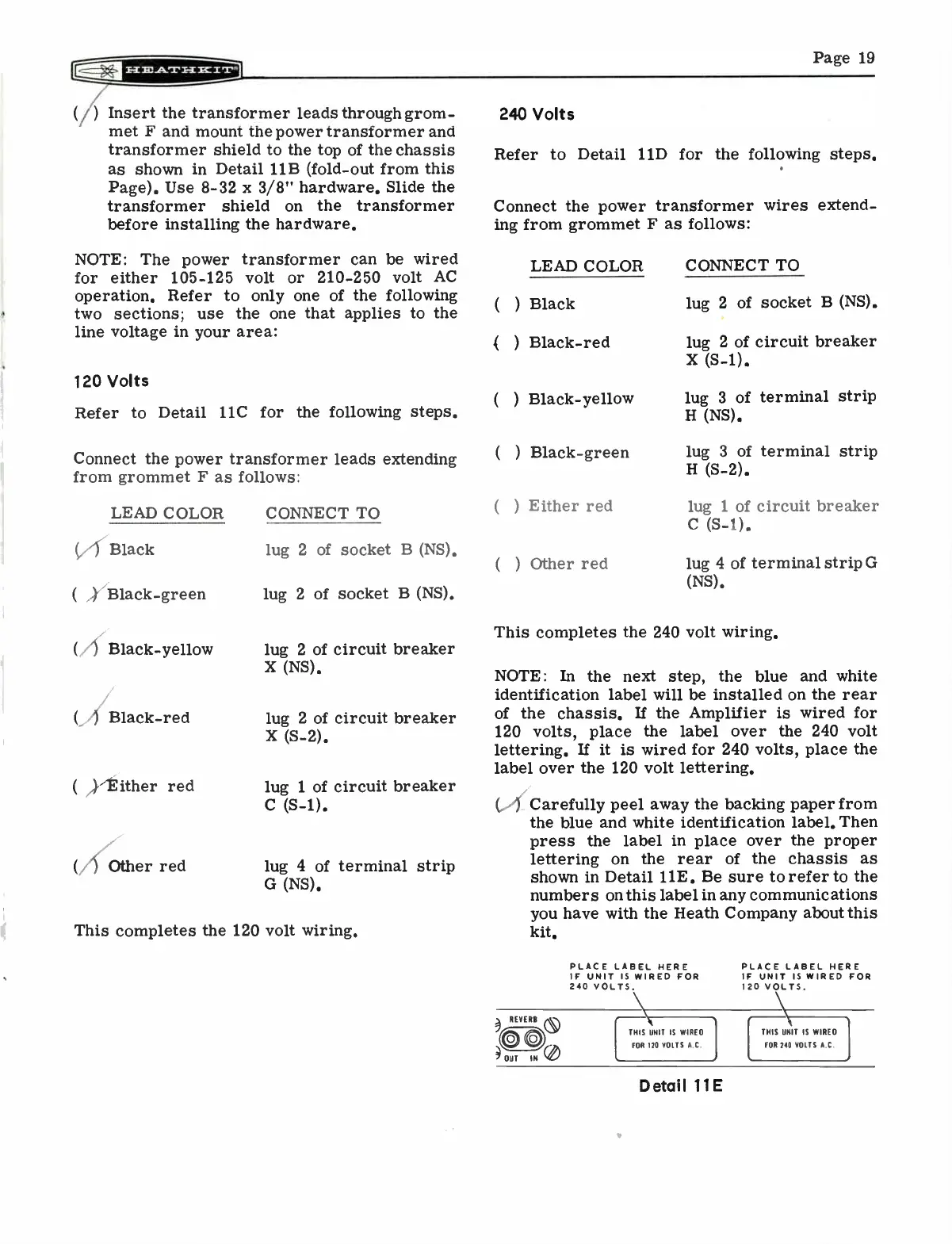

Page
19
Insert
the
transformer
leads
through
grom-
met
F
and
mount
the
power
transformer
and
transformer
shield
to
the
top
of
the
chassis
as
shown
in
Detail
11B
(fold-out
from
this
Page).
Use
8-32
x
3/8"
hardware.
Slide
the
transformer
shield
on
the
transformer
before
installing
the
hardware.
NOTE:
The
power
transformer
can
be
wired
for
either
105-125
volt
or
210-250
volt
AC
operation.
Refer
to
only
one
of
the
following
two
sections;
use
the
one
that
applies
to
the
line
voltage
in
your
area:
120
Volts
Refer
to
Detail
11C
for
the
following
steps.
Connect
the
power
transformer
leads
extending
from
grommet
F
as
follows:
LEAD
COLOR
Black
( )
Black-green
( )
Black-yellow
( )
Black-red
( )
Either
red
(,,
Other
red
CONNECT
TO
lug
2
of
socket
B
(NS).
lug
2
of
socket
B
(NS).
lug
2
of
circuit
breaker
X
(NS).
lug
2
of
circuit
breaker
X
(S-2).
lug
1
of
circuit
breaker
C
(S-1).
lug
4
of
terminal
strip
G
(NS).
This
completes
the
120
volt
wiring.
240
Volts
Refer
to
Detail
11D
for the
following
steps.
Connect
the
power
transformer
wires
extend-
ing
from
grommet
F
as
follows:
( )
( )
LEAD
COLOR
Black
Black-red
( )
Black-yellow
( )
Black-green
( )
Either
red
( )
Other
red
CONNECT
TO
lug
2
of
socket
B
(NS).
lug
2
of
circuit
breaker
X
(S-1).
lug
3
of
terminal
strip
H
(NS).
lug
3
of
terminal
strip
H
(S-2).
lug
1
of
circuit
breaker
C
(S-1).
lug
4
of
terminal
strip
G
(NS).
This
completes
the
240
volt
wiring.
NOTE:
In
the
next
step,
the
blue
and
white
identification
label
will
be
installed
on
the
rear
of
the
chassis.
If
the
Amplifier
is
wired
for
120
volts,
place
the label
over
the
240
volt
lettering.
If
it
is
wired
for
240
volts,
place
the
label
over
the
120
volt
lettering.
)
Carefully
peel
away
the
backing
paper
from
the
blue
and
white
identification
label.
Then
press
the label
in
place
over
the
proper
lettering
on
the
rear
of
the
chassis
as
shown
in
Detail
11E.
Be
sure
to
refer
to
the
numbers
on
this
label
in
any
communications
you have
with
the
Heath
Company
about
this
kit.
PLACE
LABEL HERE
IF
UNIT
IS
WIRED
FOR
240
VOLTS.
PLACE
LABEL HERE
IF
UNIT
IS
WIRED
FOR
120
VOLTS,
REVERS
®
Pee")
-
OUT
IN
TrHoIRS 1111
/1
0
IT
VO
ILST Ws IA
RE
CD
THIS
UNIT
IS
WIRED
FOR
240
VOLTS
A
C.
Detail
11E
