Page
14
6-32x3/8"
SCREW

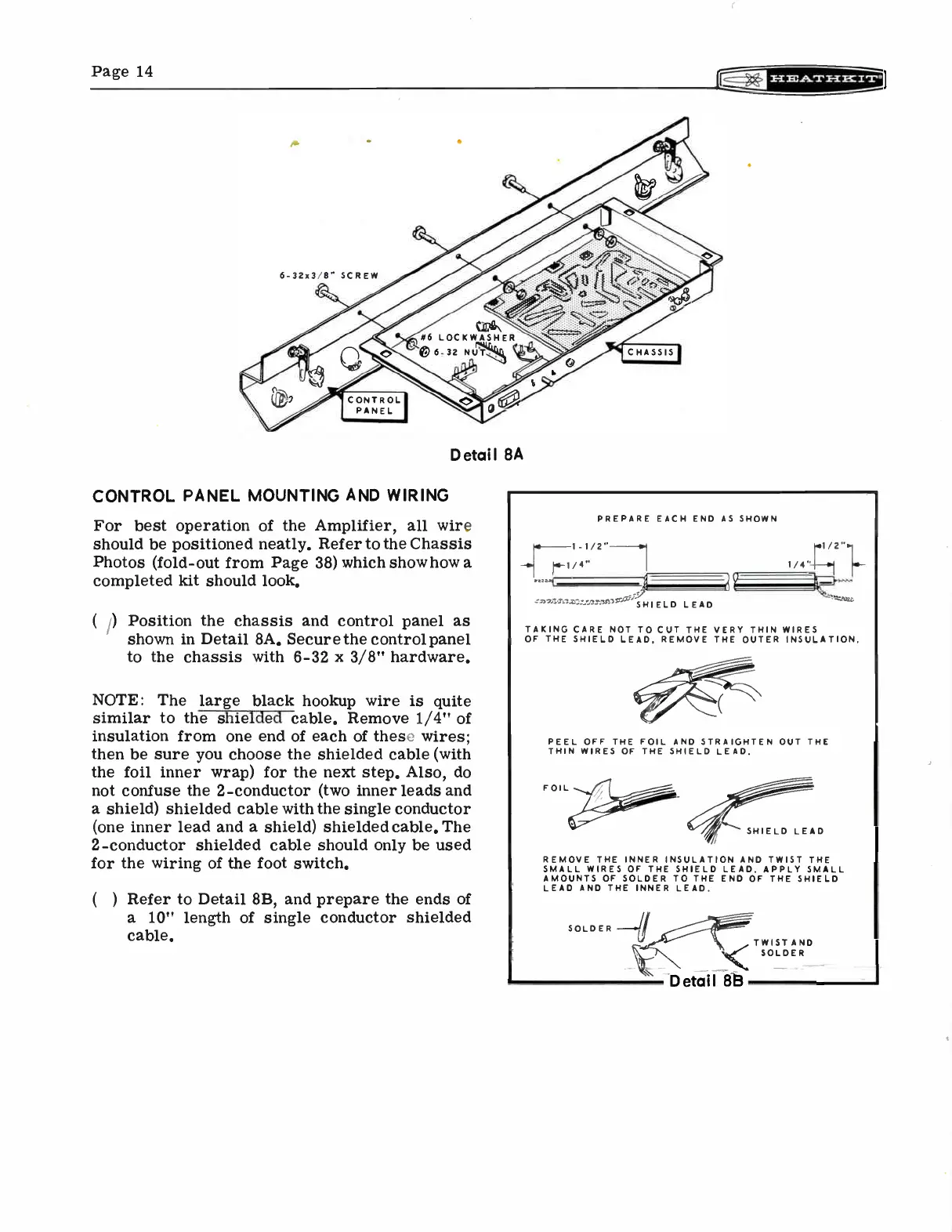

Detail
8A
CONTROL
PANEL
MOUNTING
AND
WIRING
For
best
operation
of
the
Amplifier,
all
wire
should
be
positioned
neatly.
Refer
to
the
Chassis
Photos
(fold-out
from
Page
38)
which
show
how
a
completed
kit
should
look.
( )
Position
the
chassis
and
control
panel
as
shown
in
Detail
8A.
Secure
the
control
panel
to
the
chassis
with
6-32
x
3/8"
hardware.
NOTE:
The
large
black
hookup
wire
is
quite
similar
to
the
shielded
cable.
Remove
1/4"
of
insulation
from
one
end
of
each
of
these
wires;
then
be sure
you
choose
the
shielded
cable
(with
the
foil
inner
wrap)
for the
next
step.
Also,
do
not
confuse
the
2-conductor
(two
inner leads
and
a
shield)
shielded
cable
with
the
single
conductor
(one
inner
lead
and
a
shield)
shielded
cable.
The
2-conductor
shielded
cable
should
only
be
used
for the
wiring
of
the
foot
switch.
( )
Refer
to
Detail 8B,
and
prepare
the
ends
of
a
10"
length
of
single
conductor
shielded
cable.
PREPARE
EACH
END
AS
SHOWN
1
1/2
1/
4 "
r /1
2"
1,..-
1/4"
SHIELD
LEAD
TAKING
CARE
NOT TO
CUT
THE
VERY
THIN
WIRES
OF
THE
SHIELD
LEAD,
REMOVE
THE
OUTER
INSULATION.
PEEL
OFF
THE
FOIL
AND
STRAIGHTEN
OUT
THE
THIN
WIRES
OF
THE
SHIELD
LEAD.
FOIL
1
SHIELD
LEAD
REMOVE
THE
INNER
INSULATION
AND
TWIST
THE
SMALL
WIRES
OF
THE
SHIELD
LEAD,
APPLY
SMALL
AMOUNTS
OF
SOLDER
TO
THE
END
OF
THE
SHIELD
LEAD
AND THE
INNER LEAD.
SOLDER
Detail
8B
TWIST
AND
SOLDER
