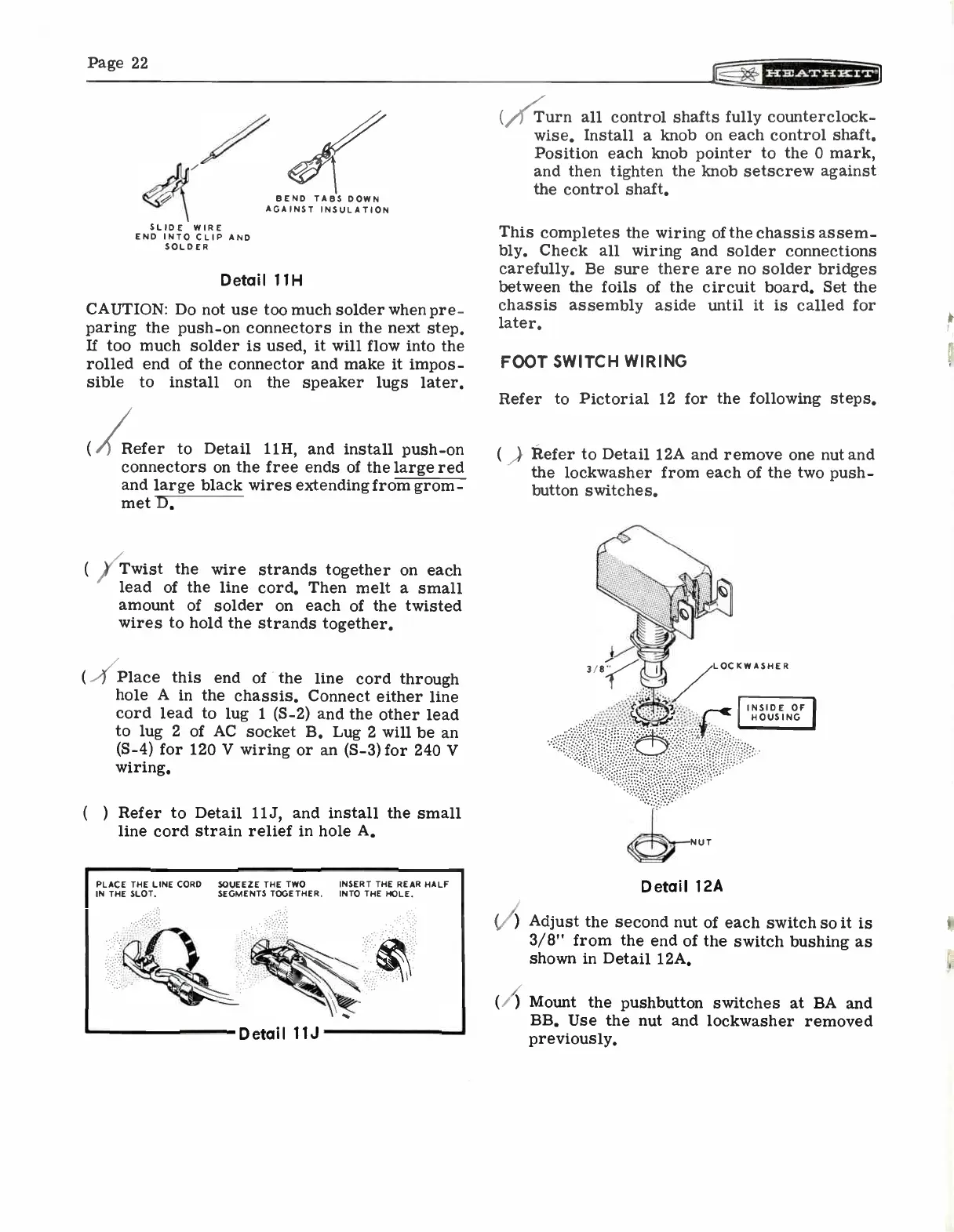

Page
22
BEND
TABS
DOWN
AGAINST
INSULATION
SLIDE
WIRE
END
INTO CLIP
AND
SOLDER
Detail
11H
CAUTION:
Do
not
use
too
much
solder
when
pre-
paring
the
push-on
connectors
in
the
next
step.
If
too
much
solder
is
used,
it
will
flow
into
the
rolled
end
of
the
connector
and
make
it
impos-
sible
to
install
on
the
speaker
lugs
later.
(
/Refer
to
Detail
11H,
and
install
push-on
connectors
on
the
free
ends
of
the
large
red
and
large
black
wires
extending
from
grom-
met
D.
(
)'
Twist
the
wire
strands
together
on
each
lead
of
the
line
cord.
Then
melt
a
small
amount
of
solder
on
each
of
the
twisted
wires
to
hold
the
strands
together.
(A
/
Place
this
end
of
the
line
cord
through
hole
A
in
the
chassis.
Connect
either
line
cord
lead
to
lug
1
(S-2)
and
the
other
lead
to
lug
2
of
AC
socket
B.
Lug
2
will
be an
(S-4)
for
120
V
wiring
or
an
(S-3)
for
240
V
wiring.
( )
Refer
to
Detail
11J,
and
install
the
small
line
cord
strain
relief
in
hole
A.
PLACE
THE
LINE
CORD
SQUEEZE
THE
TWO
INSERT
THE
REAR
HALF
IN
THE
SLOT.
SEGMENTS
TOGETHER.
INTO
THE
HOLE.
Detail
11J
(/(Turn
all
control
shafts
fully
counterclock-
wise.
Install
a
knob
on
each
control
shaft.
Position
each
knob
pointer
to
the
0
mark,
and
then
tighten
the
knob
setscrew
against
the
control
shaft.
This
completes
the
wiring
of
the
chassis
assem-
bly.
Check
all
wiring
and
solder
connections
carefully.
Be
sure
there
are
no
solder
bridges
between
the
foils
of
the
circuit
board.
Set
the
chassis
assembly
aside
until
it
is
called
for
later.
FOOT
SWITCH
WIRING
Refer
to
Pictorial
12
for
the
following
steps.
( )
Refer
to
Detail
12A
and
remove
one
nut
and
the
lockwasher
from
each
of
the
two
push-
button
switches.
3/8"
Detail
12A
NUT
L
OC
K
WA
SH ER
INSIDE
OF
I
HOUSING
V)
Adjust
the
second
nut
of
each
switch
so
it
is
3/8"
from
the
end
of
the
switch
bushing
as
shown
in
Detail
12A.
( )
Mount
the
pushbutton
switches
at
BA
and
BB. Use
the
nut
and
lockwasher
removed
previously.
