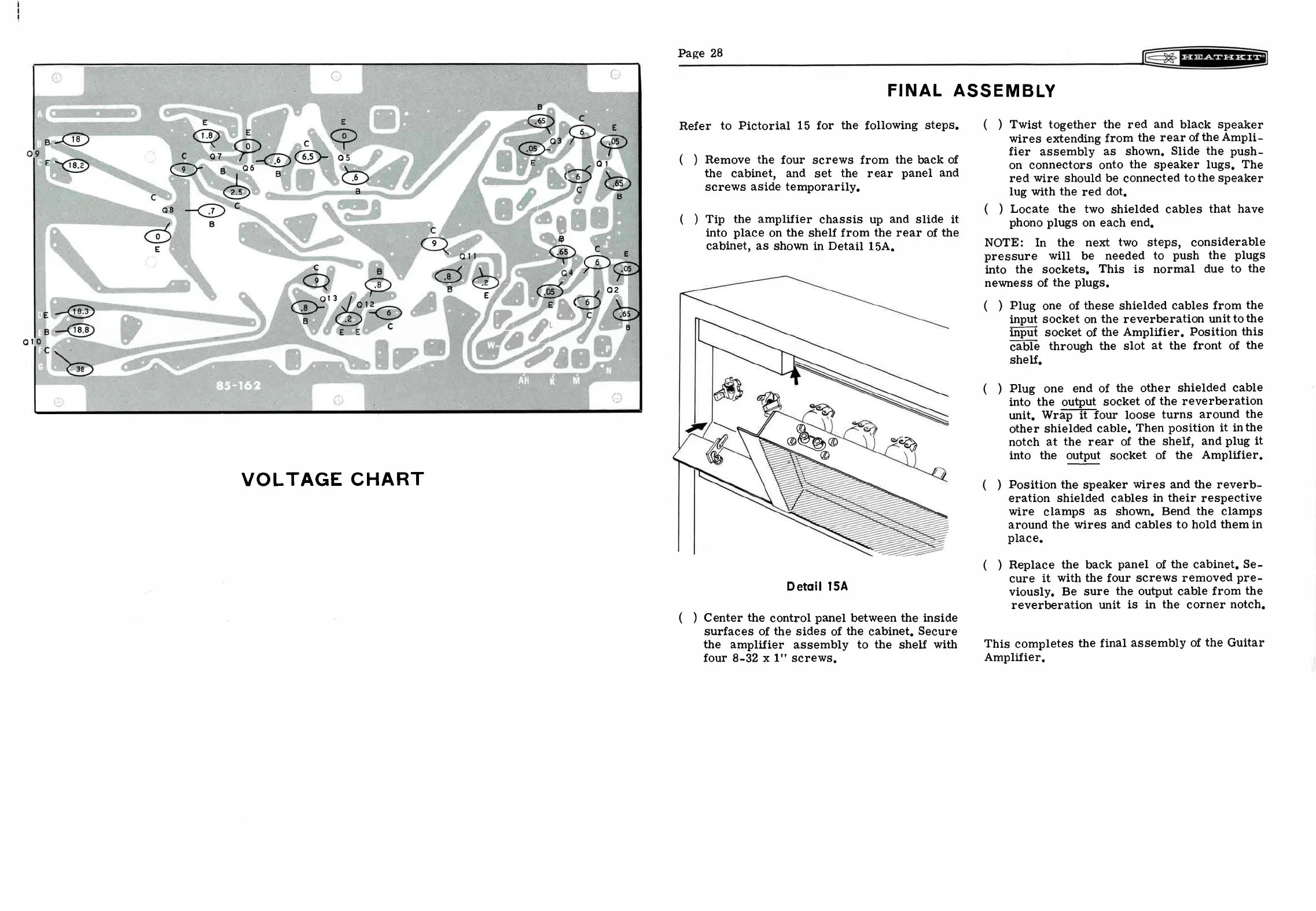

Page
28
VOLTAGE
CHART
FINAL
ASSEMBLY
Refer
to
Pictorial
15
for
the
following
steps.
( )
Remove
the
four
screws
from
the
back
of
the
cabinet,
and
set the
rear
panel
and
screws
aside
temporarily.
( )
Tip
the
amplifier
chassis
up
and
slide
it
into
place
on
the shelf
from
the
rear
of
the
cabinet,
as
shown
in
Detail
15A.
Detail
15A
( )
Center
the
control
panel
between
the
inside
surfaces
of
the
sides
of
the
cabinet.
Secure
the
amplifier
assembly
to
the
shelf
with
four
8-32
x
1"
screws.
( )
( )
Twist
together
the
red
and
black
speaker
wires
extending
from
the
rear
of
the
Ampli-
fier
assembly
as
shown.
Slide
the
push-
on connectors
onto
the
speaker
lugs.
The
red
wire
should
be
connected
to
the
speaker
lug
with
the
red
dot.
Locate
the
two
shielded
cables
that
have
phono
plugs
on
each
end.
NOTE:
In
the
next
two
steps,
considerable
pressure
will
be
needed
to
push
the
plugs
into
the
sockets.
This
is
normal
due
to
the
newness
of
the
plugs.
( )
Plug
one
of
these
shielded
cables
from
the
input
socket
on
the
reverberation
unit
to
the
input
socket
of
the
Amplifier.
Position
this
cable
through
the
slot
at
the
front
of
the
shelf.
( )
Plug
one end
of
the
other
shielded
cable
into
the
output
socket
of
the
reverberation
unit.
Wrap
it
four
loose
turns
around
the
other
shielded
cable.
Then
position
it
in
the
notch
at
the
rear
of
the
shelf,
and
plug
it
into
the output
socket
of
the
Amplifier.
(
)
Position
the
speaker
wires
and
the
reverb-
eration
shielded
cables
in
their
respective
wire
clamps
as
shown.
Bend
the
clamps
around
the
wires
and
cables
to
hold
them
in
place.
( )
Replace
the
back
panel
of
the
cabinet.
Se-
cure
it
with
the
four
screws
removed
pre-
viously.
Be
sure
the
output
cable
from
the
reverberation
unit
is
in
the
corner
notch.
This
completes
the
final
assembly
of
the
Guitar
Amplifier.
