Heatilator A36C - Reference Materials; Chimney Components

Heatilator • A36/42C, A36/42CH • Installers Manual • 4017-262 • Rev D • 10/07/13
35
9

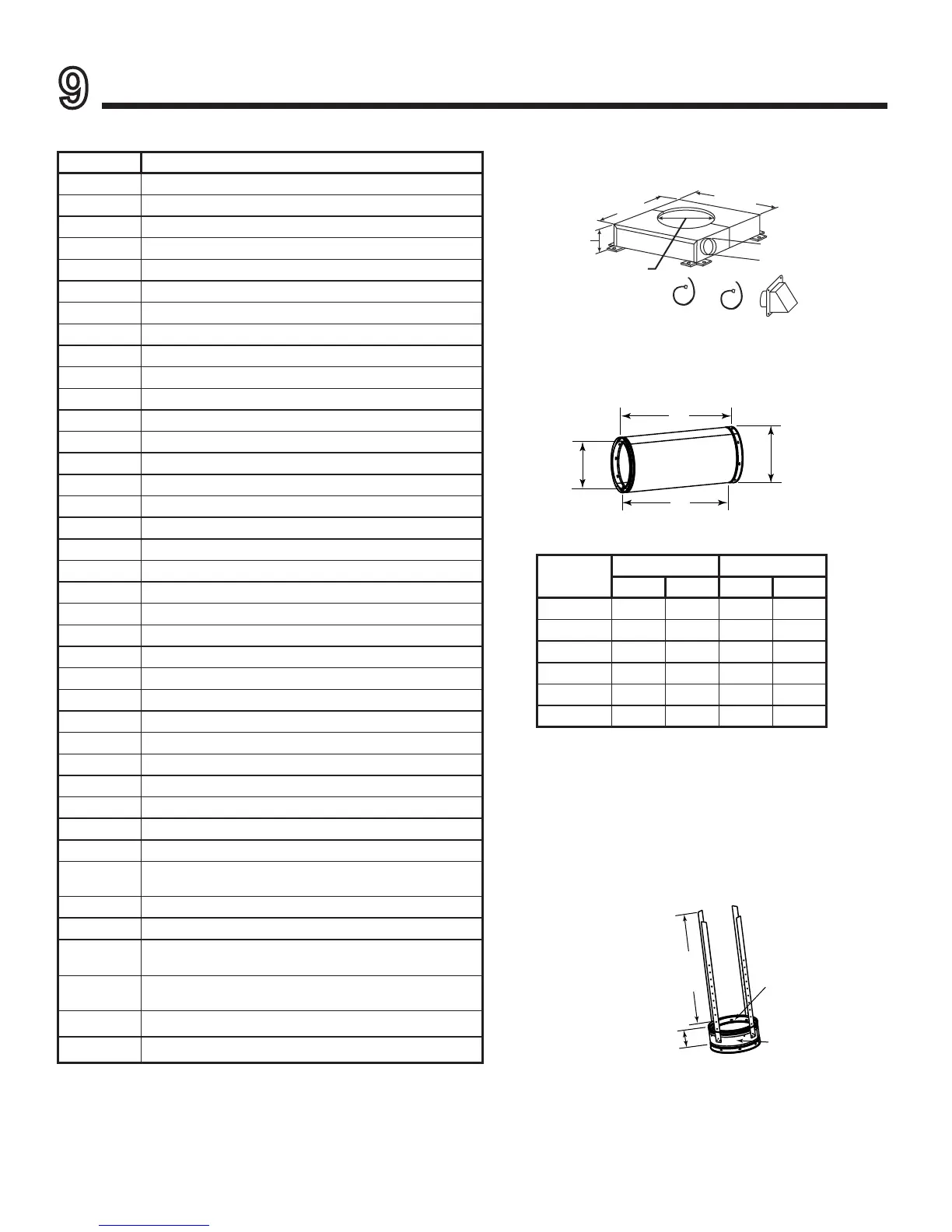

Reference Materials
A. Chimney Components
CAK4A Chimney Air Kit
SL3 Chimney Stabilizer
Chimney Sections
A = Actual Length
B = Effective Length (length of
chimney part after it has
been snapped to another)
8 in.
(203 mm)
10-1/2 in.
(267 mm)
A
B
20-3/4 in.
(527 mm)
Inside
Diameter
8 in.
(203 mm)
Outside
Diameter
10-1/2 in.
(267 mm)
4-3/4 in. (121 mm)
Effective Height
10-1/2 in.
(287 mm)
12 in.
(305 mm)
5-1/4 in.
(133 mm)
4 in. (102 mm)
12 in.
(305 mm)
Catalog # Description
CAK4A ChimneyAirKit
ID4/ID6 InsulatedDuct/OutsideAir
UD4/UD6 UninsulatedDuct/OutsideAir
SL306 ChimneySection-6in.(152mm)long
SL312 ChimneySection-12in.(305mm)long
SL318 ChimneySection-18in.(457mm)long
SL324 ChimneySection-24in.(610mm)long
SL336 ChimneySection-36in.(914mm)long
SL348 ChimneySection-48in.(1219mm)long
SL3 ChimneyStabilizer
SL315 ChimneyOffset/Return-15deg
SL330 ChimneyOffset/Return-30deg
FS338 CeilingFirestop-Straight
FS339 CeilingFirestop-15deg
FS340 CeilingFirestop-30deg
AS8 SL300StraightAtticInsulationShield,24in.(610mm)
JB877 ChimneyJointBand
CB876 ChimneyBracket
RF370 RoofFlashing-Flatto6/12Pitch
RF371 RoofFlashing-6/12to12/12Pitch
TR344 RoundTerminationCap
TR342 RoundTelescopingTerminationCap
ST375 SquareTerminationCap
TV342 TopVentRoundTerminationCap
TS345 SquareTerminationCap
TS345P SquareTerminationCap-Painted
TCT375 TerraCottaTerminationCap
TR-TVK TRTopVentKit
DTO134 ShortOctagonDecorativeCap
DTO146 TallOctagonDecorativeCap
DTS134 ShortSquareDecorativeCap
DTS146 TallSquareDecorativeCap
LDS33 DecorativeShroud-3ftx3ft(.91mx.91m)
LDS46 DecorativeShroud-4ftx6ft(1.22mx1.83m)
LDS-BV DecorativeShroud-26in.x26in.(660mmx660mm)
FieldConstructedShrouds(See“WoodburningTermination
Cap”)
CT-3A Adapter-Maybeusedwiththefollowingcaps
CTSeries
DTSeries
Catalog #
A B
in mm in mm
SL306 6 152 4-3/4 121
SL312 12 305 10-3/4 273
SL318 18 457 16-3/4 425
SL324 24 610 22-3/4 578
SL336 36 914 34-3/4 883
SL348 48 1219 46-3/4 1187
