Framing and Clearances
A. Fireplace Dimensions

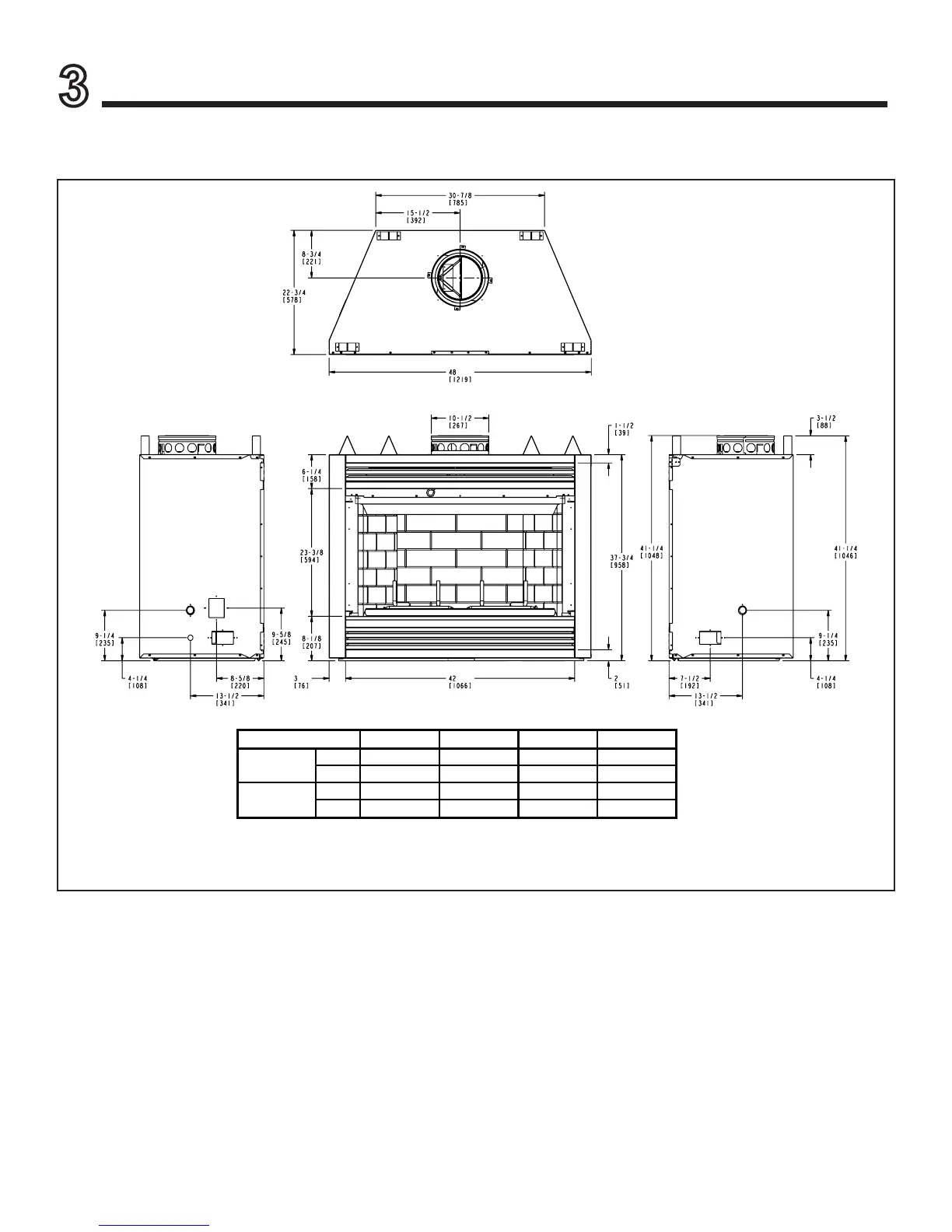

Figure 3.1 Fireplace Dimensions
Model # A B C D
in.
36 42 28 1/4 14 1/8
mm
914 1067 718 359
in.
42 48 30 7/8 15 1/2
mm
1067 1219 784 394
A36
A42
