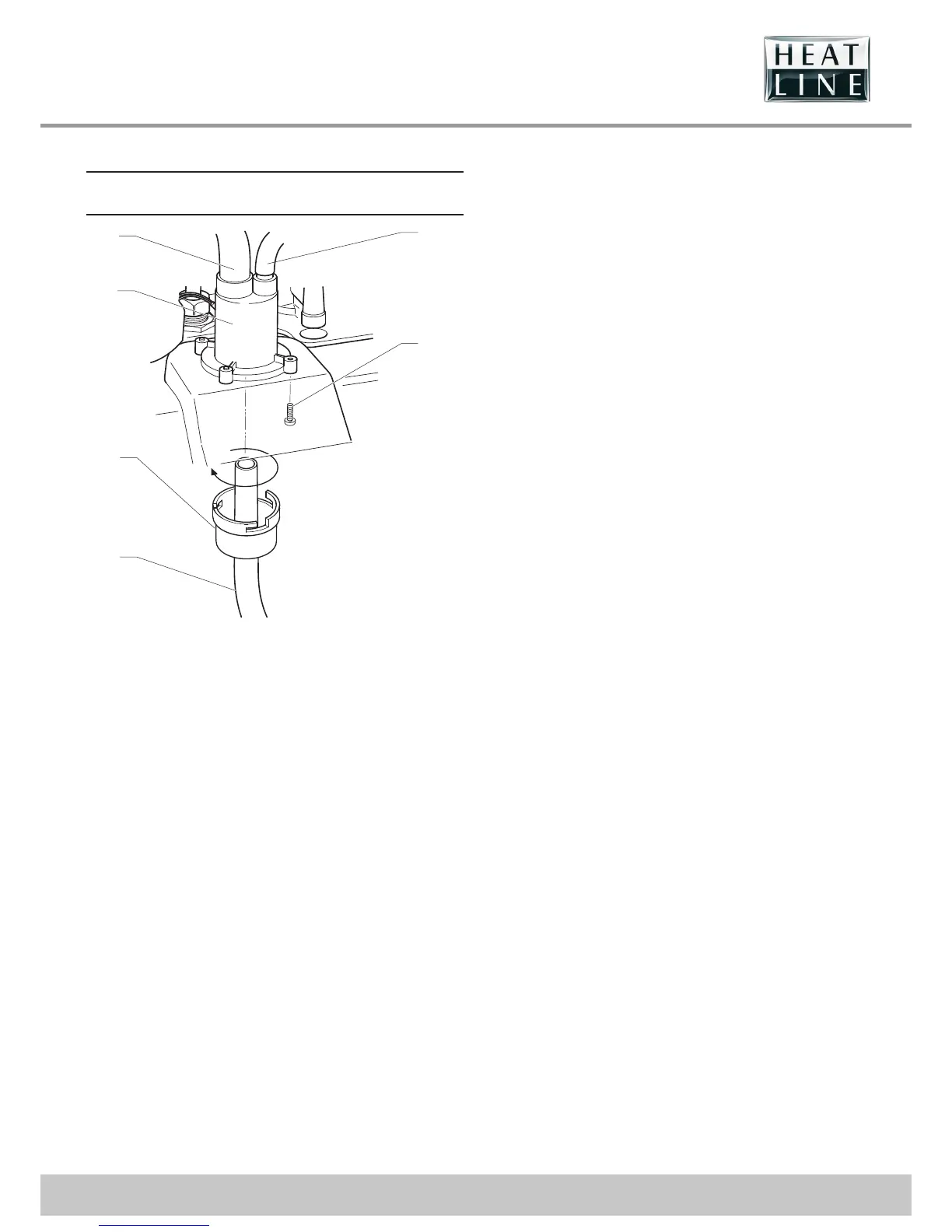

18.8 Condensate trap
a
Warning: condensate is mildly acidic. Use
protective gloves.
6
4
1
2
5
3
Key
1 Condensate outlet
2 Condensate reservoir
3 Condensate drain
4 Rain water collector
5 Condensate trap
6 Condensate retaining screw
• Place a container under the condensate trap (5).
• Disconnect the condensate pipe from the reservoir (1).
• Disconnect the condensation reservoir (2).
• Disconnect the condensate drain (3) and the rain water
collector (4) from the heat exchanger.
The condense trap will contain water, lift taking care not to spill
the water.
• Remove the screws (6) to disconnect the condensate trap (5).
• Clean the hose, the trap and the siphon, remove any
accumulated dirt.
• Reassemble the components, taking care to position the
gaskets correctly.
• Fill the reservoir (2) before assembly.
