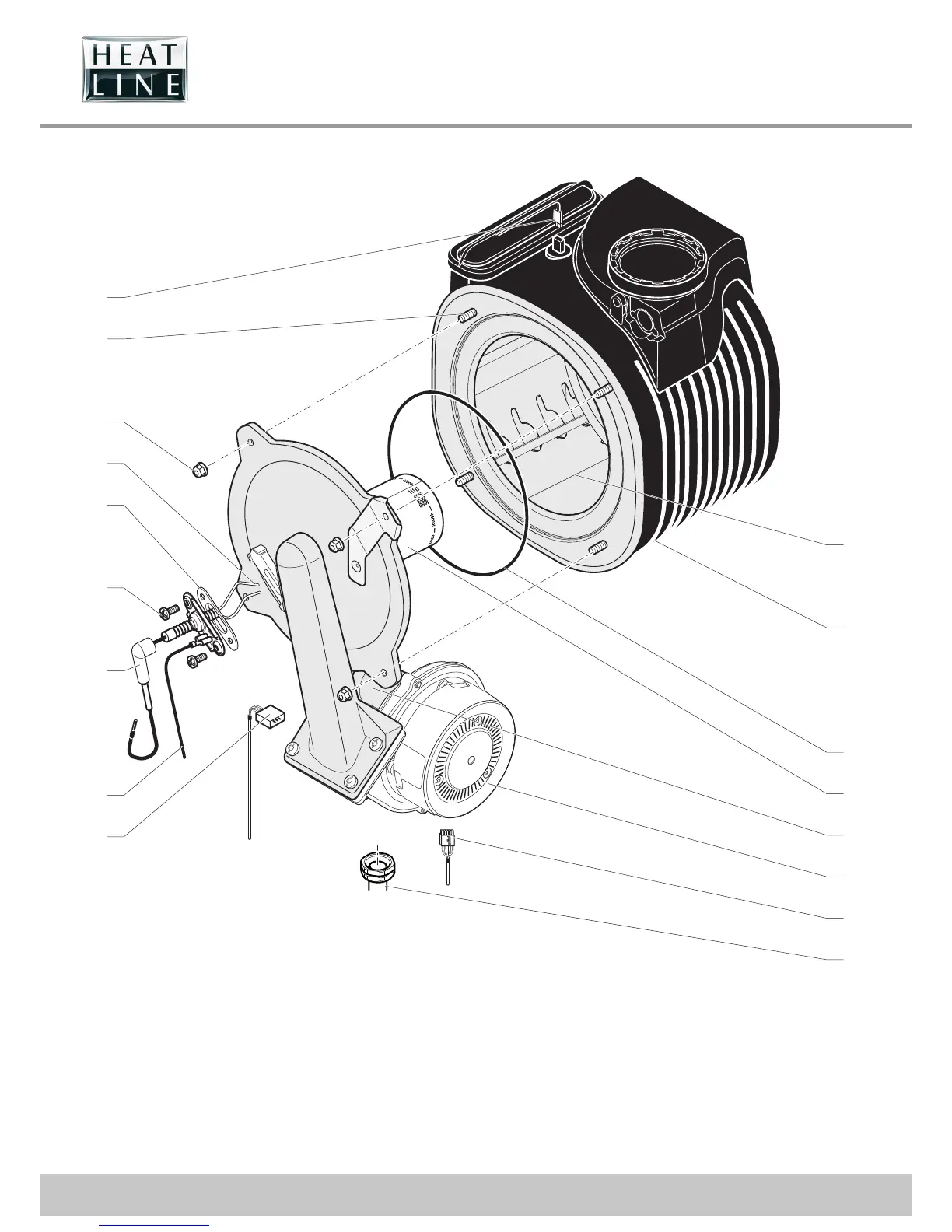

18.9 Combustion block
10
11
12
13
14
15
16
17
1
2
4
3
5
6
7
8
9
Legend
1 Gas valve connection
2 Grounding cable
3 Spark electrode inlet
4 Spark electrode retaining screw.
5 Spark electrode gasket
6 Spark electrode
7 Burner retaining nut
8 Burner retaining screw
9 Thermal fuse connection
10 Coil
11 Heat exchanger
12 Burner door seal
13 Burner
14 Gas valve
15 Fan
16 Fan connection
17 Gas pipe
