Heatline CaprizPlus 28 - 19.5 Combustion Block

- 43 -
Service Call 0844 736 9138, Technical Help (Chargeable) Call 0906 802 0253

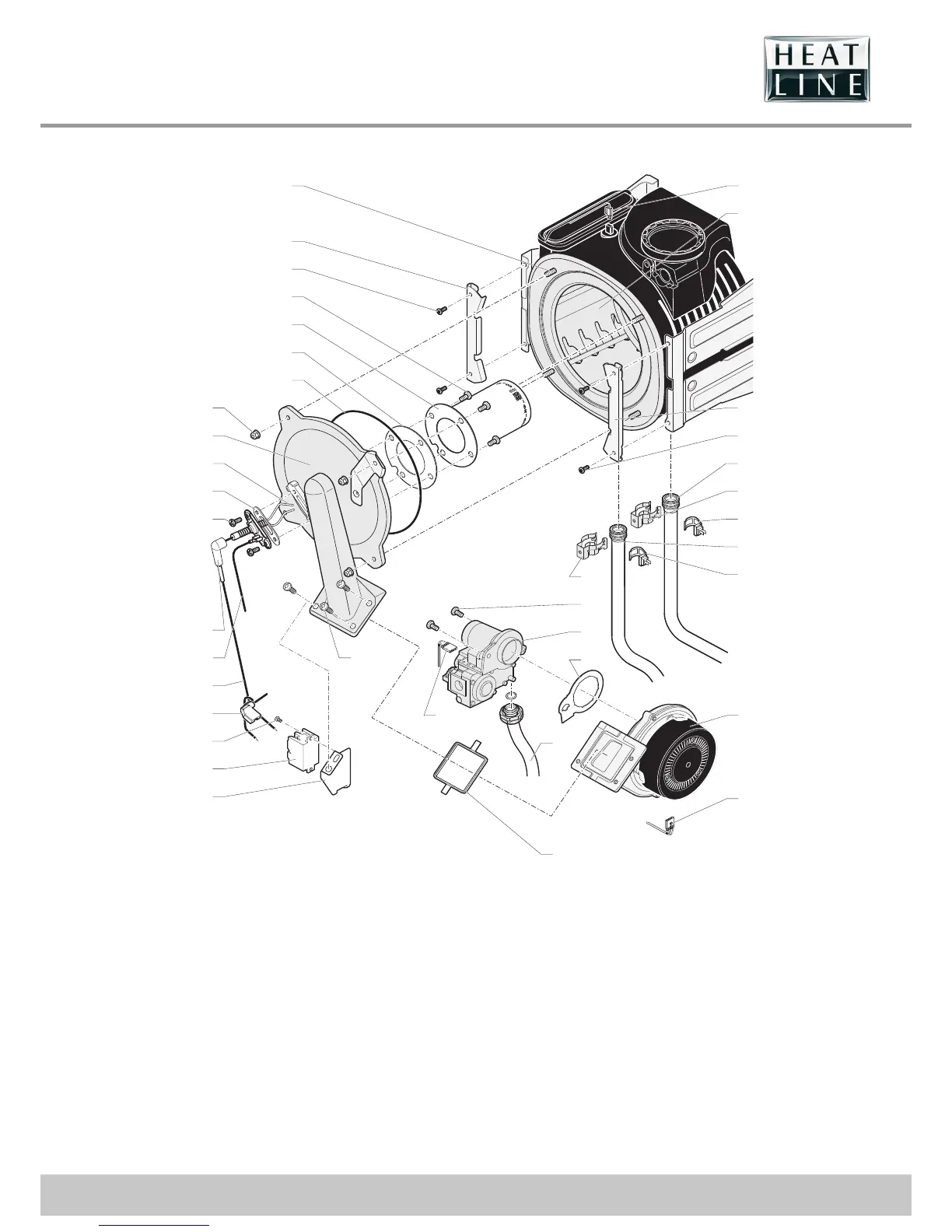

19.5 Combustion block
2019
18
17
16
15
14
13
12
11
21
10
22
9
23
25
24
26
27
28
8
30
29
31
32
7
33
6
5
4
34
3
36
37
38
2
35
1
Legend
1 Igniter unit retaining bracket
2 Igniter unit
3 Igniter unit retaining screw
4 Igniter unit electrical connector
5 Electrode / igniter unit connection cable
6 Earth cable
7 Spark electrode cap
8 Spark electrode retaining screw
9 Spark electrode gasket
10 Spark electrode
11 Combustion burner door assembly
12 Combustion burner door assembly - nut
13 Combustion burner door assembly - gasket
14 Burner gasket
15 Burner
16 Burner retaining screw
17 Heat exchanger retaining screw
18 Heat exchanger retaining bracket
19 Burner gate retaining screw
20 Thermal fuse connection
21 Heat exchanger
22 Heat exchanger retaining bracket
23 Heat exchanger retaining screw
24 Heating return pipe
25 Heating return pipe retaining clip
26 Return heating temperature sensor (blue)
27 Heating  ow pipe
28 Flow heating temperature sensor (red)
29 Heating  ow pipe retaining clip
30 Gas valve retaining screw
31 Gas valve
32 Gas valve gasket
33 Fan
34 Fan electrical connection
35 Fan/burner gasket
36 Gas pipe
37 Gas valve electrical connection
38 Fan retaining screw
